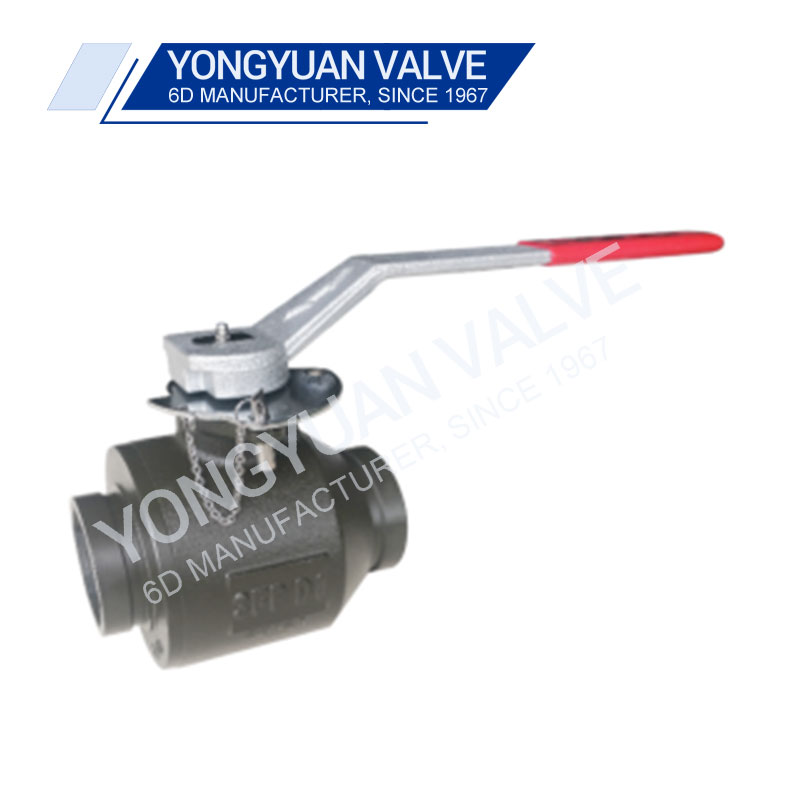

What Are the Principles of a Ball Valve?

A ball valve is a widely used industrial device that controls the flow of liquids or gases by using a rotating ball with a hole in the center. Its simple yet effective design makes it ideal for applications requiring reliable shutoff and precise flow control. Let’s explore the key principles behind how a ball valve functions.

1. Basic Working Principle

A ball valve operates using a spherical disc (the ball) with a hole (bore) through its center. The valve is controlled by rotating the ball 90 degrees to either allow or block the flow of fluid.

- Open Position: When the hole aligns with the pipeline, fluid passes freely.

- Closed Position: When the ball is rotated perpendicular to the pipeline, the flow is completely blocked.

This quick quarter-turn operation makes ball valves highly efficient for on-off control applications.

2. Key Components of a Ball Valve

A typical ball valve consists of the following main components:

- Ball: The rotating element with a bore that controls the flow.

- Body: The outer casing that holds all components together.

- Stem: The shaft that connects the ball to the actuator or handle.

- Seat: Sealing material that ensures a tight closure when the valve is shut.

- Handle/Actuator: Used to rotate the ball for manual or automated control.

3. Sealing Principle

The effectiveness of a ball valve lies in its tight sealing mechanism. Soft materials like PTFE (Teflon), rubber, or other polymers are often used for seats to ensure leak-free operation. Some high-performance ball valves use metal-to-metal sealing for handling extreme temperatures and pressures.

4. Flow Control Mechanism

Ball valves can have different bore designs that impact their flow characteristics:

- Full Bore (Full Port): The hole in the ball matches the pipeline diameter, minimizing flow resistance.

- Reduced Bore (Reduced Port): The hole is smaller than the pipeline, causing slight flow restriction.

- V-Port: The ball has a V-shaped opening, allowing for precise flow control in throttling applications.

5. Types of Ball Valves

Ball valves come in various configurations depending on their design and application:

- Floating Ball Valve: The ball is suspended between the seats and moves slightly to enhance sealing when pressure is applied.

- Trunnion-Mounted Ball Valve: The ball is fixed with additional supports (trunnions), making it suitable for high-pressure applications.

- 3-Way or Multi-Port Ball Valve: Allows for diverting or mixing flow between multiple ports.

- Vented Ball Valve: Designed to release trapped pressure in a closed system.

6. Advantages of Ball Valves

- Quick and Easy Operation: Only requires a quarter-turn to open or close.

- Excellent Sealing: Provides tight shutoff, preventing leaks.

- Durability: Withstands high pressures and temperatures.

- Low Maintenance: Simple design with fewer components prone to wear.

Would you like more details on a specific type of ball valve? Let me know!
