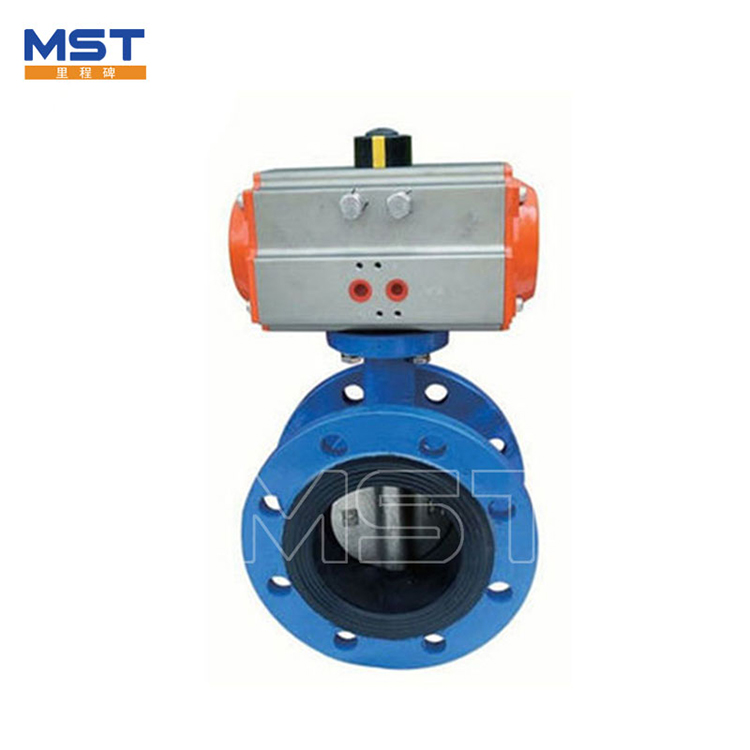

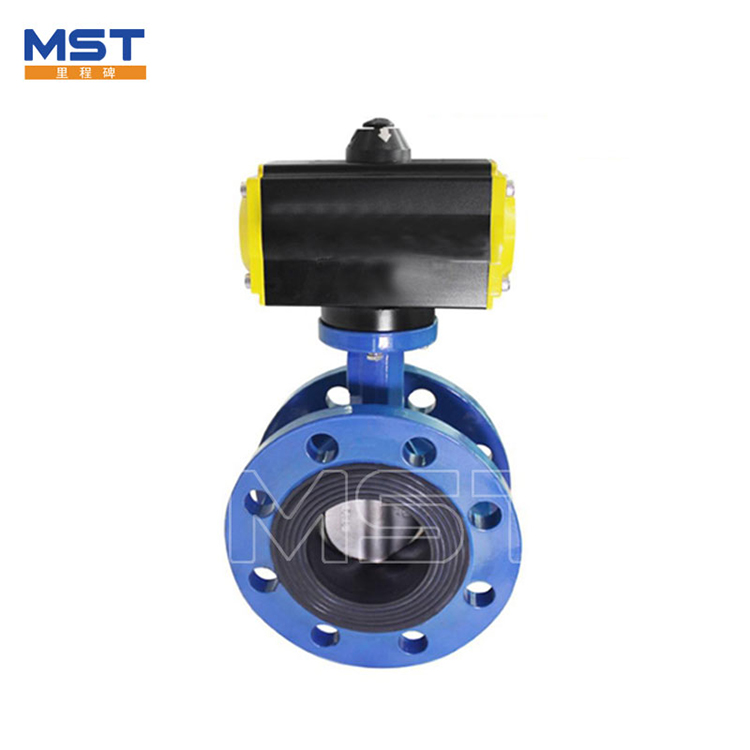

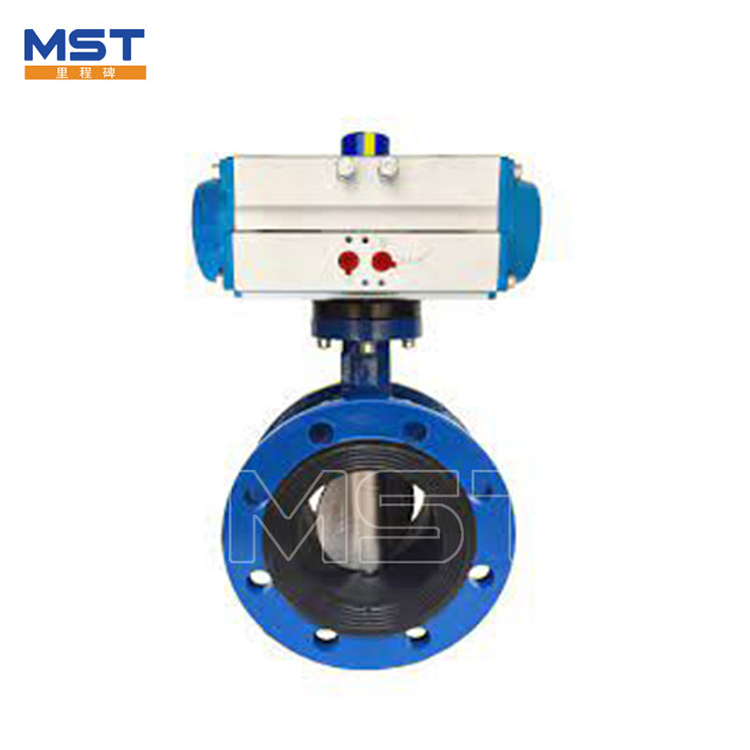

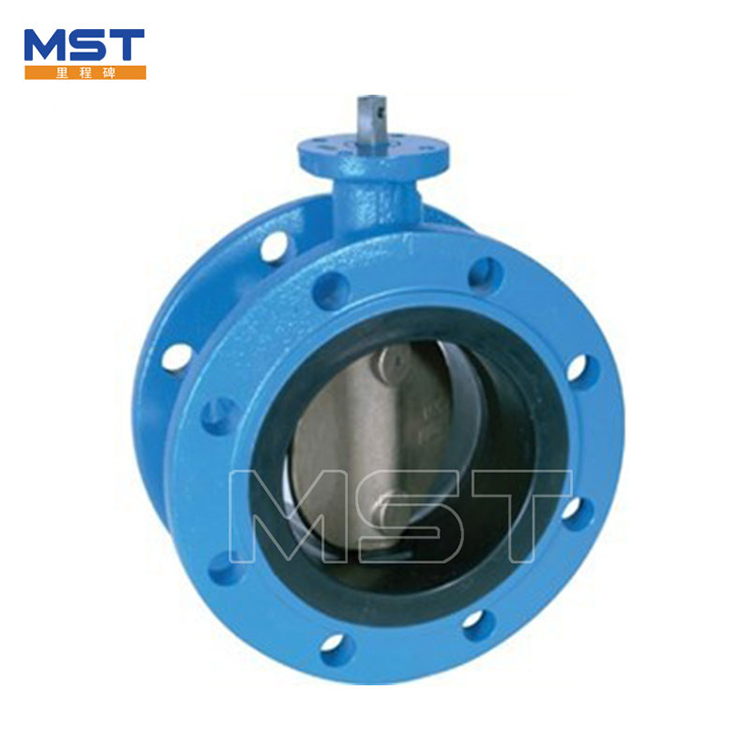

Pneumatic Actuator Flange Butterfly Valve

The plate of pneumatic actuator flange butterfly valve can be opened and closed by rotating 90 degrees. The operation is simple and the airtightness is good.

Send Inquiry

Product Description

Buy Pneumatic Actuator Flange Butterfly Valve which Can be Customized From Our Factory in China with Cheap Price
1.Introduction of Pneumatic Actuator Flange Butterfly Valve

The plate of pneumatic actuator flange butterfly valve can be opened and closed by rotating 90 degrees. The operation is simple and the airtightness is good. Due to the equal medium action of the disc wrench on both sides of the valve shaft, the torque direction is opposite, so the opening and closing torque is small, and good sealing can be achieved under low pressure; Pneumatic actuator flange butterfly valve is made of NBR and fluororubber, which is a kind of pneumatic flange soft sealing butterfly valve. Among them, the hard seal butterfly valve is a multi-layer metal hard seal, which has the advantages of elastic seal and excellent sealing performance at low temperature. Therefore, pneumatic actuator flange butterfly valve is mainly used in pipelines with corrosive media such as metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage.

Type of Valve
Pneumatic Actuator Flange Butterfly Valve
DN
DN50~DN1200
PN(MPa)
0.6, 1.6, 2.5
Design Temperature Range
-10℃~120℃
Applicable Medium
Water, oil, gas, and various corrosion medium
Connection type:
Flanged
Actuator type
Pneumatic Actuator
Sealing
Metal Hard Seal, Soft seal


2.Main Parts Material of Pneumatic Actuator Flange Butterfly Valve

1) Valve body: cast iron, cast steel, stainless steel, chromium molybdenum steel, alloy steel;
2) Plate: cast steel, alloy steel {hard chromium plating}, stainless steel, chromium molybdenum steel
3) Sealing ring: rubber, PTFE, ppl, stainless steel, polygrease, anti-wear materials;
4) Stem: 2Cr13, 1Cr13 stainless steel, chrome molybdenum steel
5) Packing: polytetrafluoroethylene, flexible graphite;



3.The Performance Characteristics of Pneumatic Actuator Flange Butterfly Valve are As Follows:

1)Gear type double piston, large output torque and small volume;
2)The cylinder is made of aluminum alloy with light weight and beautiful appearance;
3)Manual operation mechanism can be installed at the top and bottom
4)Rack connection, adjustable opening angle, rated flow
5)The actuator can be selected with live signal feedback indication and accessories to realize automatic operation
6)Is05211 standard connection provides convenience for product installation and replacement;
7)The adjustable pitch screw at both ends can make the standard product at 0 ° And 90 ° There are positive and negative 4 ° The adjustable range makes it synchronous with the accuracy of the valve.


4.Application of Pneumatic Actuator Flange Butterfly Valve


5.About MST


6.Welcome to Contact Us

Welcome to vist our website about more valve, and please feel free to contact us if you have any questions.
Sale manager: Ranee Liang
Email: ranee@milestonevalve.com


7. FAQ
