Bulk Resilient Seal Gate Valve From Our Factory with Price List in China

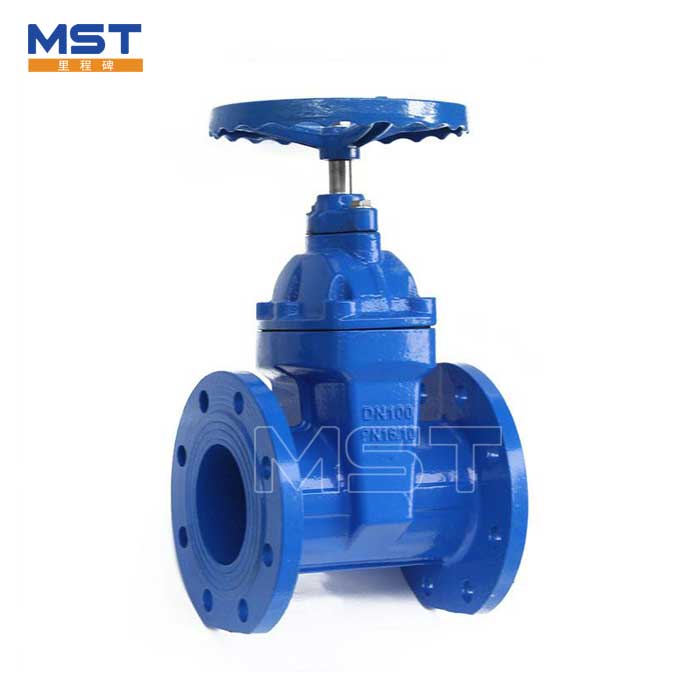

1.Introduction of Resilient Seal Gate Valve
Tianjin Milestone Pump & Valve Co., Ltd. is a professional manufacturing enterprise specializing in the design, development, production, sales and service of pumps and valves; various products produced include butterfly valves, gate valves, ball valves, etc., and the products are exported to Southeast Asia, It is widely used in water supply and drainage, electric power, petrochemical, metallurgical and other industries in the Middle East, Europe and the United States, and has received positive feedback from users. The Resilient seal gate valve produced by MST is a kind of gate valve, which is widely used in various industrial fields.
2. Technical Parameters of Resilient Seal Gate Valve
Type of Valve |
Resilient Seal Gate Valve |
DN |
DN50~DN1600 |
PN(MPa) |
1.0~2.5Mpa, 4.0~16Mpa, |
Design Temperature Range |
-15℃~425℃ |
Applicable Medium |
Water, oil, gas, and various corrosion medium |
Connection type: |
Flanged |
Actuator type |
Manual drive, Pneumatic, Hydraulic or electric Actuator |
Spare Parts |
Material |
Body 、Bonnet、Disc |
Cast iron, Ductile Iron, Cast steel, Stainless Steel, |
Stem |
Stainless steel |
Sealing surface |
Bronze, stainless steel, hard alloy NBR, epdm |
Sealing Shim |
Enhanced flexible graphite, 1Cr13/flexible graphite |
Packing | O-ring, flexible graphite |
3.The Display Plate of the Opening and Closing Degree of the Resilient Seal Gate Valve
1) The scale line of the opening and closing degree of the Resilient seal gate valve should be cast on the gearbox cover or on the shell of the display plate after changing the direction, all facing the ground, and the scale line should be painted with phosphor to show the eye-catching;
2) Resilient seal gate valve indicates that the material of the disc needle can be made of stainless steel plate under good handling conditions, otherwise it is painted steel plate, do not use aluminum skin;
3) Resilient seal gate valve indicator disc needle is eye-catching and securely fixed. Once the opening and closing adjustment is accurate, it should be confirmed by rivets.
4) If the Resilient seal gate valve is buried deeply, and the distance between the operation organization and the display plate is ≥1.5m from the ground, an extension rod facility should be provided and it should be firmly fixed so that people can investigate and operate from the ground. In other words, the opening and closing operations of valves in the pipe network are not suitable for downhole operations.
4. Packaging and Delivery
5. FAQ
1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
