Why Should You Choose a Lug Butterfly Valve for Your Industrial Applications?

In the world of fluid control, valves are at the heart of every industrial system. They determine how well pipelines function, how safely processes run, and how efficiently industries save energy and resources. Among the many types of valves, the Lug Butterfly Valve stands out as a versatile, cost-effective, and reliable solution for both medium and large-scale operations. Its unique design and robust performance make it suitable for water supply, wastewater treatment, chemical industries, power plants, and HVAC systems.

This article takes a detailed look at the working principles, specifications, benefits, and applications of the Lug Butterfly Valve, while also highlighting why so many companies, including those partnering with Tianjin Milestone Valve Company, prefer this type of valve in their pipelines.

What Is a Lug Butterfly Valve?

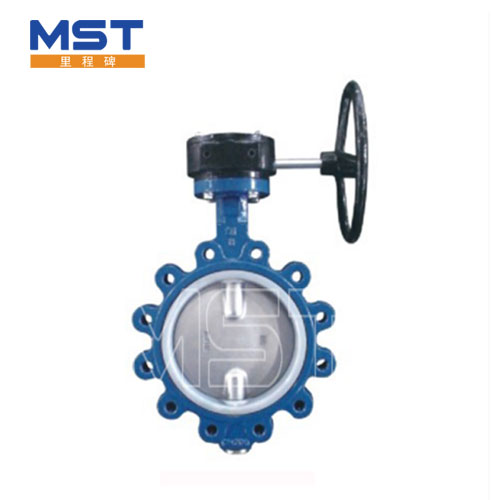

A Lug Butterfly Valve is a quarter-turn valve designed to regulate or isolate fluid flow within pipelines. It is distinguished by its "lug" design, which features threaded inserts on both sides of the valve body. This construction allows the valve to be bolted directly to flanges, enabling easy installation and removal without disturbing the entire piping system.

This feature makes the Lug Butterfly Valve highly practical for systems requiring frequent maintenance, where one side of the pipeline may need to be disconnected without affecting the other.

Key Functions and Working Principle

The working principle of a Lug Butterfly Valve is straightforward yet effective:

• It operates with a quarter-turn movement.

• A circular disc, positioned in the center of the pipe, rotates around a vertical axis to control flow.

• When the handle or actuator is turned 90 degrees, the disc either fully opens or closes the passage.

• The valve can also be set to intermediate positions, allowing precise flow regulation.

This design minimizes resistance, reduces pressure drop, and delivers reliable sealing when paired with high-quality elastomer seats.

Product Parameters of Lug Butterfly Valve

Below are the general parameters that showcase the technical capabilities of a standard Lug Butterfly Valve:

Main Specifications

• Size Range: DN50 – DN1200 (2" – 48")

• Pressure Rating: PN10, PN16, ANSI 150

• Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel

• Disc Material: Ductile Iron, Stainless Steel, Aluminum Bronze, Nylon-coated Disc

• Seat Material: EPDM, NBR, PTFE, Viton

• Connection Type: Lugged type with threaded inserts

• Operation Method: Manual Lever, Gearbox, Electric Actuator, Pneumatic Actuator

• Temperature Range: -20°C to +200°C (depending on seat material)

• Application: Water, Oil, Gas, Slurry, Chemical Fluids

Technical Parameter Table

Advantages of Lug Butterfly Valve

1. Flexible Installation – Can be installed at the end of a pipeline without requiring downstream piping.

2. Easy Maintenance – Allows one side of the system to be serviced without shutting down the entire line.

3. Cost-Effective – Lighter and more compact than gate or globe valves, reducing both material and installation costs.

4. Durability – With materials like ductile iron and stainless steel, the valve withstands pressure, temperature fluctuations, and corrosive environments.

5. Tight Sealing – Advanced seat materials provide bubble-tight shutoff, even under challenging conditions.

6. Versatility – Suitable for clean water, wastewater, oil, gas, and mild chemicals.

Applications of Lug Butterfly Valve

The Lug Butterfly Valve has extensive applications across different industries:

• Water Supply and Wastewater Treatment – Provides reliable shutoff and control in municipal water and sewage systems.

• HVAC Systems – Used for regulating chilled water and hot water pipelines.

• Chemical Industry – Handles mild corrosive fluids due to PTFE and Viton seating.

• Power Plants – Plays a role in cooling water circulation and auxiliary services.

• Marine Industry – Lightweight construction makes it suitable for onboard systems.

The versatility of this valve makes it one of the most commonly specified products by engineers and project managers worldwide.

Comparison with Other Valve Types

FAQ about Lug Butterfly Valve

Q1: What makes a Lug Butterfly Valve different from a Wafer Butterfly Valve?
A Lug Butterfly Valve has threaded inserts (lugs) that allow the valve to be bolted directly to flanges, enabling one side of the piping to be disconnected without disturbing the other. A Wafer type, in contrast, requires the entire line to be shut down before removal.

Q2: Can a Lug Butterfly Valve be used for high-pressure applications?
Generally, Lug Butterfly Valves are designed for medium-pressure systems (PN10–PN16 or ANSI 150). For higher pressures, specialized materials and reinforced designs may be required, but in most industrial pipelines, their pressure handling is sufficient.

Q3: How does the seat material affect the performance of a Lug Butterfly Valve?
The seat material directly impacts temperature resistance, sealing properties, and compatibility with media. For instance, EPDM is ideal for water, PTFE is preferred for chemicals, and Viton works well with higher temperatures. Choosing the correct seat ensures long-term reliability.

Q4: Why should I choose Tianjin Milestone Valve Company for Lug Butterfly Valves?
Tianjin Milestone Valve Company has years of expertise in valve manufacturing, offering robust designs, premium materials, and customizable options. Their Lug Butterfly Valves are widely used in municipal, industrial, and marine projects, proving both durability and efficiency.

Conclusion

The Lug Butterfly Valve combines efficiency, durability, and practicality, making it an indispensable choice for modern industrial systems. Its ease of installation, ability to isolate one side of the line, and cost-effective design all contribute to its growing demand in global markets.

If you are considering a reliable solution for your pipeline systems, investing in high-quality valves from Tianjin Milestone Valve Company ensures both performance and long-term value.

For inquiries, technical consultations, or bulk orders, please feel free to contact Tianjin Milestone Valve Company – a trusted name in valve manufacturing and supply.
