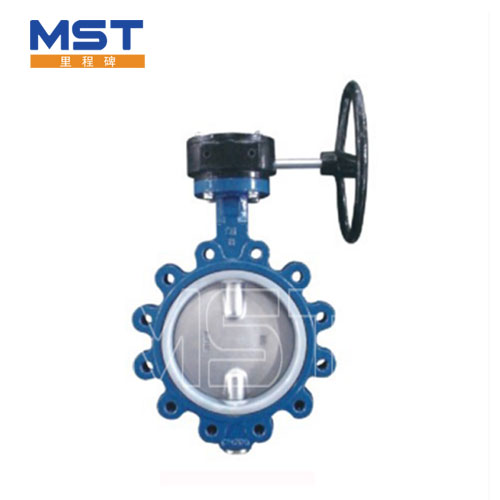

  • Lug Butterfly Valve - 0 Lug Butterfly Valve - 0

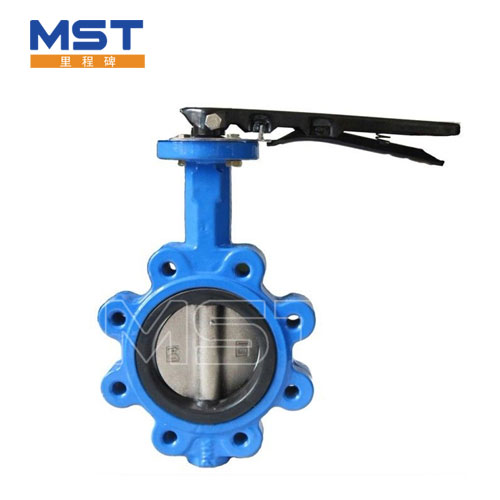

  • Lug Butterfly Valve - 1 Lug Butterfly Valve - 1

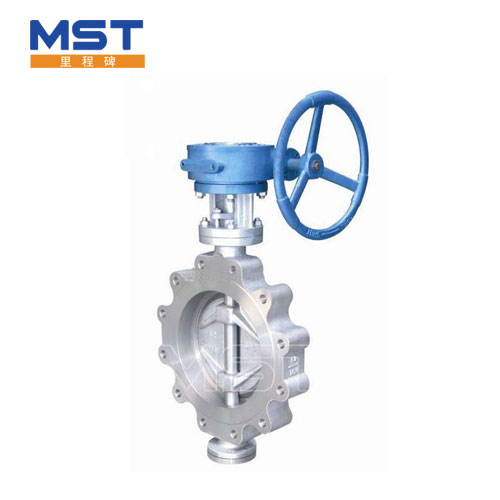

  • Lug Butterfly Valve - 2 Lug Butterfly Valve - 2

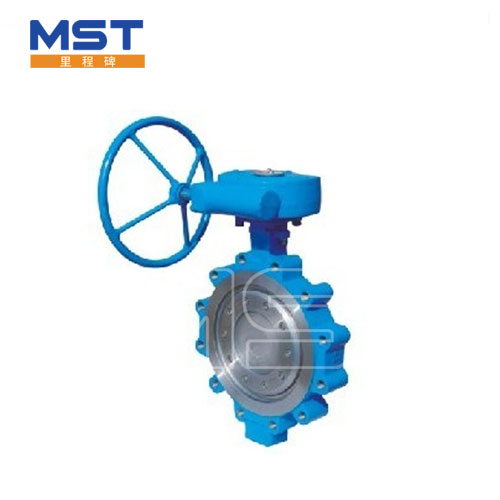

  • Lug Butterfly Valve - 3 Lug Butterfly Valve - 3

Lug Butterfly Valve

The butterfly plate of the lug butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0-90 degrees, which can play the role of flow regulation. When the butterfly plate rotates to 90 degrees, the valve reaches the maximum opening, easy to operate.

Send Inquiry

Product Description
China Lug Butterfly Valve Manufacturers, Suppliers and Factory with Cheap Price

1.Introduction of Lug Butterfly Valve

The butterfly plate of the lug butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0-90 degrees, which can play the role of flow regulation. When the butterfly plate rotates to 90 degrees, the valve reaches the maximum opening, easy to operate.
The lug butterfly valve has good fluid control characteristics. When the lug butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has good flow control characteristics.


2.Specification of the Lug butterfly valve

Type of Valve Lug Butterfly Valve
DN DN40~DN2000
PN(MPa) 0.6~10.0
Design Temperature Range ≤80℃
Applicable Medium Petroleum, gas, chemical industry, water treatment, etc
Construction type Center line type, single eccentricity, double eccentricity and triple eccentricity
Connection type: Flang and lug
Actuator type Manual drive, Pneumatic,Hydraulic or electric Actuator
Sealing Metal Hard Seal, Soft seal

Materal of the lug butterfly valve

Spare Parts Material
Body WCB、304、316、316SS、CF8M
Disc WCB、304、316、316SS、CF8M
Stem  Stainless Steel
Packing Flexible graphite, fluoroplastics
Sealing Rubber, PTFE, stainless steel, cemented carbide

3.Advantage of the lug butterfly valve

1. When the lug butterfly valve is installed with the pipeline, the flanges on both sides are installed with bolts respectively, so that the valve body and the sealing surface of the valve body are not squeezed by the bolts, which is beneficial to the sealing life,
2. The lug can be easily installed in the discharge position.
3. The elastic seal is produced by torque.
4. The ingenious wedge design enables the valve to have the automatic sealing function of closing tighter and tighter, with compensation and zero leakage between the sealing surfaces.
5. Small volume, light weight, light operation and easy installation.
6. Lug butterfly valve can be equipped with pneumatic, electric, hydraulic and manual devices to meet the needs of remote control and program control.
7.The material of replacement parts can be applied to all kinds of media, and can be used for lining anti-corrosion (F46, gxpp, Po, etc.)


4.The details of the lug butterly valve.

Lug Butterfly Valve

Lug Butterfly Valve

Lug Butterfly Valve




5.Application of lug butterfly Valve

MST Valve Co., Ltd. is a professional supplier of industrial valve, such as Butterfly valve, Ball valve, Check Valve and Gate valve.
Dedicated to strict quality control and thoughtful customer service, our experienced stall member are always available to discuss your requirements and ensure full customer satisfaction.
We have hydraulic test for every single piece of valves, life test for new developed valve under certain working pressure and temperature, which ensure reliable quality of each piece of valve.
With large stock of valve parts, we may delivery the valves in a very short time.
As one of OEM manufacturers of industrial valve, we provide OEM service and accept customized order as well.
Trust, quality and value, your partner in success.
We passed CE , API, ISO certification.


6.Packaging and Delivery


7. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997


8. Contact Information
