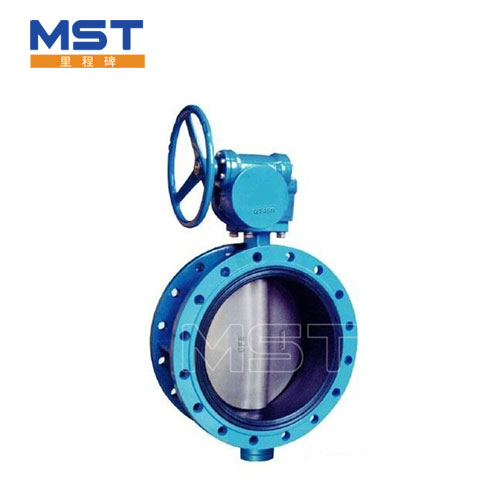

  • Eccentric Flanged Butterfly Valve - 0 Eccentric Flanged Butterfly Valve - 0

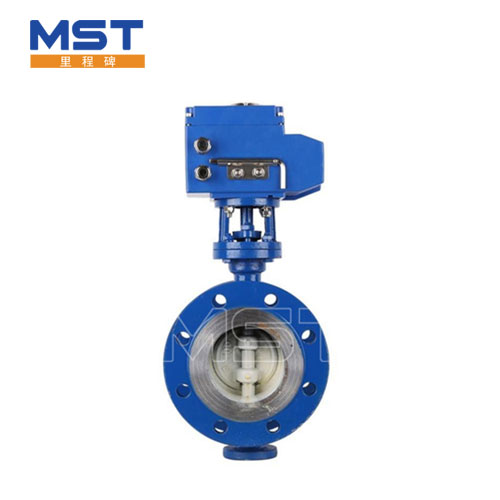

  • Eccentric Flanged Butterfly Valve - 1 Eccentric Flanged Butterfly Valve - 1

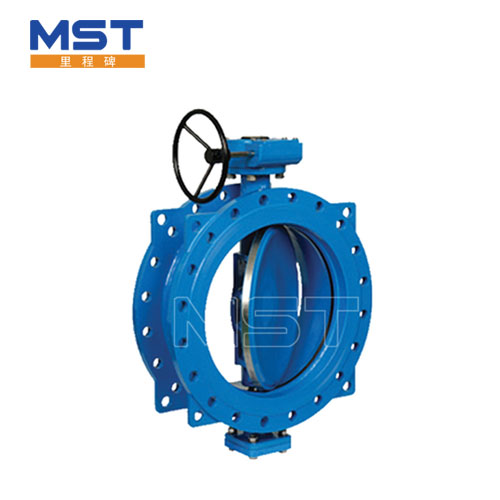

  • Eccentric Flanged Butterfly Valve - 2 Eccentric Flanged Butterfly Valve - 2

Eccentric Flanged Butterfly Valve

The flanged butterfly valve whose stem axis deviates from the center of the disc and the center of the body at the same time, and the sealing pair is oblique cone is called Eccentric Flanged Butterfly Valve. The Eccentric Flanged Butterfly Valve produced by Milestone Valve Company has a double eccentric flange butterfly valve and a triple eccentric flange butterfly valve. Compared with ordinary butterfly valves, the Eccentric Flanged Butterfly Valve has an eccentric structure design. The sealing surface is instantly separated when the valve is opened and closed, reducing friction. Extend the service life. It can be used in petroleum, chemical, water supply and drainage, metallurgy, pharmaceutical and other industries, and can be applied to a variety of corrosive and non-corrosive gases, liquids, and fluid-filled pipelines.

Send Inquiry

Product Description
Buy Eccentric Flanged Butterfly Valve Manufacturers and Suppliers with the Best Price

1.Introduction of Eccentric Flanged Butterfly Valve

The flanged butterfly valve whose stem axis deviates from the center of the disc and the center of the body at the same time, and the sealing pair is oblique cone is called Eccentric Flanged Butterfly Valve. The Eccentric Flanged Butterfly Valve produced by Milestone Valve Company has a double eccentric flange butterfly valve and a triple eccentric flange butterfly valve. Compared with ordinary butterfly valves, the Eccentric Flanged Butterfly Valve has an eccentric structure design. The sealing surface is instantly separated when the valve is opened and closed, reducing friction. Extend the service life. It can be used in petroleum, chemical, water supply and drainage, metallurgy, pharmaceutical and other industries, and can be applied to a variety of corrosive and non-corrosive gases, liquids, and fluid-filled pipelines.

Eccentric Flanged Butterfly Valve


2.Technical parameters of Eccentric Flanged Butterfly Valve:

Type of Valve Eccentric Flanged Butterfly Valve
DN DN100~DN4000
PN(MPa) 0.6~1.6
Design Temperature Range -10℃~120℃
Applicable Medium Water, oil, gas, and various corrosion medium
Connection type: Flanged
Actuator type Manual drive, Pneumatic,Hydraulic or electric Actuator
Structure Double eccentric, Three eccentric
Sealing Metal Hard Seal, Soft seal
Spare Parts Material
Body Gray Iron, Ductile Iron, Al-bronze, Stainless Steel, Carbon steel
Disc Ductile iron, Stainless Steel, Al-bronze
Shaft Cast Iron, Stainless Steel
Seat Rubber, stainless steel, stellite
Stem Stainless steel, duplex steel
Sealing O-ring, NBR, EPDM, FKM

3.Features of Eccentric Flanged Butterfly Valve:

1) Eccentric Flanged Butterfly Valve has simple structure, small size, short structure length, small size and light weight;
2) When the Eccentric Flanged Butterfly Valve is fully opened, the effective flow area of the valve seat channel is large, and the fluid resistance is small;
3) The opening and closing torque of the Eccentric Flanged Butterfly Valve is relatively small. Because the disc plates on both sides of the rotating shaft are basically the same under the action of the medium, the direction of the torque generated is opposite, so the opening and closing is more labor-saving;
4) The Eccentric Flanged Butterfly Valve is flexible and labor-saving in operation, and can choose manual, electric, pneumatic, and hydraulic modes;

Eccentric Flanged Butterfly Valve


4.Advantages of Eccentric Flanged Butterfly Valve double eccentricity and triple eccentricity:

1) Double eccentric flange butterfly valve: currently the most widely used double eccentric flange butterfly valve. Double eccentricity enables the butterfly plate to leave the valve seat immediately after the valve is opened, which reduces the opening resistance, reduces wear and improves the life of the valve seat.
2) Triple eccentric butterfly valve: The so-called third eccentricity means that the shape of the sealing pair is not a positive cone, but an oblique cone, which has a better sealing effect and can be used in the construction of hard-sealed large municipal pipelines.


5.Application of Eccentric Flanged Butterfly Valve:


6.Packaging and Delivery


7. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997


8. Contact Information
