2pc High Performance Ball Valve

Durable In the 2pc high performance ball valve structure Manufacturers, Suppliers and Factory with High Quality

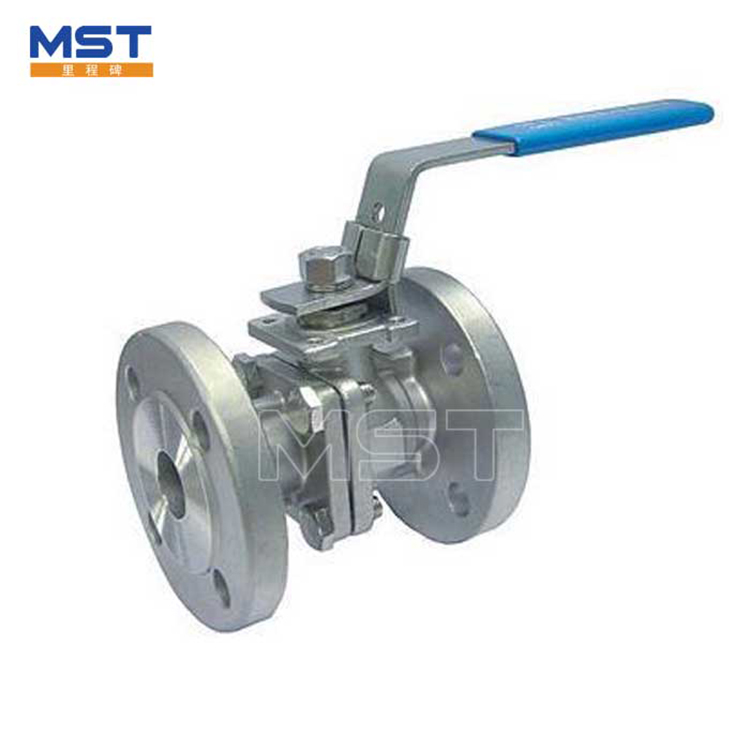

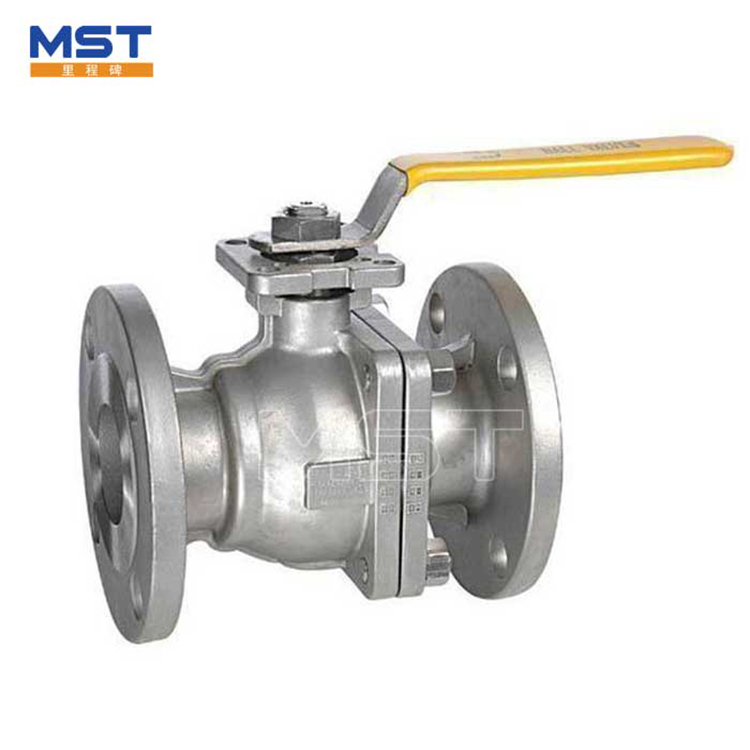

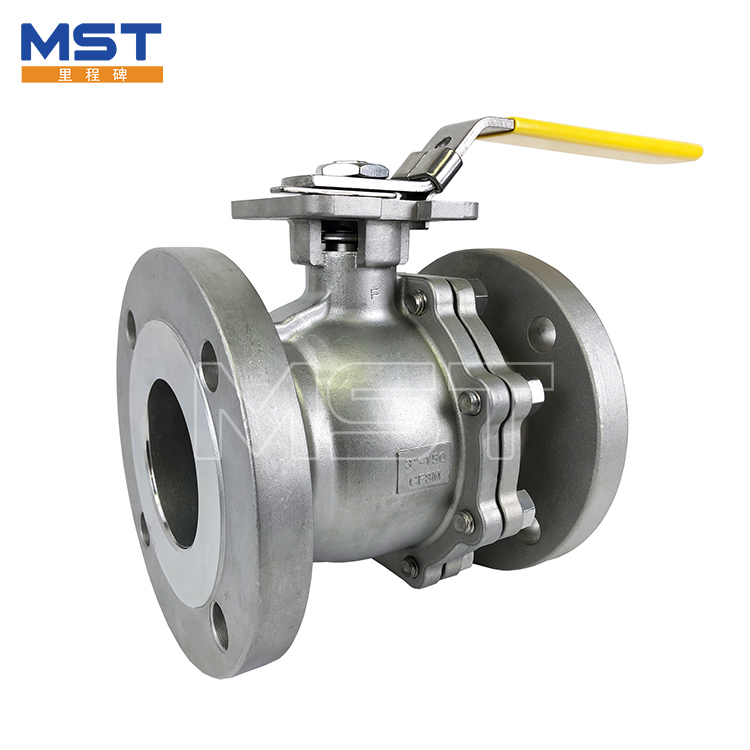

1.Introduction of 2pc High Performance Ball Valve

In the 2pc high performance ball valve structure, the flange is connected by bolts, and the seal is made of reinforced polytetrafluoroethylene inlaid into the stainless steel ring. There is no spring at the back of the steel ring to ensure that the valve seat is close to the ball and keep the seal. Full diameter: the flow hole diameter of the valve is consistent with the inner diameter of the pipeline, so that the pipeline can be cleaned. The 2pc high performance ball valve produced by MST is widely used in water, oil and gas medium with stable performance and good sealing performance.

2. Features of 2pc High Performance Ball Valve

1) 2pc high performance ball valve operation labor saving: 2pc flattened ball valve ball is supported by upper and lower bearings to reduce friction and eliminate excessive torque caused by huge sealing load formed by inlet pressure pushing ball and sealing seat.
2) 2pc high performance ball valve has reliable sealing performance: PTFE single material sealing ring is embedded in the stainless steel valve seat, and spring is set at the end of the metal valve seat to ensure sufficient preload of the sealing ring. When the sealing surface of the valve is worn during use, the valve will continue to ensure good sealing performance under the action of spring
3) 2pc high performance ball valve fireproof structure: in order to prevent the polytetrafluoroethylene sealing ring from burning due to sudden heat or fire, causing large leakage and fueling the fire, a fireproof sealing ring is set between the ball and the valve seat. When the sealing ring is burned, under the action of spring force, the valve seat sealing ring is quickly pushed to the ball to form metal to metal seal, Play a certain degree of sealing effect. The fire resistance test meets the requirements of apl6fa and apl607.

3.Application of 2pc High Performance Ball Valve

4.About MST

5.FAQ

6.Welcome to Contact Us

Welcome to vist our website about more valve, and please feel free to contact us if you have any questions.
