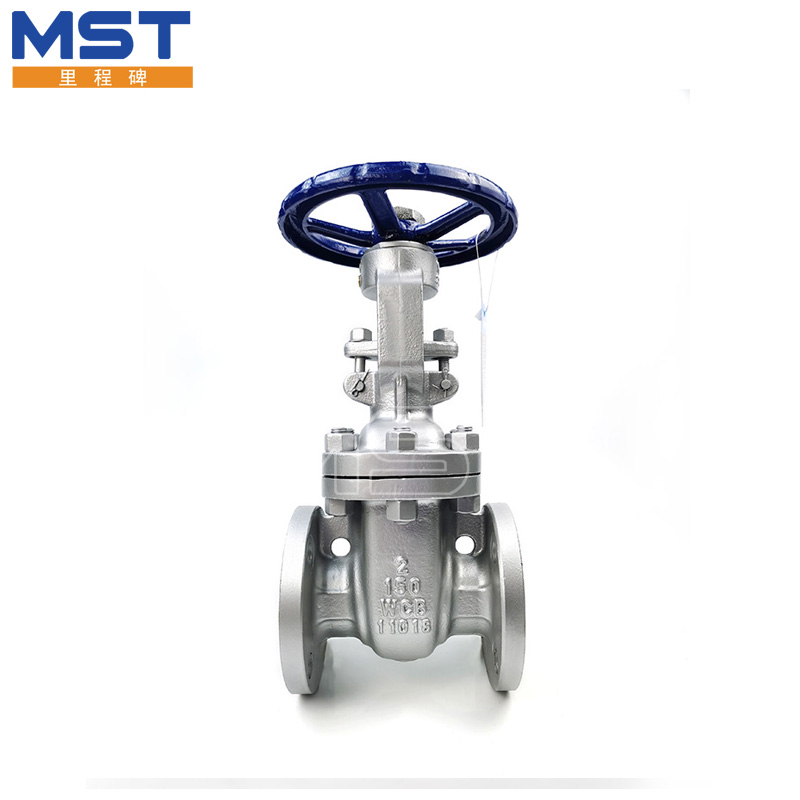

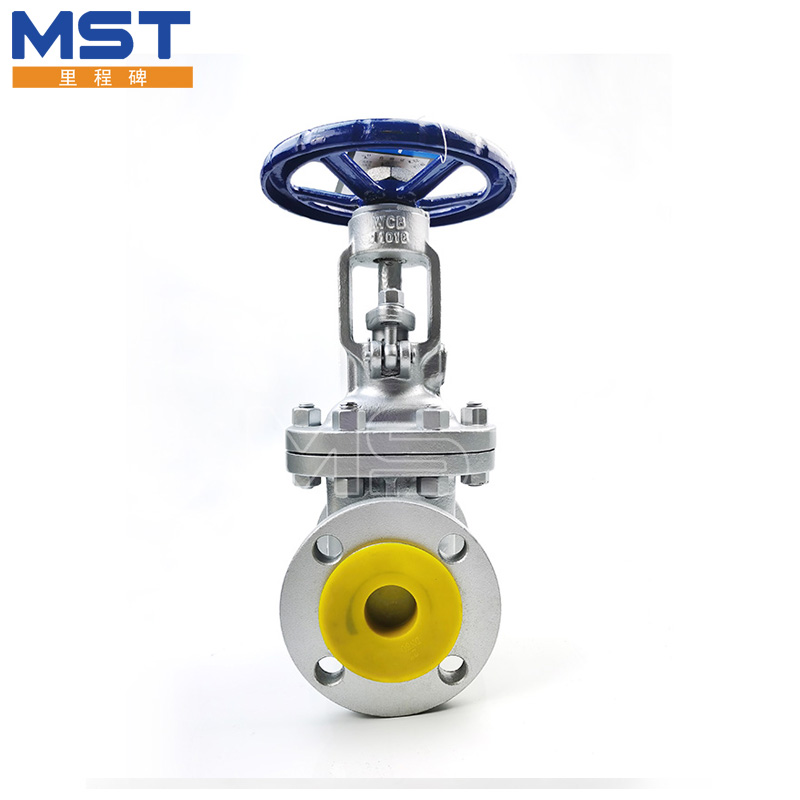

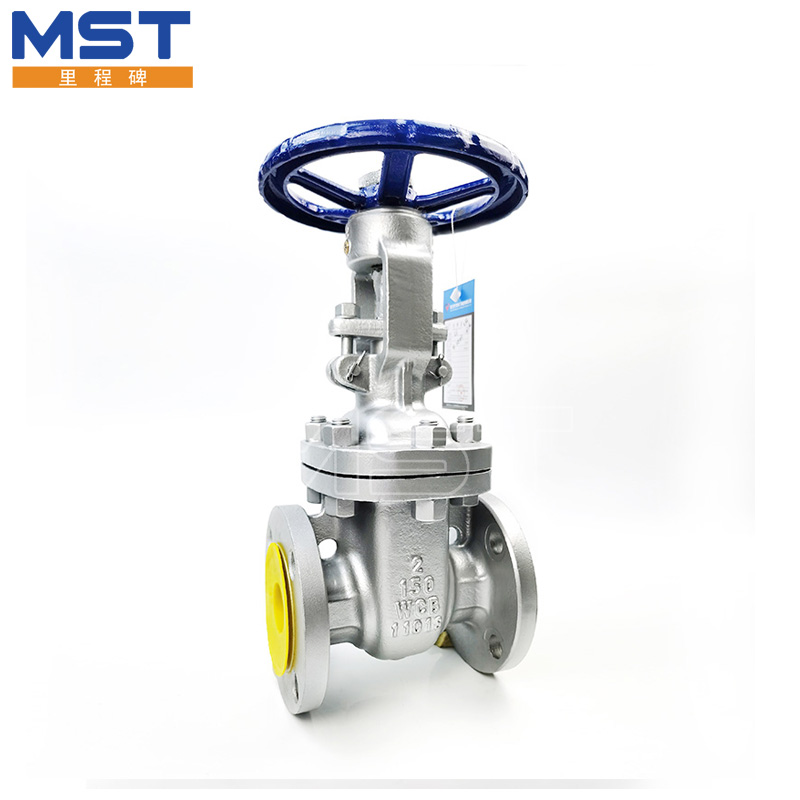

API Standard Gate Valve

API standard gate valve is a fully open or fully closed valve. The API standard gate valve controls the medium flow in the pipeline. When the disc is closed, it prevents the medium flow. When the disc is open, the medium can pass through the valve. API standard gate valve can only be fully opened or fully closed, not half opened.

Send Inquiry

Product Description

Bulk API Standard Gate Valve Manufacturers, Suppliers and Factory with High Quality
1.Introduction of API Standard Gate Valve

API standard gate valve is a fully open or fully closed valve. The API standard gate valve controls the medium flow in the pipeline. When the disc is closed, it prevents the medium flow. When the disc is open, the medium can pass through the valve. API standard gate valve can only be fully opened or fully closed, not half opened.

API Standard Gate Valve


2.Design Standard of API Standard Gate Valve

API standard gate valve’s design and manufacture meet the requirements of American national standard ansib16.34, American Petroleum Institute standard ap16d and API600

Design standard: API 600, API 603, API 6D
Structural length: ASME B16.10
Flange connection: ASME B16.5, ASME b16.47
Test and inspection: API 598, API 6D, API 600

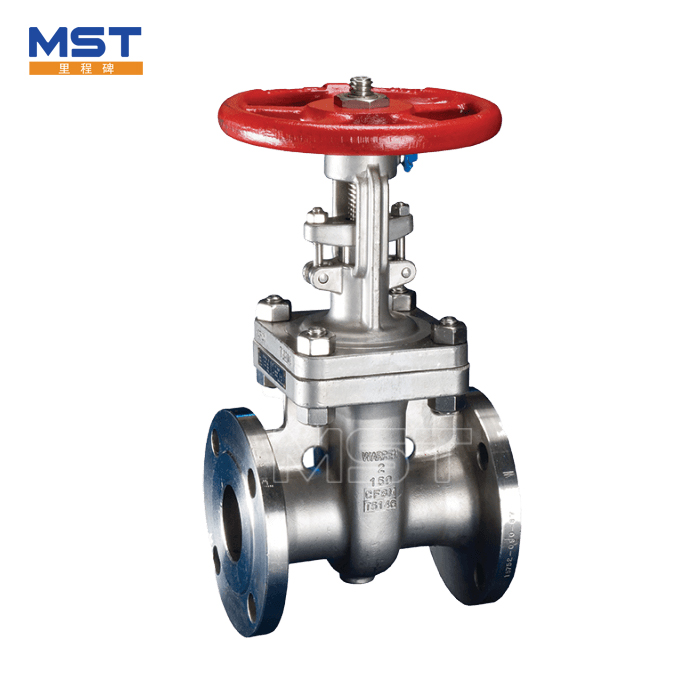

3.The Characteristic of Stainless Steel Flange Gate Valve

Reliable sealing, excellent performance and beautiful appearance.
Wedge type elastic gate structure is adopted, rolling bearing is set in medium and large diameter, easy to open and close.
After quenching and tempering and surface nitriding treatment, the valve stem has good corrosion resistance and scratch resistance.
The gate and valve seat have good abrasion resistance, high temperature resistance, corrosion resistance, abrasion resistance and long service life.

All kinds of piping flange standards and flange sealing surface types can be adopted to meet various engineering needs and user requirements.
The valve body material is complete, and the packing and gasket are reasonably selected according to the actual working condition or user's requirements, which can be applied to various pressure, temperature and medium working conditions.


4.Structure of API Standard Gate Valve


API Standard Gate Valve


5.Material of API Standard Gate Valve

Body,Cover and Cisc
Stem
Sealing face
Sealing shim
Packing
Working temperature
Medium
WCB
F6a

13Cr STL

with boy

material

PTFE Nylon

Enhanced

Flexible

Graphite

1Cr13/

Flexible Graphite

SFB-2
F304/F316
F304L/F316L

Flexible

Graphite

Enhance

Flexible

Graphit

SFB/260
SFP/260
PTFE
≤450℃
Water
Steam
Petroleum
WC1

F11

F12

≤450℃
WC6
≤540℃
WC9
≤570℃
C5 C12
≤540℃
CF8
F304
≤200℃
Nitric acid
Acetic acid
Urea
CF8M
F316
CF3
F304L
CF3M
F316L


6.Testing of API Standard Gate Valve

PN
Shell test
Sealing test (Water)
Sealing test
MPa
Lbf/in2
MPa
Lbf/in2
MPa
Lbf/in2
150 3.0 430 2.2 315 0.4~0.7
60~100
300 7.7 1110 5.7 815
600 15.3 2220 11.3 1630
900 23.0 3330 17.0 2445
1500 38.4 5560 28.2 4080
2500 64.0 9255 47.0 6790
