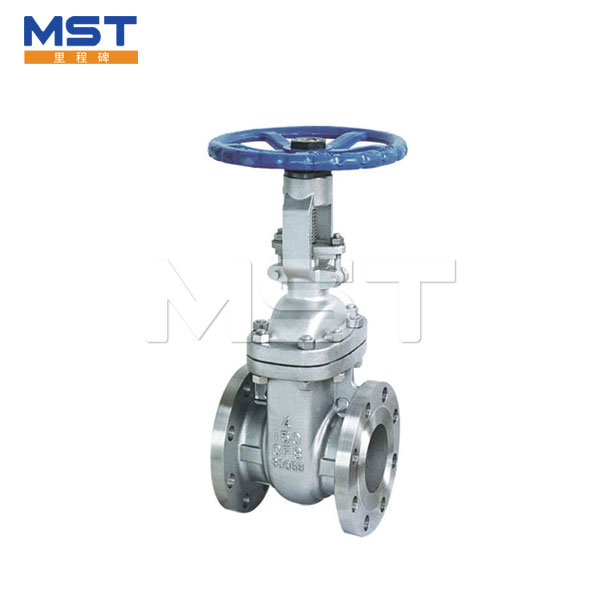

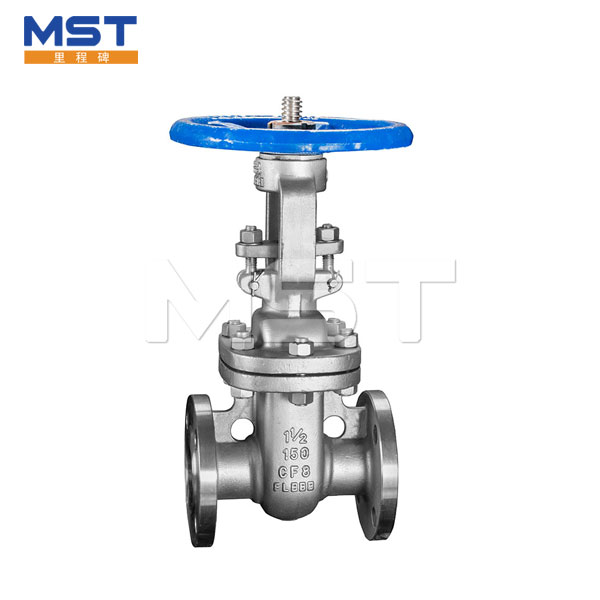

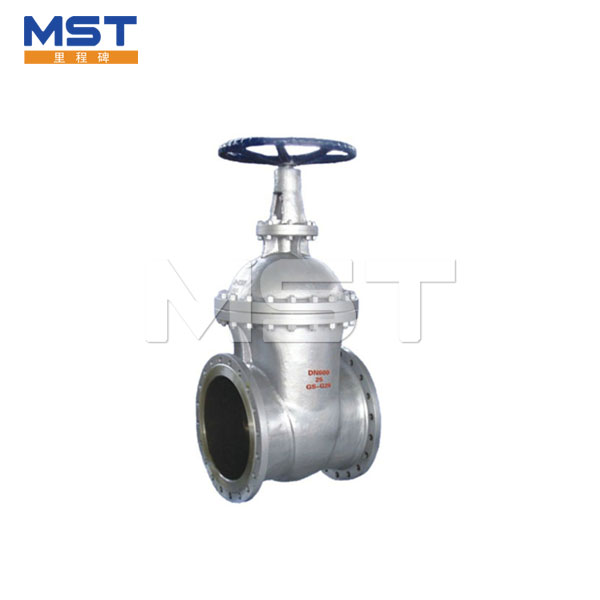

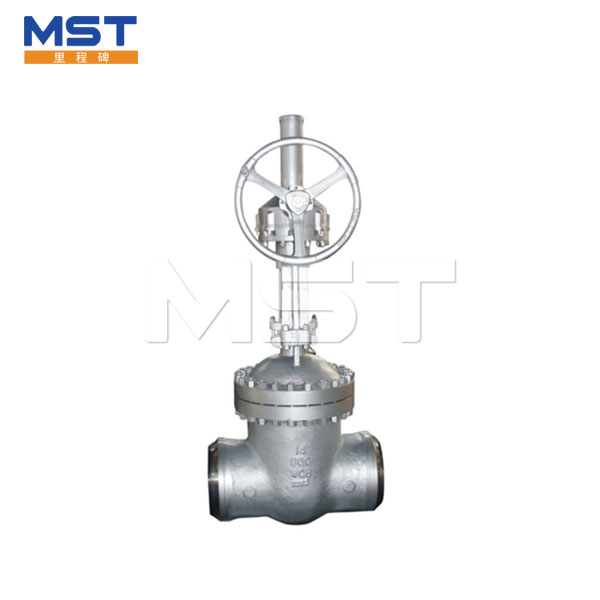

ASME Gate Valve

ASME gate valve is suitable for ANSI class150 ~ 2500, PN20 ~ 42, JIS10 ~ 20K, working temperature - 29 ~ 425 ℃ (carbon steel) and - 40 ~ 500 ℃ (stainless steel),. ASME Gate Valve is used to cut off or connect the medium in the pipeline. By selecting different materials, ASME Gate Valve can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea and other media.

Send Inquiry

Product Description
Customized China ASME Gate Valve Manufacturers, Suppliers and Factory with Free Sample

1.Introduction of ASME Gate Valve

ASME gate valve is suitable for ANSI class150 ~ 2500, PN20 ~ 42, JIS10 ~ 20K, working temperature - 29 ~ 425 ℃ (carbon steel) and - 40 ~ 500 ℃ (stainless steel),.
ASME Gate Valve is used to cut off or connect the medium in the pipeline. By selecting different materials, ASME Gate Valve can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea and other media.

ASME Gate Valve

2.ASME Gate Valve Structure:

ASME Gate Valve

3.ASME gate vave executive standard

Design and manufacturing standard: API 600
Flange dimension standard: ANSI B16.5
Structural length standard: ANSI B16.10
Pressure temperature standard: ANSI B16.34
Inspection and test standard: API 598


4.Performance specification of ASME Gate Valve

PN (lb) Strength tes Water seal test Air seal test
MPa Lbf/in² MPa Lbf/in² MPa Lbf/in²
150 3.1 450 2.2 315 0.5~07 600~800
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630




5.ASME gate valve features:

1.Product design and manufacture meets the requirements of international advanced standards, reliable seal, excellent performance.
2.The structure design is compact and reasonable, and the shape is beautiful.
3.Wedge type elastic gate structure is adopted, rolling bearing is set in medium and large diameter, easy to open and close.
4.The valve body has a wide range of materials, and the packing and gasket are reasonably selected according to the actual working conditions or user's requirements, which can be applied to various pressure, temperature and medium working conditions.
5.Adopt many kinds of domestic and foreign piping flange standards and flange sealing surface types to meet various engineering needs and user requirements.

5.About MST Valve Co., Ltd.

MST Valve Co., Ltd. is a professional supplier of industrial valve, such as Butterfly valve, Ball valve, Check Valve and Gate valve.
Dedicated to strict quality control and thoughtful customer service, our experienced stall member are always available to discuss your requirements and ensure full customer satisfaction.
We have hydraulic test for every single piece of valves, life test for new developed valve under certain working pressure and temperature, which ensure reliable quality of each piece of valve.
With large stock of valve parts, we may delivery the valves in a very short time.
As one of OEM manufacturers of industrial valve, we provide OEM service and accept customized order as well.
Trust, quality and value, your partner in success.
We passed CE , API, ISO certification.
delia@milestonevalve.com
0086 13400234217 Whatsapp & Wechat


6. Packaging and Delivery


7. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
