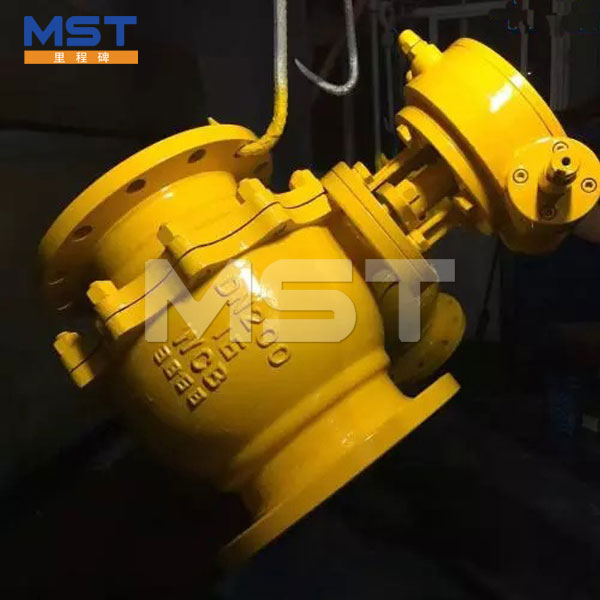

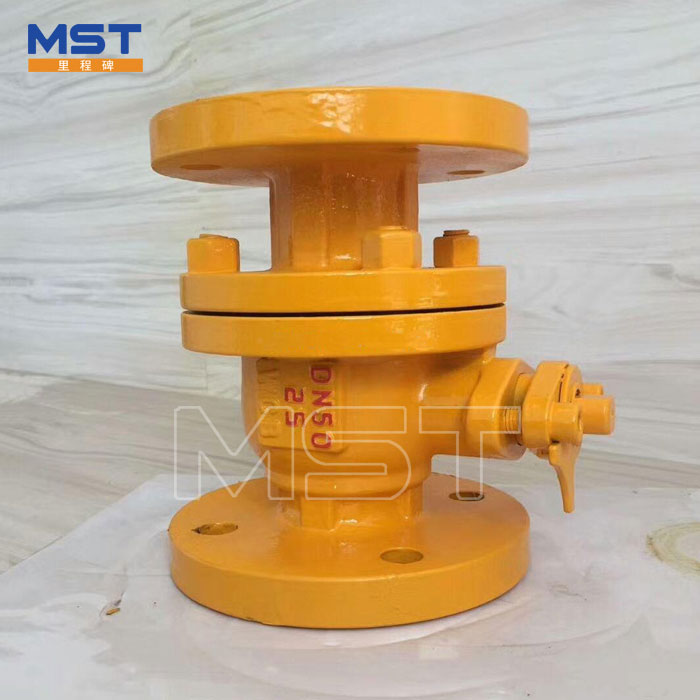

The Ball Valve for Natural Gas standard produced by Milestone Valve Company requires products to have special requirements such as fire prevention, anti-static, safe performance, reliability, and high corrosion resistance; Ball Valve for Natural Gas can be specifically used for natural gas, coal gas, liquefied gas and other gas and non- Corrosive gas pipeline control and flow control.
Type of Valve | Ball Valve for Natural Gas |
DN | DN15~DN250 |
PN(MPa) | 1.6~4.0Mpa |
Design Temperature Range | -15℃~425℃ |
Connection type: | Flanged, Butt weld |
Actuator type | Manual drive, Pneumatic, Hydraulic or electric Actuator |
Sealing | Metal Hard Seal |
Applicable Medium | oil, gas, and various corrosion medium |
Spare Parts | Material |
Body | Forged steel, Cast steel, Stainless Steel, |
Ball | Forged steel, Cast steel, Stainless Steel, |
Stem | Forged steel, Stainless Steel, |
Seat ring | Forged steel, Stainless Steel, |
Seat | PTFE, RPTFE, NYLON, PEEK, PPL, POM, DEVLON |
Gasket | Stainless Steel, flexible graphite spiral wound |
Packing | PTFE, flexible graphite |
1) The Ball Valve for Natural Gas channel is flat and smooth to facilitate pipeline sweeping and cleaning, and can transport media such as slurry and solid particles.
2) Ball Valve for Natural Gas uses PTFE (Teflon) and other materials as a seal, which has good lubricity and elasticity, small friction with the ball, and long service life.
3) Ball Valve for Natural Gas needs to rotate 90° when opening and closing fast, which is convenient and fast.
4) Ball Valve for Natural Gas selects corrosion-resistant and sulfur-resistant materials;
5) The fluid resistance of Ball Valve for Natural Gas is small. When fully open, the cross-sectional areas of the ball passage, valve body passage and connecting pipe are equal, and they are in a straight line. The medium flows through the ball valve, which is equivalent to flowing through a straight-through pipe. The fluid resistance of the ball valve in the valve is relatively small.

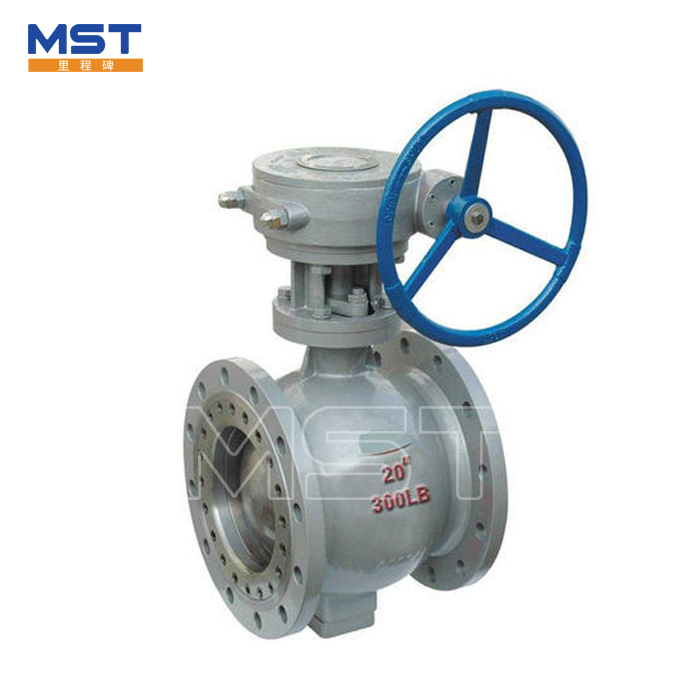

5) Ball Valve for Natural Gas is equipped with manual, worm gear drive, pneumatic, electric (explosion-proof) to realize remote automatic control. The ball valve larger than DN150 is driven by worm gear, and the fixed ball valve larger than DN200 is used;
1) Ball Valve for Natural Gas is suitable for gas pipelines, liquefied petroleum gas pipelines, natural gas pipelines, gas pipelines and other general working media;
2) The Ball Valve for Natural Gas stainless steel valve body is also suitable for applications in various industries, such as oxygen, hydrogen peroxide, methane, and ethylene, in harsh working conditions.
1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
