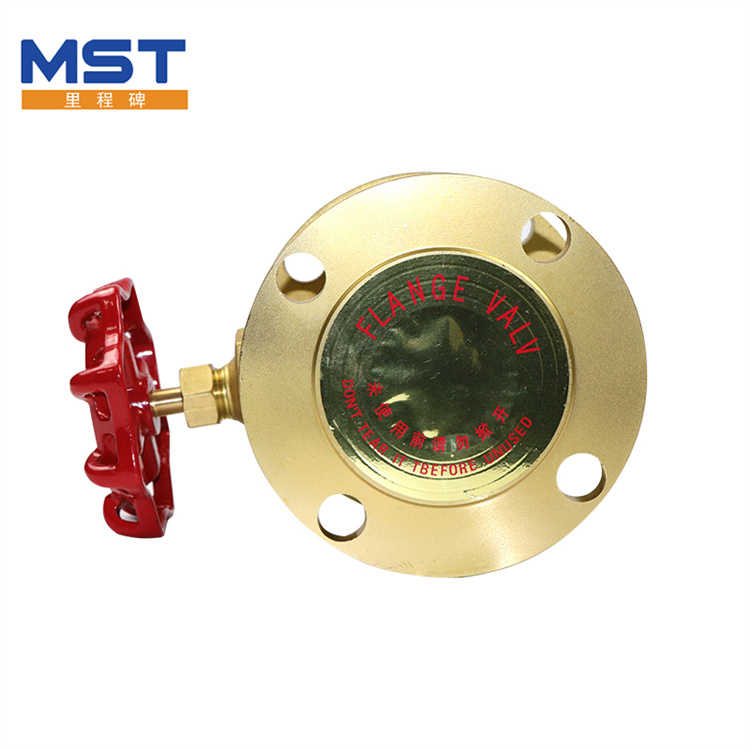

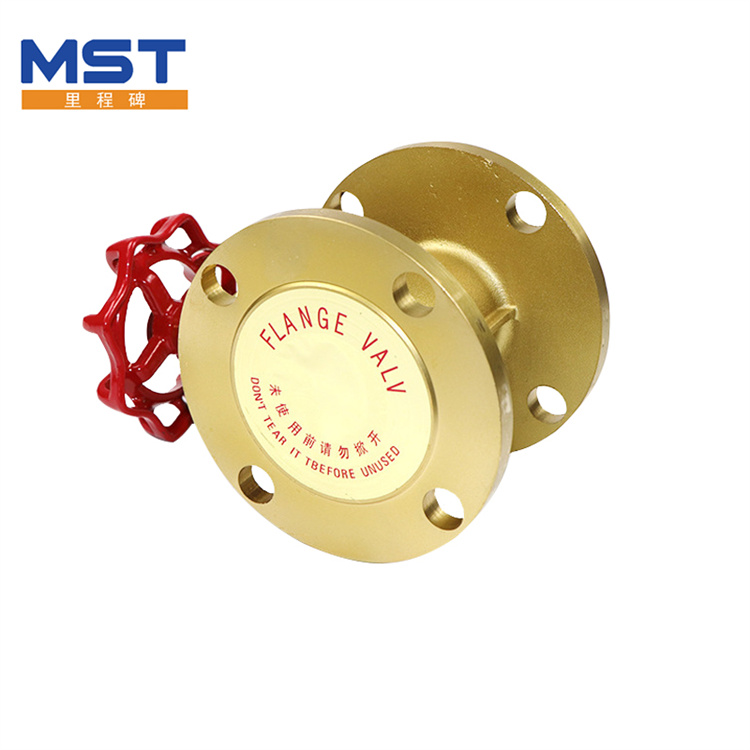

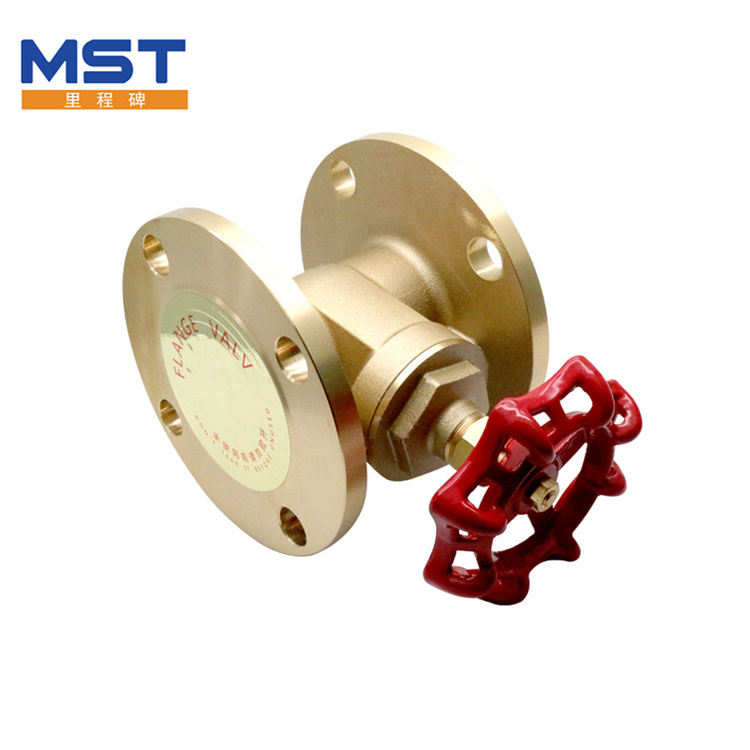

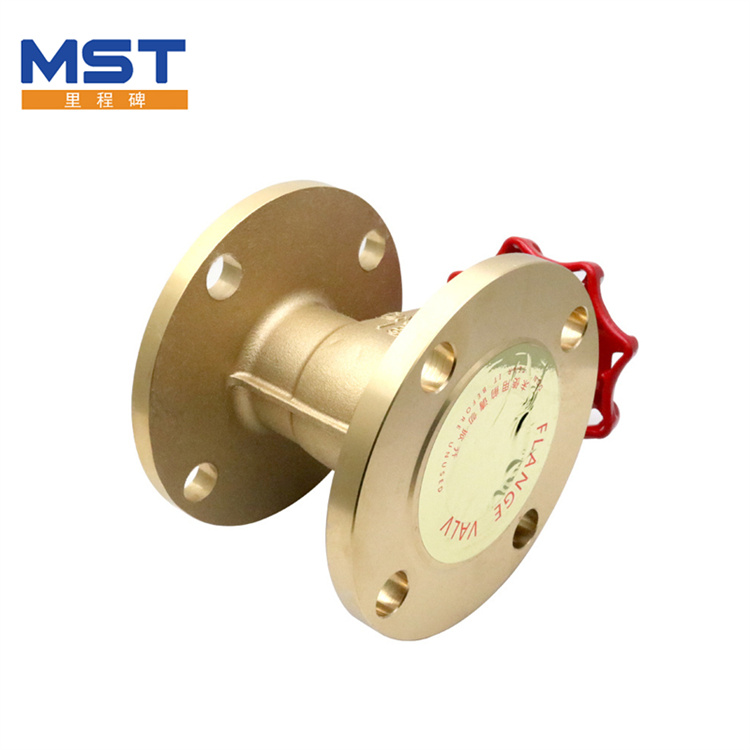

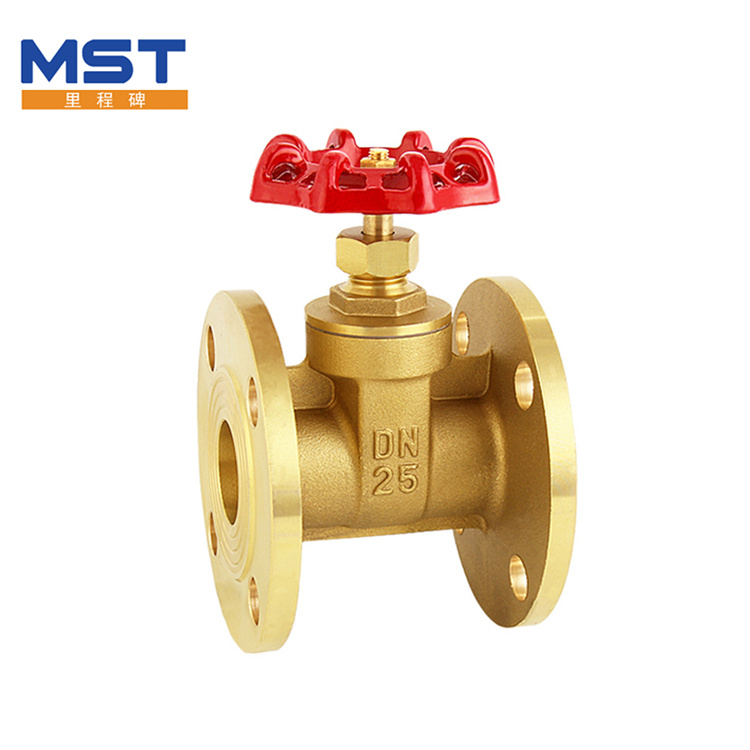

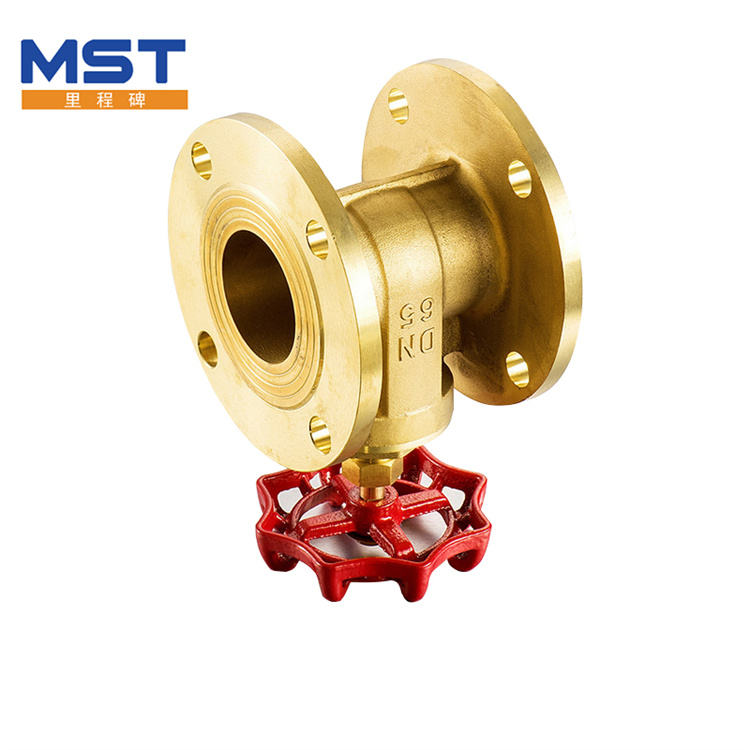

Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve
  • Brass Flange Gate Valve Brass Flange Gate Valve

Brass Flange Gate Valve

Brass Flange Gate Valve is the most common valve for water supply systems. It represents a linear-motion isolation valve and has a function to stop or allow the flow. Gate valves got their name from the closure element sliding into the flow stream to provide shutoff and, therefore, acting like a gate.

Send Inquiry

Product Description

Durable Brass Flange Gate Valve Manufacturers and Suppliers with the Best Price

1.What is Brass Flange Gate Valve?


Brass Flange Gate Valve is the most common valve for water supply systems. It represents a linear-motion isolation valve and has a function to stop or allow the flow. Gate valves got their name from the closure element sliding into the flow stream to provide shutoff and, therefore, acting like a gate. Gate valves are used to isolate specific areas of the water supply network during maintenance, repair works, new installations, as well as to reroute water flow throughout the pipeline. Brass Gate valves are widely used for all types of applications and are suitable for both above-ground and underground installation. Not least for underground installations it is paramount to choose the right type of valve to avoid high replacement costs.


Brass Flange Gate Valve

2.What are Brass Flange Gate Valve used?

Brass Flange Gate Valves are often used when minimum pressure loss and a free bore is needed. When fully open, a typical gate valve has no obstruction in the flow path resulting in a very low pressure loss, and this design makes it possible to use a pipe-cleaning pig. A gate valve is a multiturn valve meaning that the operation of the valve is done by means of a threaded stem. As the valve has to turn multiple times to go from open to closed position, the slow operation also prevents water hammer effects.


3.Parts of Brass Flange Gate Valve

The body is the largest element of the gate valve. Since the spindle remains in the valve body during rotation, it allows an economical bonnet construction. The valve bonnet itself is joined to the body with bolts, which allows cleaning and maintenance. As the gate valve closes, the wedge travels down until it presses the valve seat, which would mean a complete shutoff. During the opening the wedge slides towards the upper part of the valve body.

Brass Flange Gate Valve


4.Brass Flange Gate Working Principle

Gate valves are normally operated by a handwheel, a valve T-key (wrench) or an actuator. The wheel is attached to a valve stem and transfers rotational energy to it. During the gate valve opening, the rotation of the handwheel turns the threads of the gate stem into the gate and vice versa for closing. This energy moves the gate valve wedge downwards or upwards. In underground gate valve installations, an extension spindle is attached, which allows operation without direct access to the valve itself.
Generally, gate valves are installed in the areas of a pipeline where they will longer remain open or closed, as they generally require sometime to switch between these two positions. However, when the valve needs to be operated quite often or even remotely, motorised gate valves are used.


5.About Brass Flange Gate Valve with Payment and Delivery



6.Contact Information

Welcome to vist our website about more valve, and please feel free to contact us if you have any questions.
karen@milestonevalve.com
Cell: +86 15933075581
