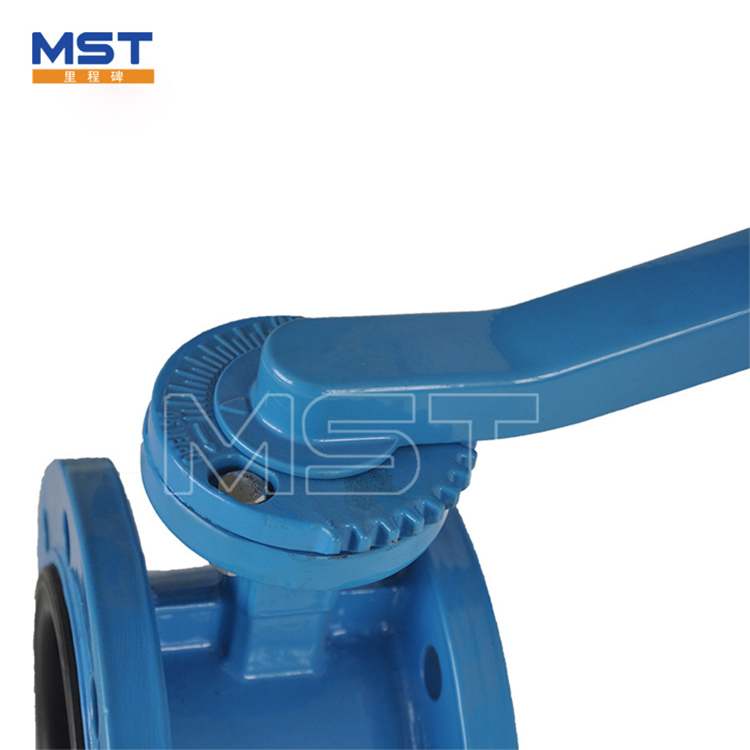

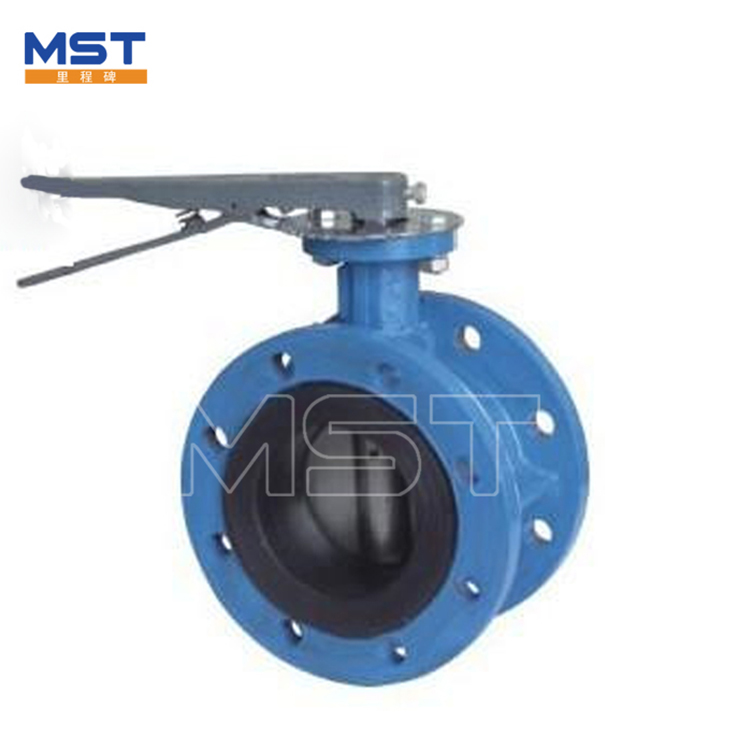

Cast Iron Center Line Butterfly Valve
  • Cast Iron Center Line Butterfly Valve Cast Iron Center Line Butterfly Valve
  • Cast Iron Center Line Butterfly Valve Cast Iron Center Line Butterfly Valve

Cast Iron Center Line Butterfly Valve

Cast iron center line butterfly valve has excellent bidirectional sealing performance and low torque, machining performance.Flange connection of Cast iron center line butterfly valve installed easily, vertical and horizontal installation are all right.

Send Inquiry

Product Description

Customized Cast Iron Center Line Butterfly Valve From Our Factory with High Quality In Stock

1.Product Feature of Cast Iron Center Line Butterfly Valve

· Cast iron center line butterfly valve has excellent bidirectional sealing performance and low torque, machining performance;
· Flange connection of Cast iron center line butterfly valve installed easily, vertical and horizontal installation are all right;
· Cast iron center line butterfly valve can be used for pipe end do vent valve with reliable performance;
· Cast iron center line butterfly valve is suitable for harsh environmental conditions, it can be reliable;
· Cast iron center line butterfly valve can be used for cutting off and regulating medium.


2.Materials of Main Parts of Cast Iron Center Line Butterfly Valve


Part name
Material Science
Body
Gray cast iron, nodular cast iron, rubber
Axle sleeve
Brass, bronze
Shaft
Stainless steel
Plate
Nodular cast iron, aluminum bronze, stainless steel
Taper pin
Stainless steel
O-ring
Rubber
Key
Carbon steel

Cast Iron Center Line Butterfly Valve

Cast Iron Center Line Butterfly Valve


A:Body
The structure is short, light weight, high strength, can be used to clip (small caliber) and flange connection.
E:Packing gland
Through the compression packing,can effectively prevent the leakage of the shaft end.
I: Anti friction pad
Can prevent the abrasion of shaft,reduce the torque, ensure the normal
position of the valve shaft.

B: Plate
The high strength of the valve plate, through precision processing can completely meet the requirement of zero leakage bi-directional bearing.

F: Seal ring
Second axial sealing valve shaft,to prevent impurities entering andeffectively protect the valve shaft.

J: Seat ring
High quality rubber ring is fixed on the valve body can achieve zero leakage, valve and flange connection without adding gasket.

C: Valve shaft
High strength stainless steel valve shaft can be effectively transmitted torque.

G: Axle sleeve
Made of lubrication and friction coefficient of material, effective supporting the valve shaft and reduce driving torque.

K: O-ring
As an auxiliary seal to prevent leakage of shaft end.

D: Top flange
The transm1ss1on device can be connected with a variety of standard connection.

H: Bottom end cover
The wear pad and the valve shaft supporting the valve plate can effectively prevent the valve plate, sagging,ensure the sealing performance of the valve.



3.Technical Date of Cast Iron Center Line Butterfly Valve


Nominal pressure
PN(Mpa)

PN10
PN16
Nominal diameter
DN(mm)
DN50-DN1400
DN50-DN1400
Test pressure:
(Mpa)

Housing
1.5 2.4
Seal up
1.1 1.76
Temperature
-15ºC~+110ºC-15ºC~+110ºC
Suitable medium
Fresh water, sewage, sea water, gas, food, oil, etc.
Driving method
Handle, worm gear, pneumatic or electric device


4.Application of Cast Iron Center Line Butterfly Valve

Our product is widely used in industrial process automatic control systems in food, environmental protection, light industry, petroleum, chemical industry,water treatment, municipal engineering, electric power, water treatment and other industries.


Cast Iron Center Line Butterfly Valve


5.Company Profile

Tianjin Milestone Pump&Valve Co., Ltd is located in Tianjin city. We offer variety of products which can meet your multifarious demands. MST manufacturers butterfly valve, gate valve, globe valve and some other industrial valves. We can manufacture the valves according customers′ requirements. Because of we near the Tianjin port, we can delivery the products efficiently.


6.Contact Information

If you have any question about valve, please fee free to contact us, our engineer will give you suitable suggestion.
