Centerline Butterfly Valve

Flange Centerline butterfly valve is a gate valve that has different modifications. The gate is in the shape of a disc that is attached to a centered axis. The look resembles a butterfly. The centerline design allows for the control of the fluid flow.

Send Inquiry

Product Description

Buy Durable Centerline Butterfly Valve From Our Factory with High Quality in China
1.Introduction of Centerline Butterfly Valve

Flange Centerline butterfly valve is a gate valve that has different modifications. The gate is in the shape of a disc that is attached to a centered axis. The look resembles a butterfly. The centerline design allows for the control of the fluid flow. The Center Line Resilient Seated Butterfly Valves have one handle or actuator, stem, body, resilient seat, butterfly disc and the end packaging. The flanged valves also have flanged endings. These are to be connected to the flanged end pipes. There are different design variations in the valves such as the Single Type Flange Centerline butterfly valve and others. Buy ASTM A351 CF8 Centerline Butterfly Valves at best price in Tianjin Milestone Pump & Valve.

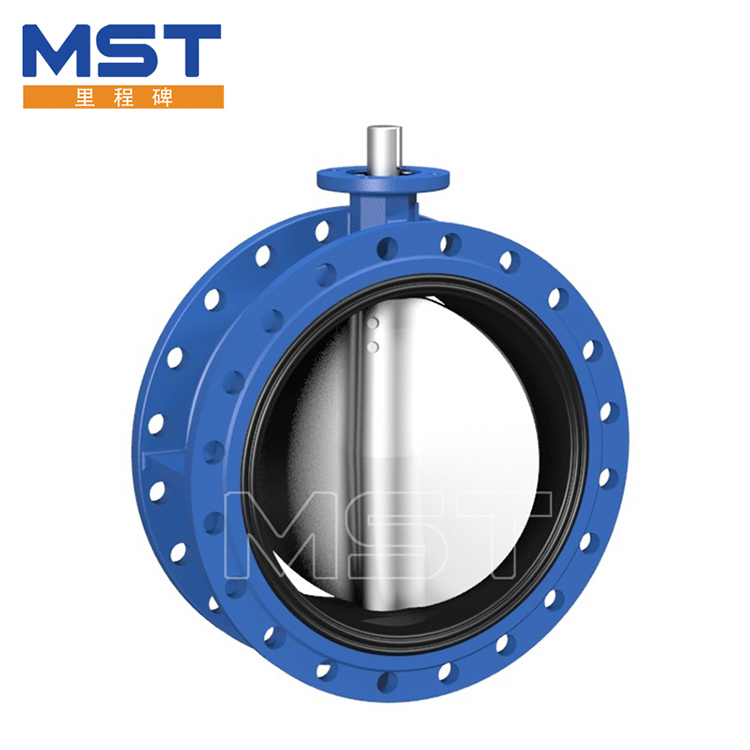

Centerline Butterfly Valve

2.Dimension of Centerline Butterfly Valve

Leading Centerline butterfly valve Manufacturer, Refer Stainless Steel Centerline butterfly valve Series Dimension:

Size	DN50 — DN600
Pressure	150PS1
Temperature	0 Deg C - 1200 Deg C.
Body , Chest	Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M.
Seat	Integral to Body, Soft, Optional.
Gate	AISI SS 304,316,316L,317,317L
Screw Spindle	AISI SS 410,304,316.
Nut	Brass
Yoke	Plate type of MS.
Gland Follower	Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M.
Hand Wheel	Cast Iron , Cast steel , Ductile Iron
Gland Packing	PTFE , PTFE Impregnated

3.Features of Centerline Butterfly Valve

The valve body of Centerline butterfly valve is often made up of cast iron or ductile iron. The disc is made of stainless steel or ductile iron. The stem is of stainless steel. The Centerline Butterfly Valve can have the seat in EPDM, NBR, VITON or PTFE material. There are different standards for the face to face connections, the flange ends and the test types. The face to face can be of ANSI B16.1, the flange end of ANSI B16.5 and the tests vary according to the API 598 standards. The Ductile iron Centerline butterfly valve can vary in size and dimensions according to these standards. The pressure capacities also differ with the standards.

4.Application Of Centerline Butterfly Valve

5.FAQ

6.About Tianjin Milestone Pump & Valve Co.,Ltd.

7. Contact Information

Hot Tags: Centerline Butterfly Valve, Manufacturers, Suppliers, Factory, Customized, In Stock, Bulk, Free Sample, China, Made In China, Cheap, Low Price, Price, Price List, Quotation, CE, Quality, Durable, One Year Warranty
