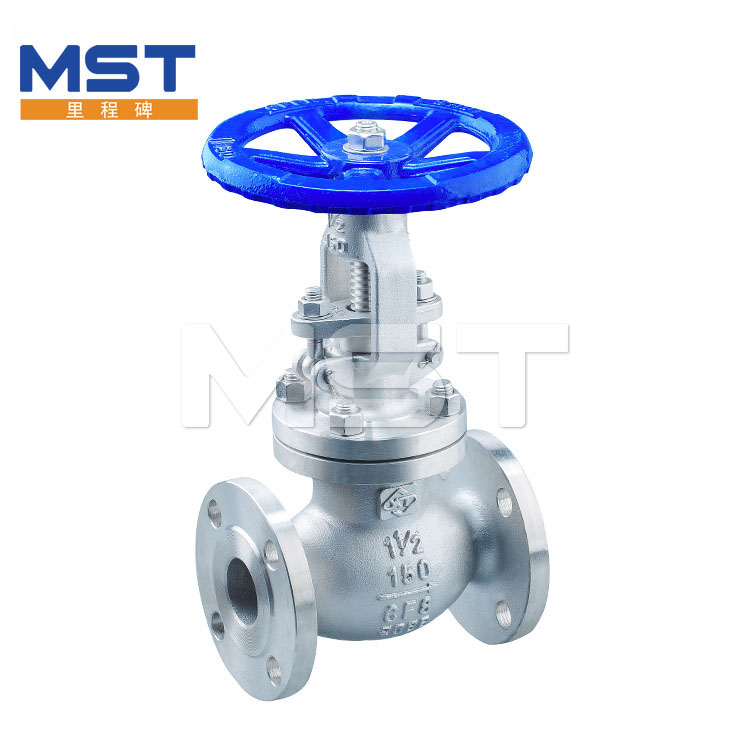

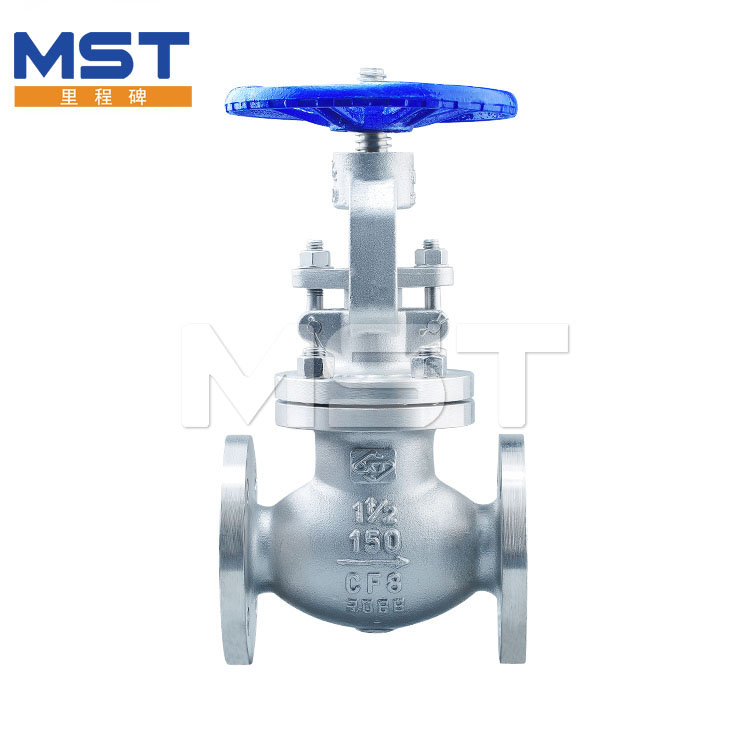

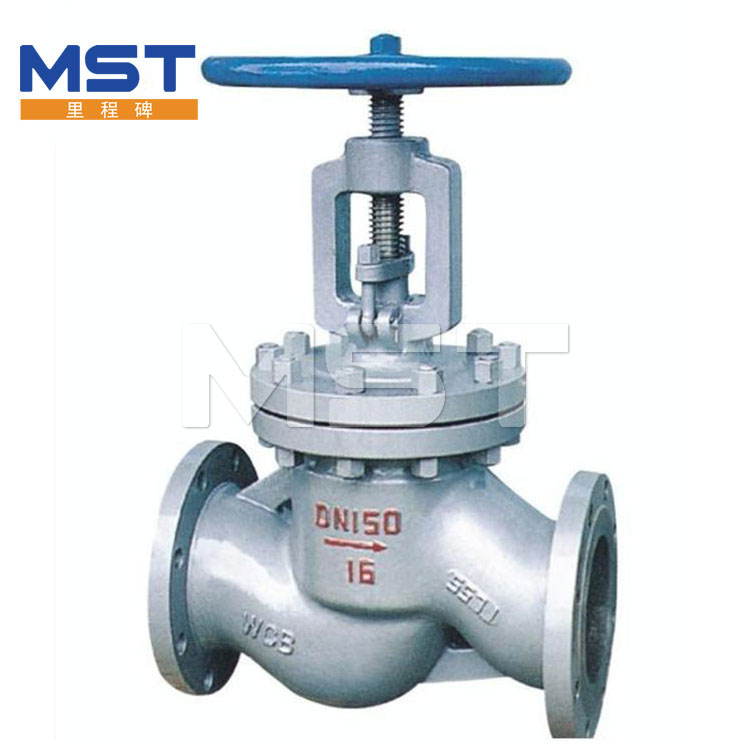

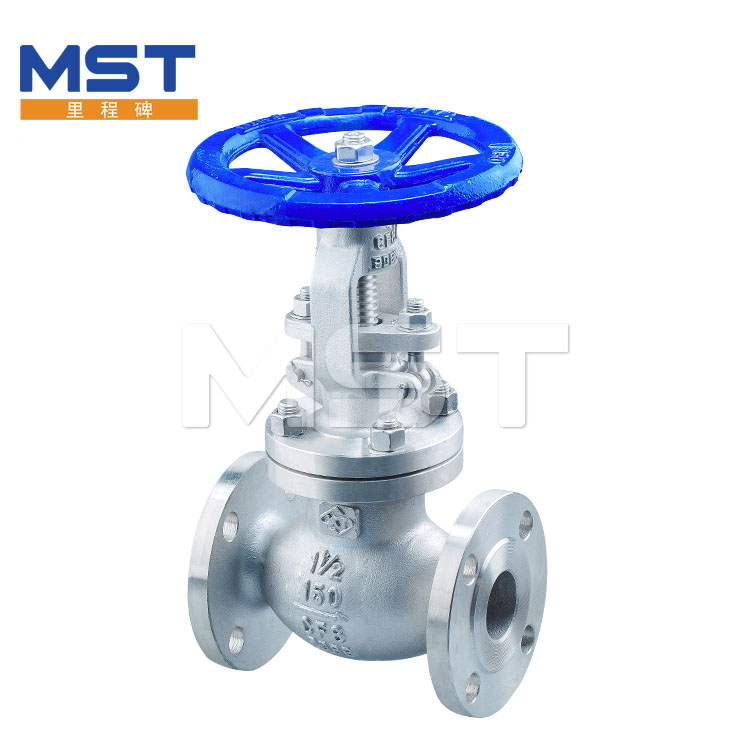

Cryogenic Globe Valve

The Cryogenic Globe valve is composed of valve body, disc, stem, bonnet, handwheel and seal. The bonnet is of lengthened neck structure. It is characterized by double compression sealing structure composed of upper packing and lower packing. The medium flow path is low in and high out. The inlet channel of the valve body is below the sealing surface of the valve seat, and the outlet channel of the valve body is above the sealing surface of the valve seat.

Send Inquiry

Product Description
China Cryogenic Globe Valve Manufacturers and Suppliers with Free Sample

1.Introduction of Cryogenic Globe Valve

The Cryogenic Globe valve is composed of valve body, disc, stem, bonnet, handwheel and seal. The bonnet is of lengthened neck structure. It is characterized by double compression sealing structure composed of upper packing and lower packing. The medium flow path is low in and high out. The inlet channel of the valve body is below the sealing surface of the valve seat, and the outlet channel of the valve body is above the sealing surface of the valve seat.

Cryogenic Globe Valve


2.Technical Parameters of Cryogenic Globe Valve

Type of Valve Cryogenic Globe Valve
DN (mm) 15 ~ 300
PN(MPa) 1.0-4.0
Design Temperature Range -196 ~ 80℃
Applicable Medium LO2, LN2, LAr, LNG etc.
Connection type: Flang , Welded, Socket

Cryogenic Globe Valve

Cryogenic Globe Valve


3.Material of the Cryogenic Check Valve.

Spare Parts Material
Body LCB,LC1,LC2,LC3,LC4,LF8
Bonnet LCB
Stem 1CR17Ni12
Sealing face STL
Shim 1Cr13, Flexible Graphite.
Packing PTFE, Flexible Graphite


4.Characteristic of Cryogenic Check Valve.

1. The Cryogenic Check Valve has reasonable structure, reliable sealing, excellent performance and beautiful shape.
2. The sealing surface of valve disc and valve seat is wear-resistant, low temperature resistant, corrosion resistant, good scratch resistance and long service life.
3. The valve stem has good corrosion resistance and scratch resistance.
4. Various piping flange standards and flange sealing surface types can be adopted to meet various engineering needs and user requirements.
5. The valve body material is complete, and the packing and gasket are selected reasonably according to the actual working condition or user's requirements.


5.About MST Valve Co., Ltd.

MST Valve Co., Ltd. is a professional supplier of industrial valve, such as Butterfly valve, Ball valve, Check Valve and Gate valve.
Dedicated to strict quality control and thoughtful customer service, our experienced stall member are always available to discuss your requirements and ensure full customer satisfaction.
We have hydraulic test for every single piece of valves, life test for new developed valve under certain working pressure and temperature, which ensure reliable quality of each piece of valve.
With large stock of valve parts, we may delivery the valves in a very short time.
As one of OEM manufacturers of industrial valve, we provide OEM service and accept customized order as well.
Trust, quality and value, your partner in success.
We passed CE , API, ISO certification.
delia@milestonevalve.com
0086 13400234217 Whatsapp & Wechat


6. Packaging and Delivery


7. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
