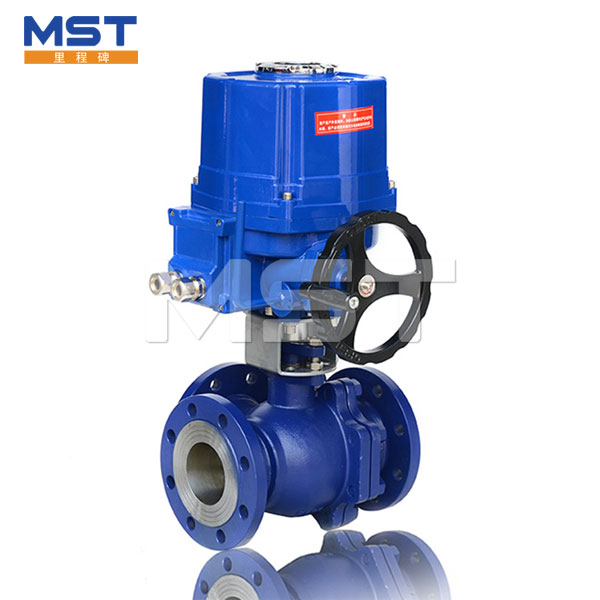

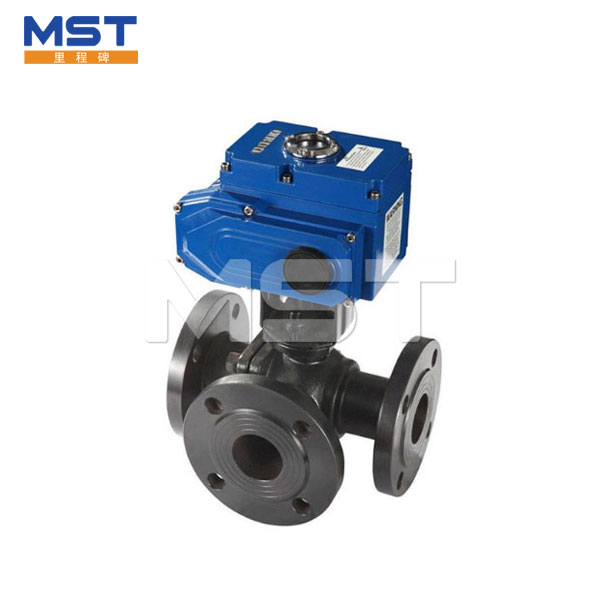

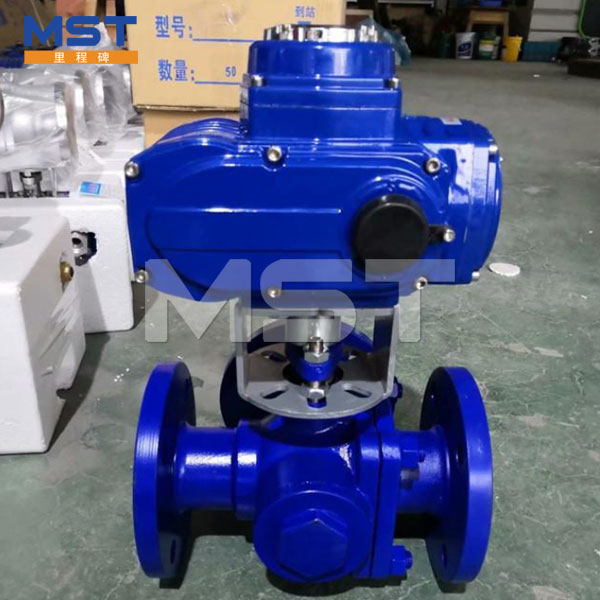

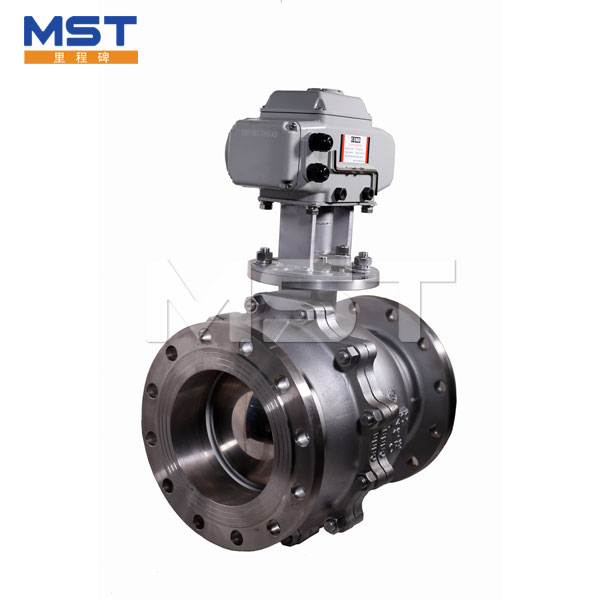

Electric Ball Valve

Electric ball valve is composed of electric actuator and ball valve. Electric ball valve is a kind of pipeline component of industrial automation process control, which is usually used for remote opening and closing (connecting and cutting off medium) control of pipeline medium.

Send Inquiry

Product Description
Durable Electric Ball Valve which Can be Customized From Our Factory in China

1.Introduction of Electric Ball Valve

Electric ball valve is composed of electric actuator and ball valve. Electric ball valve is a kind of pipeline component of industrial automation process control, which is usually used for remote opening and closing (connecting and cutting off medium) control of pipeline medium.

Electric Ball Valve

Electric Ball ValveElectric Ball Valve

2.Technical Parameters of Electric Ball Valve

Name Electric Ball valve
DN DN15-400mm
PN 1.6-6.3MPa
Electric actuator Common switch type, passive contact switch type
Explosion proof electric actuator EX dⅡBT4   EX d11 CT6
Switch Regulation type, Switch type
Voltage AC220V AC110V AC380
  DC12V DC24V DC110V
Working Temperature PTFE:-30~+180℃
  PPL:-30~+250℃
Connection way flange
Valve body structure 2 PC

Material of the Eelctric Ball Valve

Spare Parts Material
Body Carbon steel, stainless steel,
Ball Stainless steel,2Cr13
Stem  Stainless Steel
Packing Flexible graphite, fluoroplastics
Sealing PTFE、PPL、stainless steel,


3.Features of electric ball valve

1. The electric ball valve has the smallest flow resistance among all kinds of valves, which can be opened and closed quickly and conveniently,
2. The electric ball valve has two-way sealing and good sealing performance. The valve seat is generally made of polytetrafluoroethylene.
3. The valve stem of electric ball valve is designed with anti blow out structure. Even in the case of abnormal pressure rise in the valve chamber and failure of packing block, the valve stem will not be blown out by the medium. Moreover, the valve stem adopts the bottom mounted design, and the inverted seal of the valve stem increases with the increase of medium pressure.
4. The valve rod packing of the electric ball valve adopts V-type sealing structure, which avoids the abrasion and abrasion of the valve rod and packing sleeve, and reduces the operating torque of the valve.
5. The movable ball valve can be equipped with anti-static structure according to the customer's requirements to prevent the fire or explosion hazard caused by static spark.
6. Flange electric ball valve is convenient to install electric and pneumatic actuators, saving installation space.


4.Application of Electric Ball Valve

delia@milestonevalve.com
0086 13400234217 Whatsapp& Wechat

5. Packaging and Delivery


6. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
