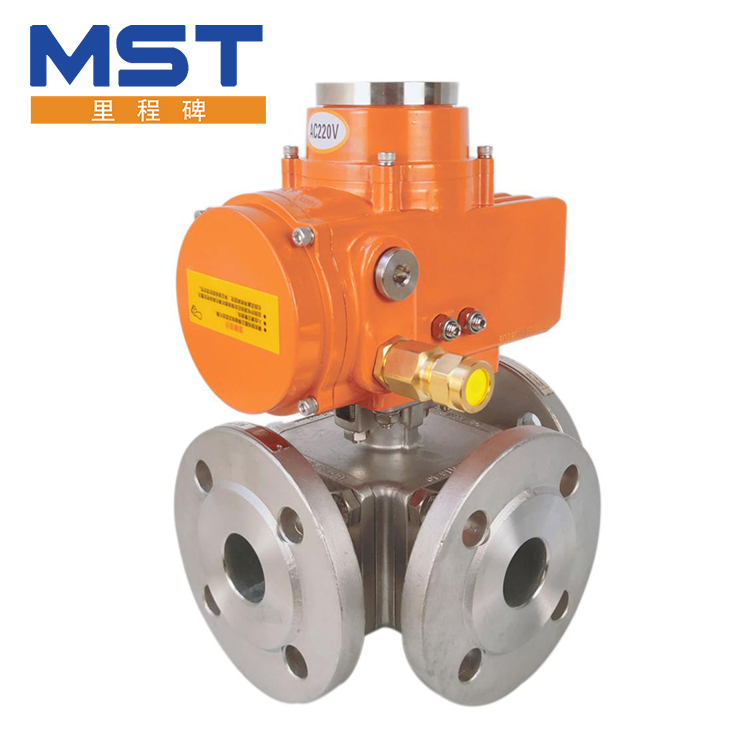

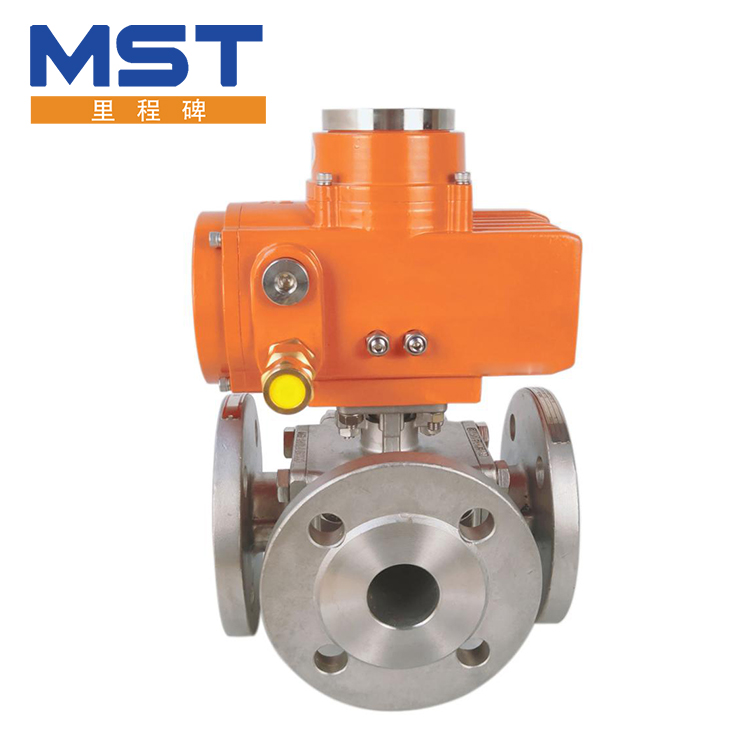

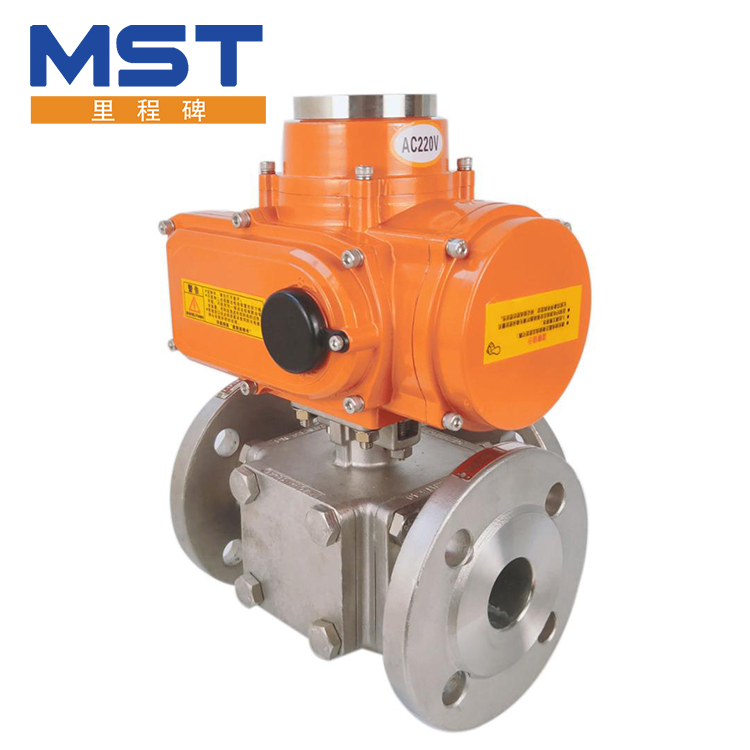

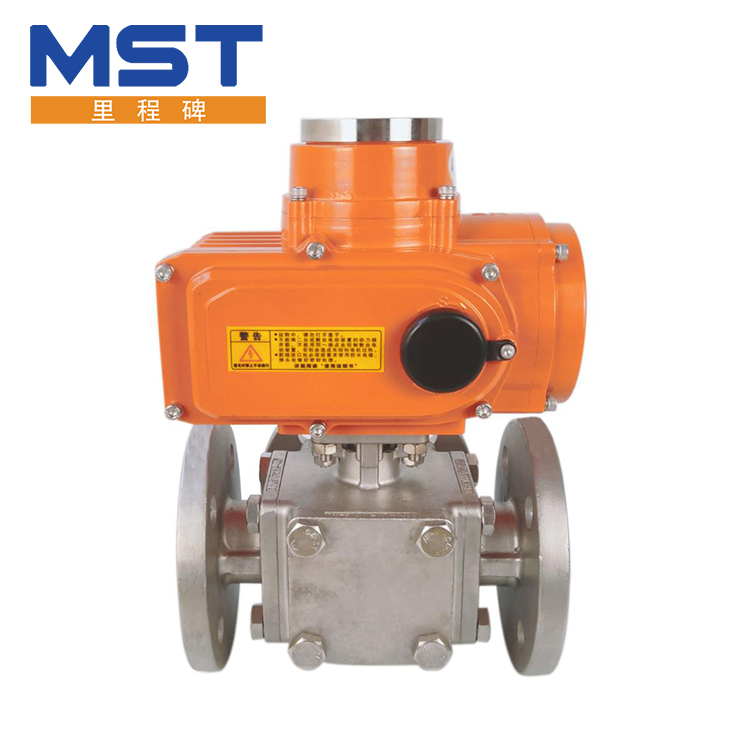

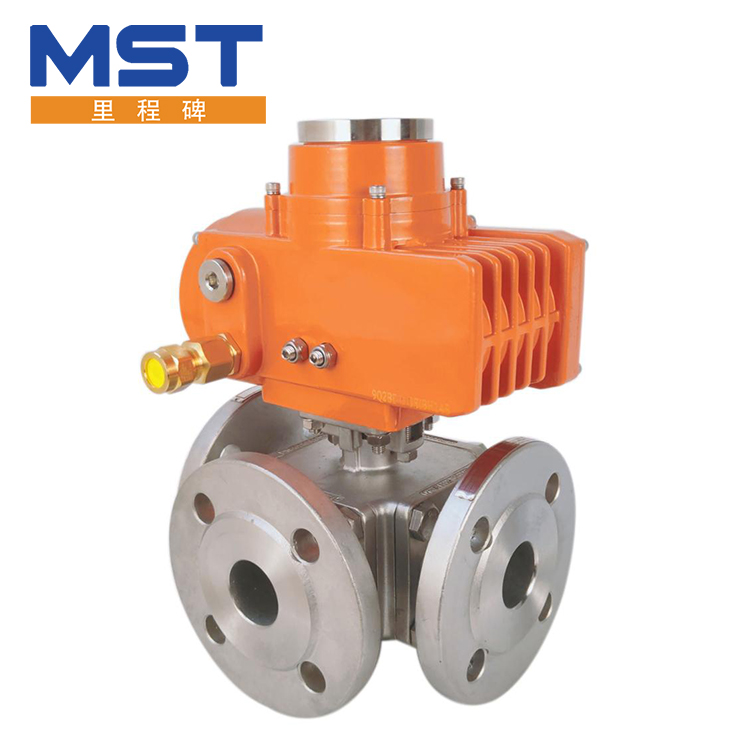

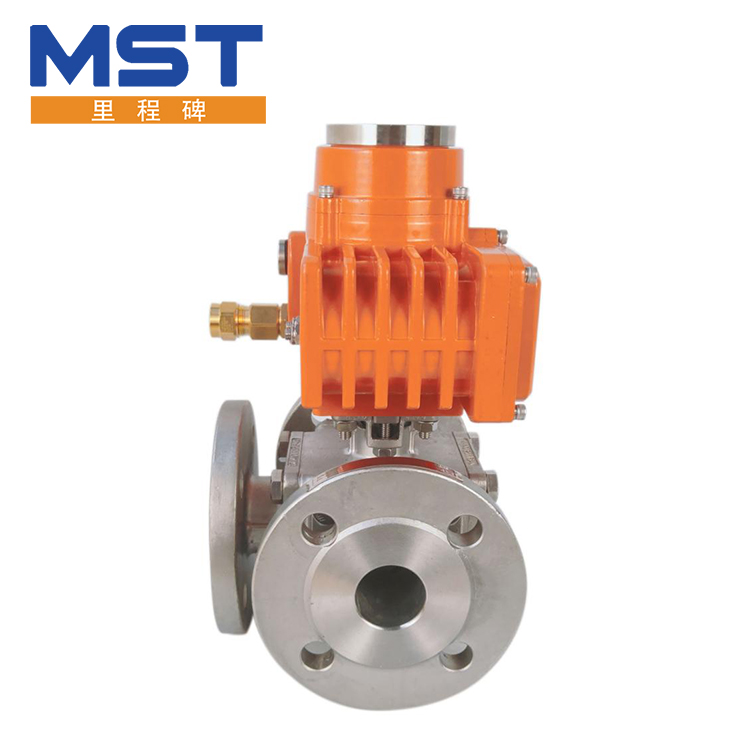

China Electric Three Way Ball Valve Manufacturers, Suppliers and Factory with Free Sample
1.What is The Electric Three Way Ball Valve
The Electric Three Way Ball Valves are the most common types of ball valves that driven by electric actuator . The Electric Three Way Ball Valves have three ports or connections for pipe.The Electric Three Way Ball Valves are especially useful because they can be set up in ways that simplify the control of gas and fluid flow. For example, they can be used to divert the flow of oil from one tank to another.
2.What The Electric Three Way Ball Valve used
Cut of or shut off flow
Switch flow between two different sources
Combine the flow from two different sources
Alternate flow between two different destinations
Divert flow coming from one source to another destination
Split flow coming from one source between two outgoing destinations
3.Specification of The Electric Three Way Ball Valve
Nominal Diameter: DN25-DN200
Operating Pressure: PN16
Body Material: WCB, CF8,CF8M
4.Feature of The Electric Three Way Ball Valve
1.Compact structure, rapid opening and closing, unobstructed flow channel and low fluid resistance.
2.The sealing performance is good, and the elastic deformation of the four-sided valve seat material PTFE is used to achieve leak-free sealing.
3.Any port can be used as an inlet without leakage. The tee can be made into an L-shaped port or a T-shaped port.
4.After the system is depressurized, inspection and maintenance can be carried out without dismantling the entire valve body.
