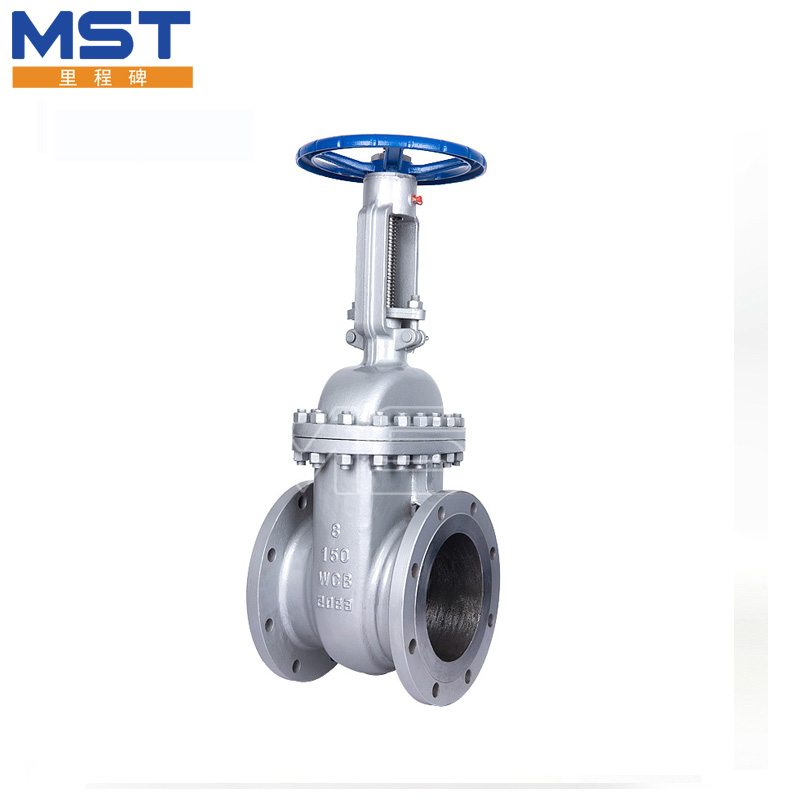

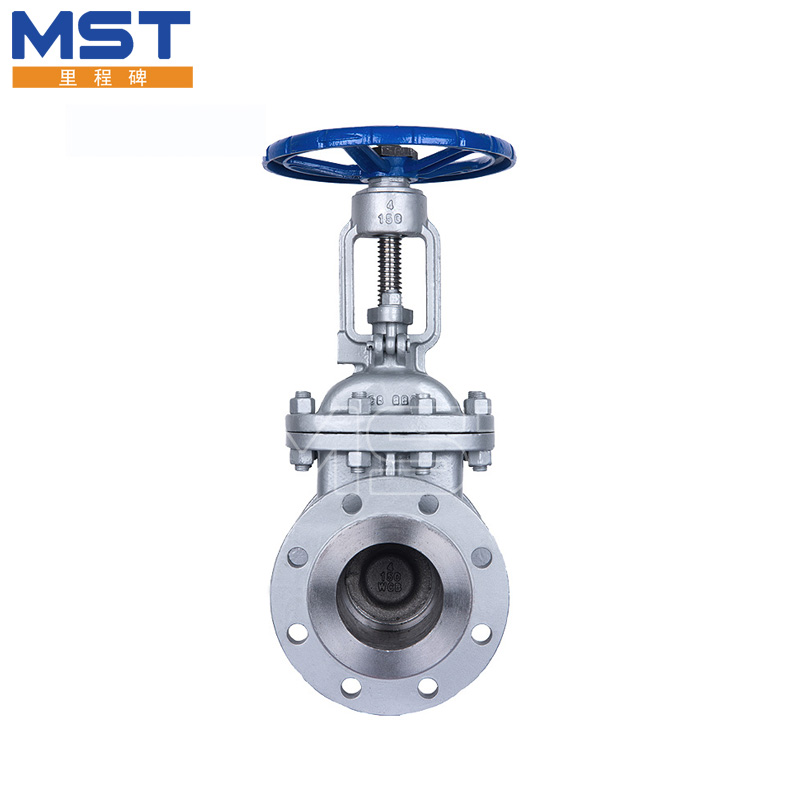

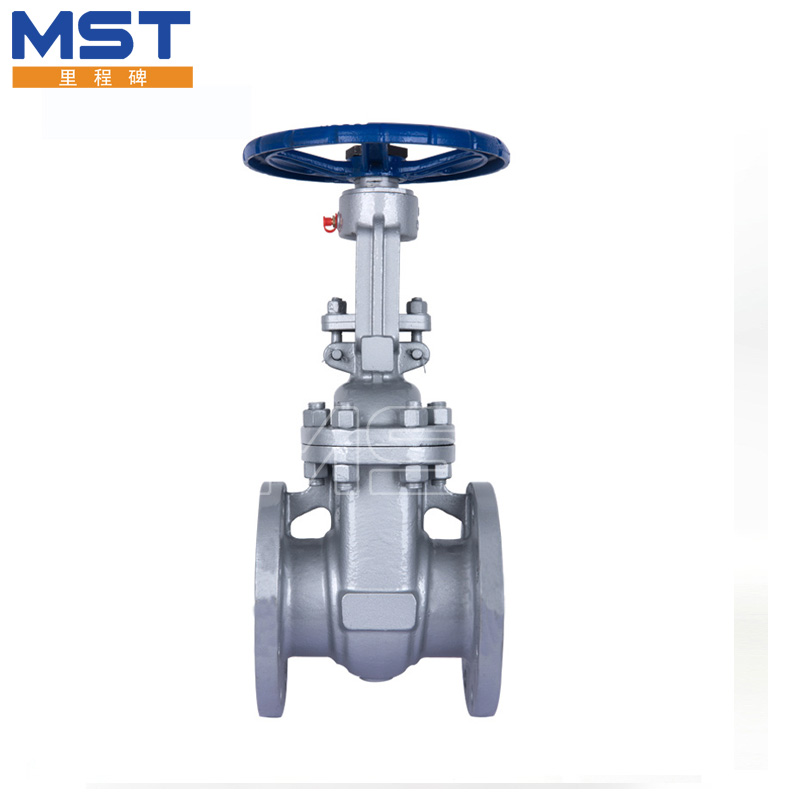

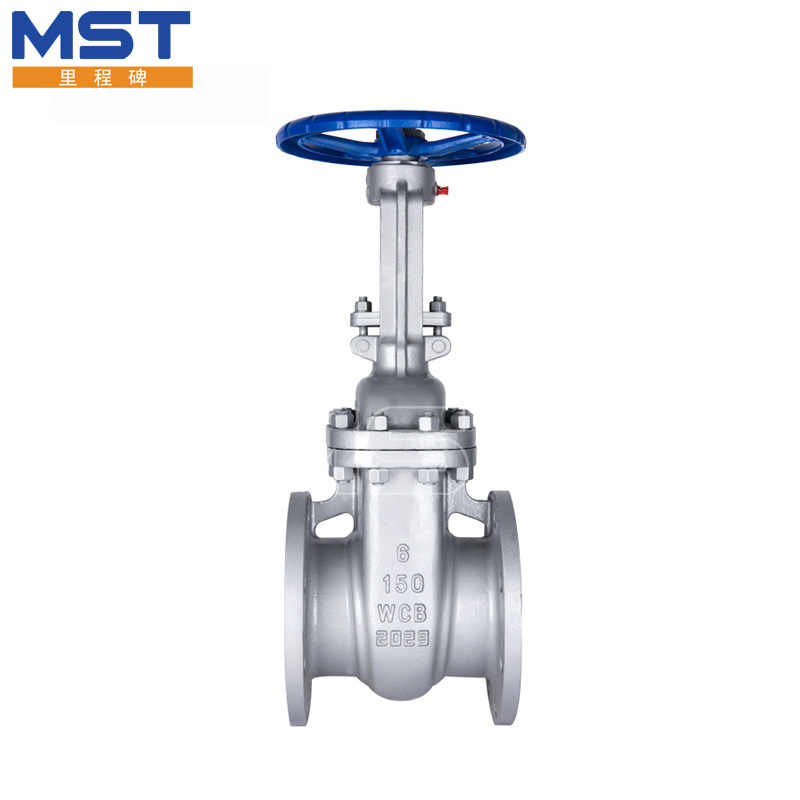

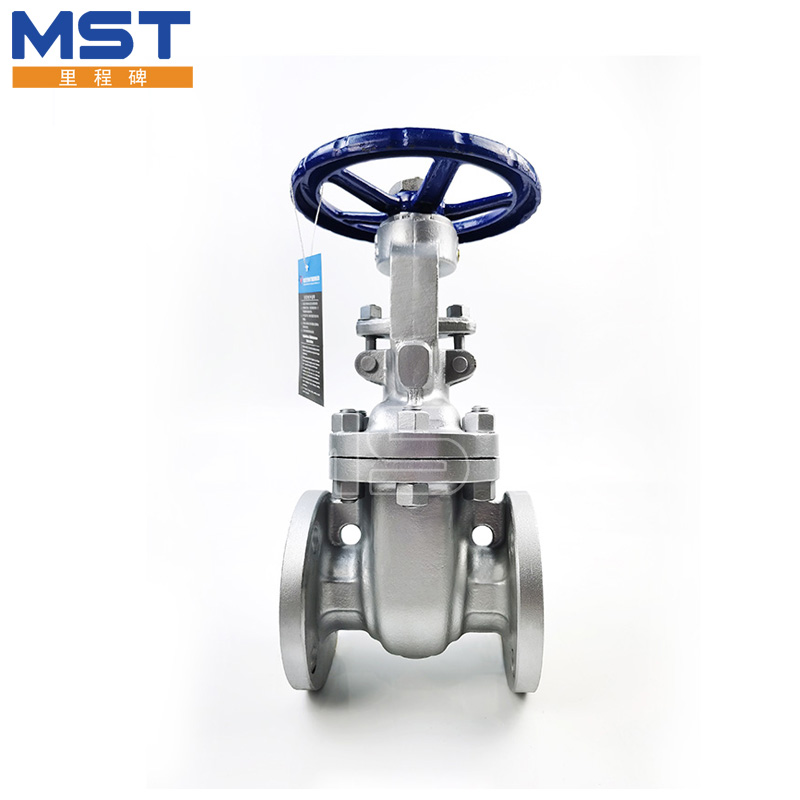

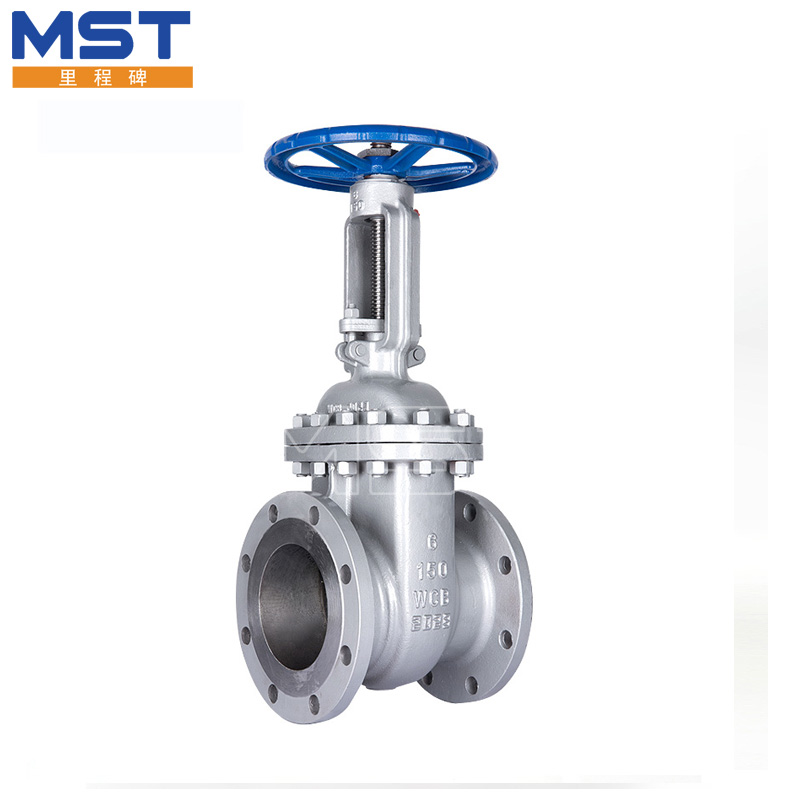

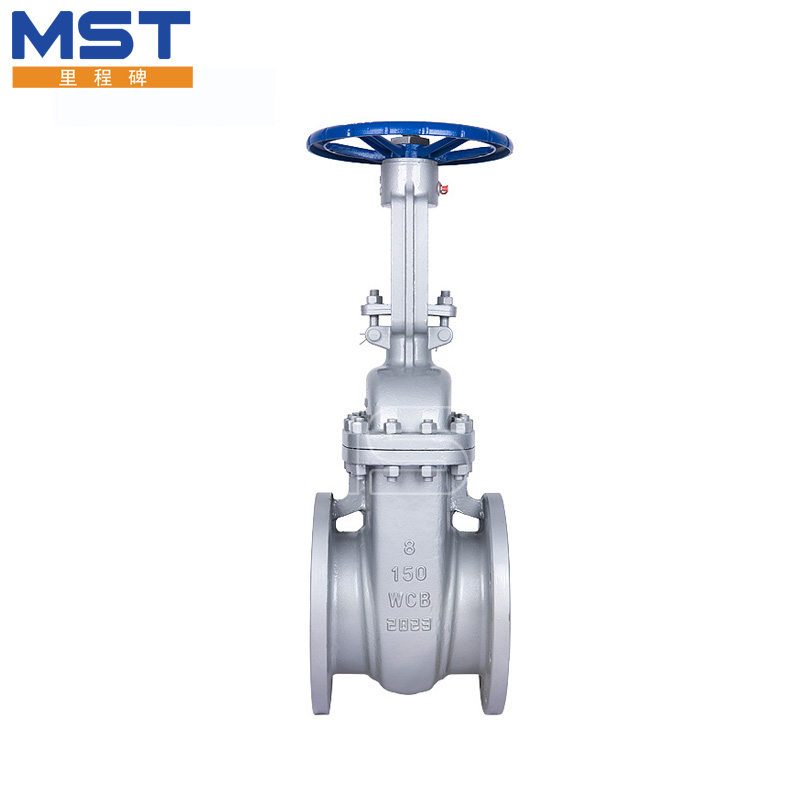

Flange Stainless Steel Gate Valve

Durable Flange Stainless Steel Gate Valve Manufacturers, Suppliers and Factory with Free Sample
1.Introduction of Flange Stainless Steel Gate Valve

Flange stainless steel gate valve is mainly used to cut off or connect media in pipeline. Flange stainless steel gate valve is widely used. Flange stainless steel gate valve should be installed horizontally in pipeline.

The opening and closing parts of the gate valve are the disc, and the movement direction of the gate valve is perpendicular to the fluid direction. The flange stainless steel gate valve can only be fully opened and fully closed! Gate valve is mainly used to connect or cut off the medium in the pipeline, not suitable for regulating the medium flow.

2.Structurer of Flange Stainless Steel Gate Valve

3.Material of Flange Stainless Steel Gate Valve

4.Advange of Flange Stainless Steel Gate Valve

The fluid resistance is small. The medium channel inside the gate valve body is straight through, and the medium does not change its flow direction when flowing through the gate valve, so the flow resistance is small.

Flang stainless steel gate valve is easy to open and close. When opening and closing, the movement direction of the ram is perpendicular to the flow direction of the medium. Compared with the stop valve, the gate valve is easier to open and close.

The flow direction of the medium is generally unrestricted. The medium can flow in any direction from both sides of the gate valve to achieve the purpose of connecting or cutting off. It is easy to install and suitable for pipeline where the flow direction of medium may change.

5. Testing of  Flange Stainless Steel Gate Valve

PN	Shell test		Sealing test (Water)		Sealing test
	MPa	Lbf/in2	MPa	Lbf/in2	MPa	Lbf/in2
150	3.0	430	2.2	315	0.4~0.7	60~100
300	7.7	1110	5.7	815
600	15.3	2220	11.3	1630
900	23.0	3330	17.0	2445
1500	38.4	5560	28.2	4080
2500	64.0	9255	47.0	6790

6. Application of  Flange Stainless Steel Gate Valve

7. About Tianjin Milestone Valve Co., Ltd.

8. Packaging and Delivery

9. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
