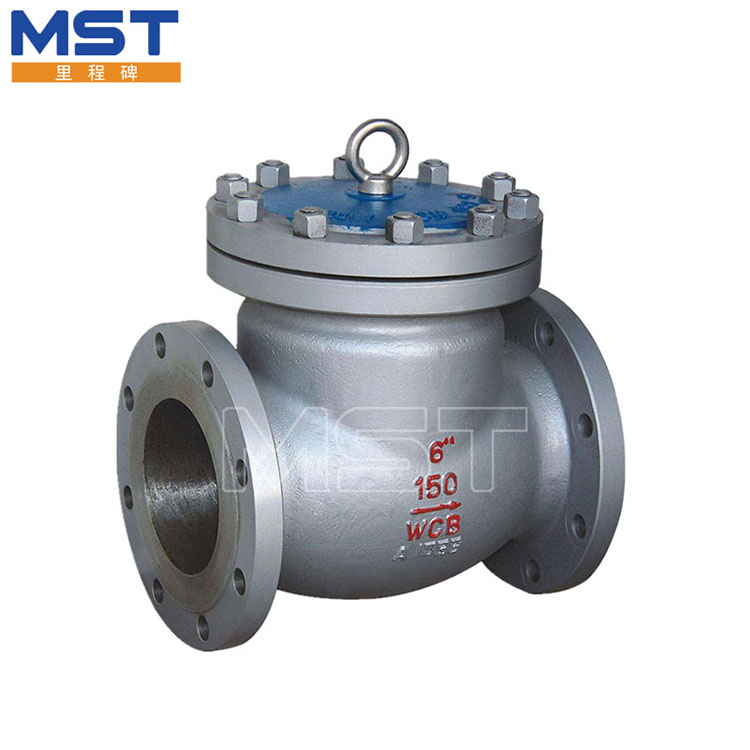

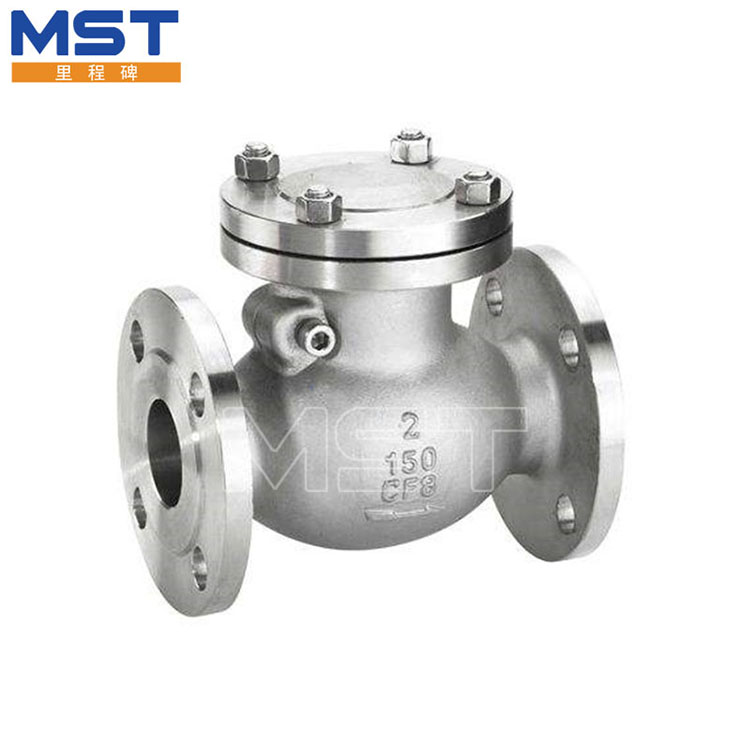

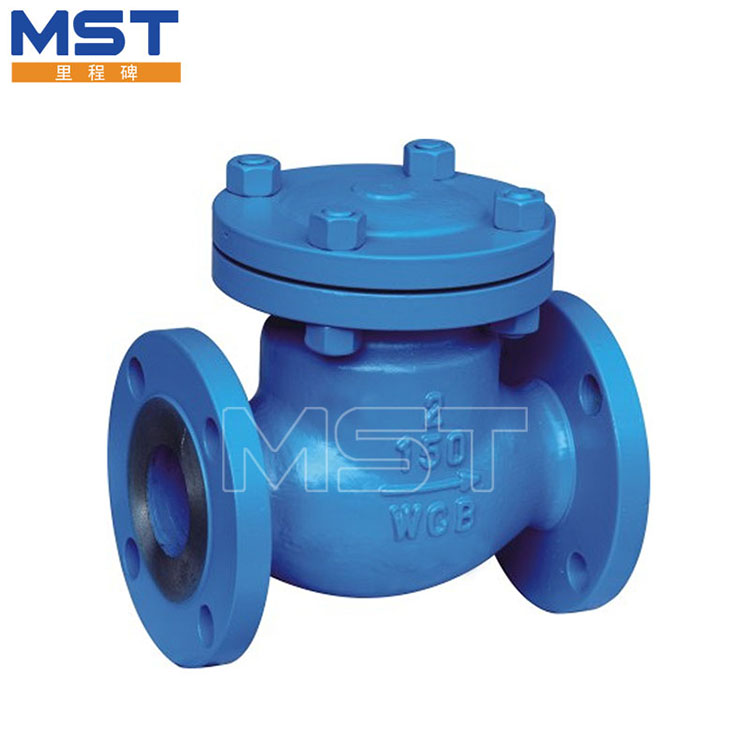

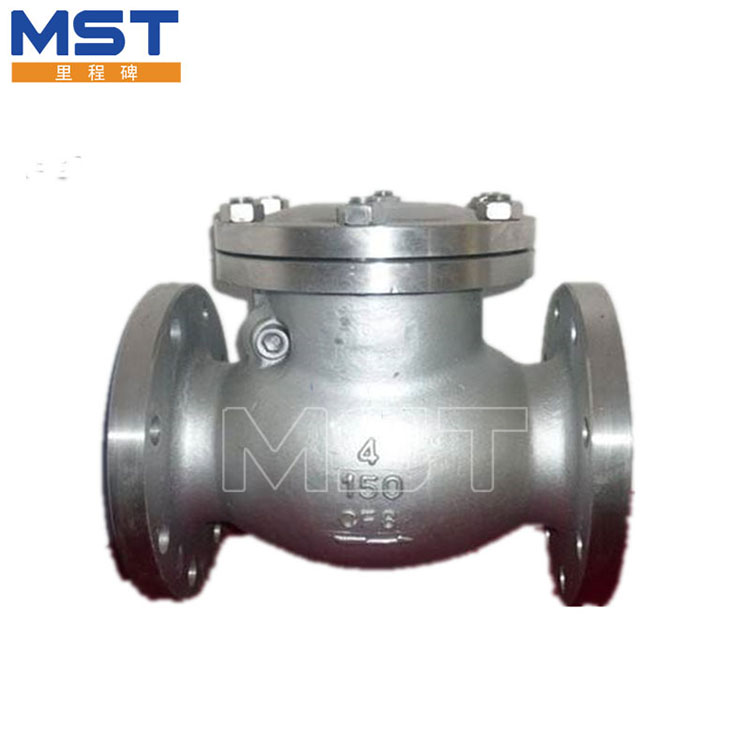

Factory Directly Supply Quality Flanged WCB Swing check valve made in China. Milestone is Flanged WCB Swing check valve manufacturer and supplier in China. Flanged WCB Swing check valve is a valve whose opening and closing parts are opened or closed by the force of the medium flow to prevent the medium from flowing back. Flanged WCB Swing check valve belongs to the category of automatic valves. It is mainly used in pipelines where the medium flows in one direction, and only allows the medium to flow in one direction to prevent accidents in the pipeline.
Flanged WCB Swing check valve specific parameters
Type of Valve
Flanged WCB Swing check valve
DN
DN50~DN800
PN(MPa)
1.6~16Mpa
Design Temperature Range
-15℃~425℃
Connection type
Flanged
Actuator type
Manual drive
Applicable Medium
Water, oil, gas, and various corrosion medium
Spare Parts
Material
Body Cover Disc
Forged steel, Cast steel, Stainless Steel
Slide way bush
Forged steel, Cast steel, Stainless Steel
Hinge Pin
Stainless Steel
Sealing Shim
Stainlness steel, PTFE
Sealing Face
13Cr, STL, PTFE, Nylon, With Body material
Structural features of Flanged WCB Swing check valve
1) The structure length of Flanged WCB Swing check valve is short, and its structure length is only 1/4~1/8 of traditional flange check valve;
2) Flanged WCB Swing check valve is small in size and light in weight, and its weight is only 1/4~1/20 of the traditional micro-resistance slow-closing check valve;
3) The Flanged WCB Swing check valve disc closes quickly and the water hammer pressure is small;
4) Flanged WCB Swing check valve can be used for horizontal or vertical pipes, easy to install;
5) Flanged WCB Swing check valve has unobstructed flow path and low fluid resistance;
6) Flanged WCB Swing check valve is sensitive and has good sealing performance;
7) Flanged WCB Swing check valve has a short disc stroke and low valve closing impact;
8) The overall structure, simple and compact, beautiful appearance;
9) Long service life and high reliability;
Application scope of Flanged WCB Swing check valve
1) The Flanged WCB Swing check valve produced by Milestone Valve Company is suitable for various pipelines with nominal pressure PN1.0MPa~42.0MPa, nominal diameter DN15~1200mm, NPS1/2~48; working temperature -196~540℃, used to prevent The medium flows back.
2) The Flanged WCB Swing check valve produced by Milestone Valve Company can be applied to various media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea by selecting different materials. Mainly used in pipelines such as petroleum, chemical, pharmaceutical, fertilizer, and electric power.
