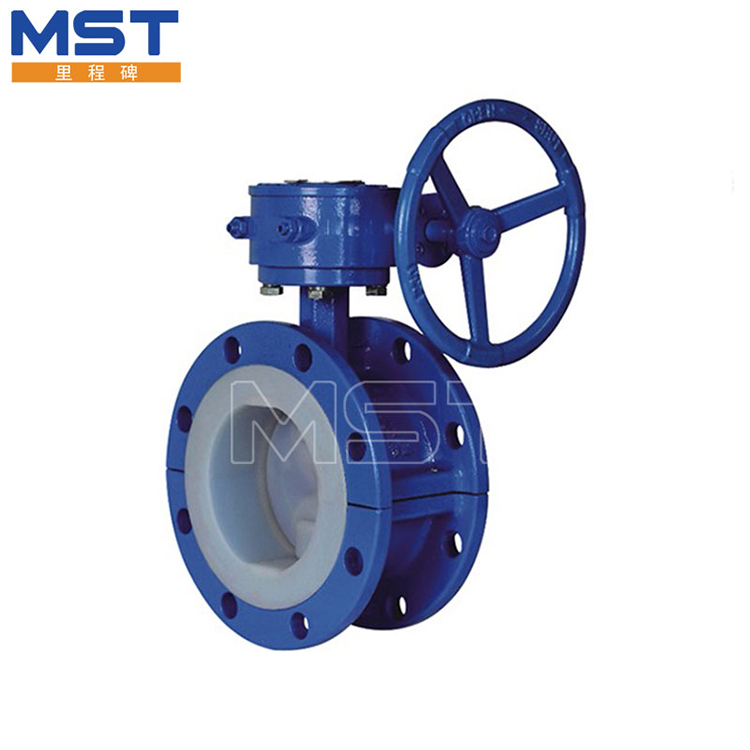

  • Fluorine Lined Flange Butterfly Valve Fluorine Lined Flange Butterfly Valve

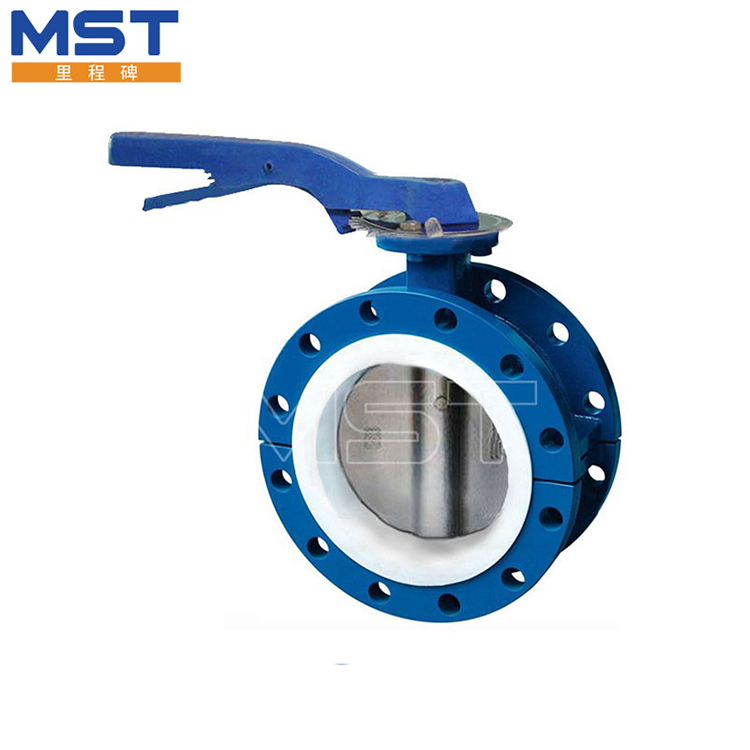

  • Fluorine Lined Flange Butterfly Valve Fluorine Lined Flange Butterfly Valve

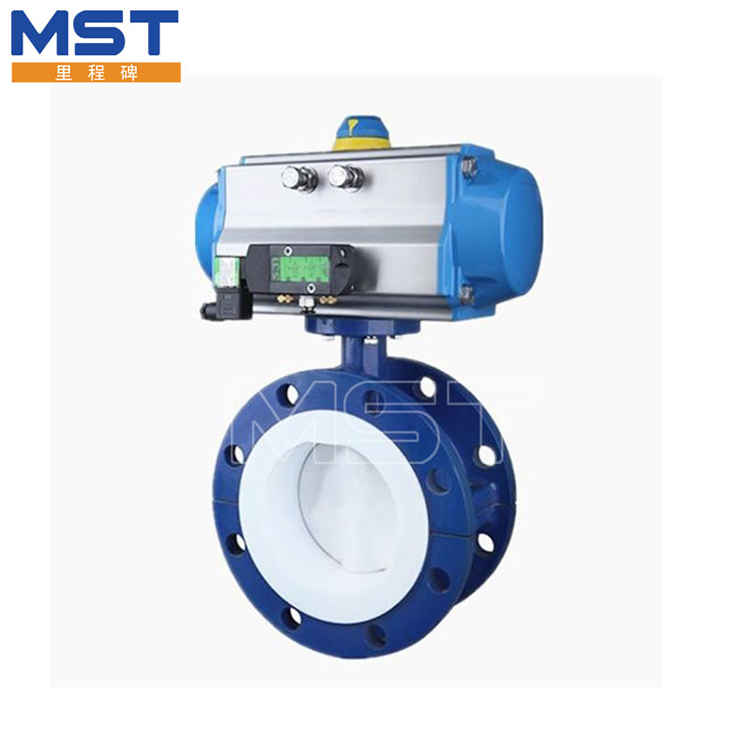

  • Fluorine Lined Flange Butterfly Valve Fluorine Lined Flange Butterfly Valve

Fluorine Lined Flange Butterfly Valve

Fluorine lined flange butterfly valve is usually suitable for working conditions with temperature ≤ 200 ℃, corrosiveness or cleanliness requirements. Fluorine lined flange butterfly valve is a kind of polymer material with thick lining technology used in flow passage parts, valve body, butterfly plate and valve stem.

Send Inquiry

Product Description

Buy Fluorine Lined Flange Butterfly Valve which Can be Customized From Our Factory in China with the Best Price
1.Introduction of Fluorine Lined Flange Butterfly Valve

Fluorine lined flange butterfly valve is usually suitable for working conditions with temperature ≤ 200 ℃, corrosiveness or cleanliness requirements. Fluorine lined flange butterfly valve is a kind of polymer material with thick lining technology used in flow passage parts, valve body, butterfly plate and valve stem. It has excellent anti-corrosion performance and can be applied to any concentration of acid, alkali, salt, oxidant, reducing agent, organic solvent and other media.

Fluorine Lined Flange Butterfly Valve

Type of Valve
Fluorine lined flange butterfly valve
DN
DN50~DN1200
PN(MPa)
0.6, 1.6, 2.5
Design Temperature Range
-10℃~120℃
Applicable Medium
Water, oil, gas, and various corrosion medium
Connection type:
Flanged
Actuator type
Pneumatic Actuator
Sealing
Soft seal

Material of Main Parts
Spare Parts
Material
Body
Cast steel, cast iron, stainless steel
Disc
Cast steel, cast iron, stainless steel
Shaft
Stainless Steel
Seat
Stainless Steel
Stem
Stainless steel, duplex steel
Sealing
PTFE, Flexible graphite

Fluorine Lined Flange Butterfly Valve


2. The Main Features of Fluorine Lined Flange Butterfly Valve

1) The design of fluorine lined flange butterfly valve is novel and reasonable, with light weight and quick opening and closing.
2) Fluorine lined flange butterfly valve has the advantages of small operating torque, convenient operation, labor saving and dexterity.
3) Fluorine lined flange butterfly valve can be installed at any position, which is convenient for maintenance.
4) The sealing parts of fluorine lined flange butterfly valve can be replaced, and the sealing performance is reliable, achieving bidirectional sealing and zero leakage.
5) Fluorine lined flange butterfly valve has the characteristics of aging resistance, corrosion resistance and long service life.

Fluorine Lined Flange Butterfly Valve


3.Executive Standard of Fluorine Lined Flange Butterfly Valve

1) Manufacturing standard: GB / T 122387-89
2) Flange standard: gb9113-2000, gb17241.6-1998
3) Structural length standard: gb12221-89
4) Test standard: GB / T 13927-92


4.Application of Fluorine Lined Flange Butterfly Valve

Fluorine lined flange butterfly valve is widely used in chemical industry, petroleum, medicine, food, steel smelting, papermaking, water and electricity system of gas, liquid, semi fluid pipeline and container for intercepting and regulating equipment

Fluorine Lined Flange Butterfly Valve



5.About MST

6.FAQ



7.Welcome to Contact Us

Welcome to vist our website about more valve, and please feel free to contact us if you have any questions.
