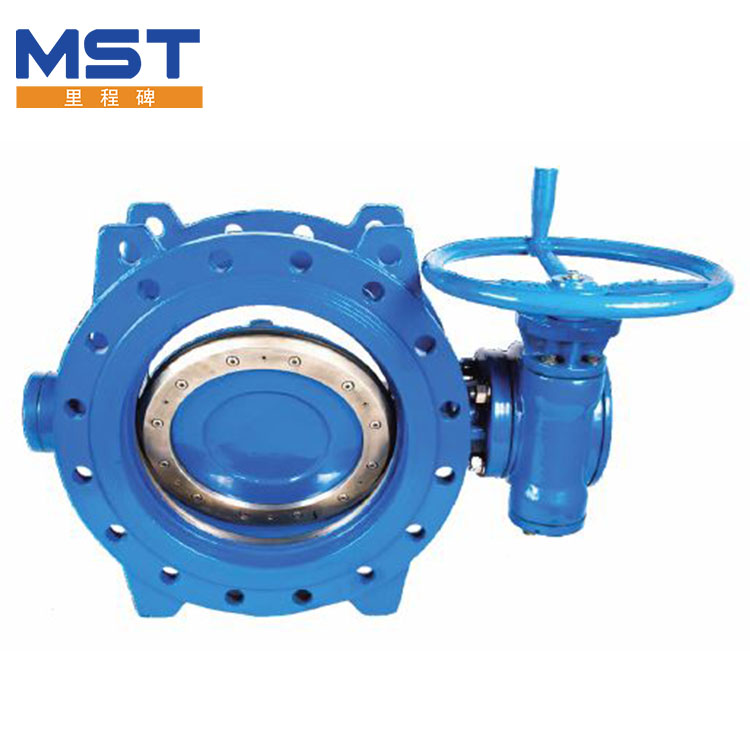

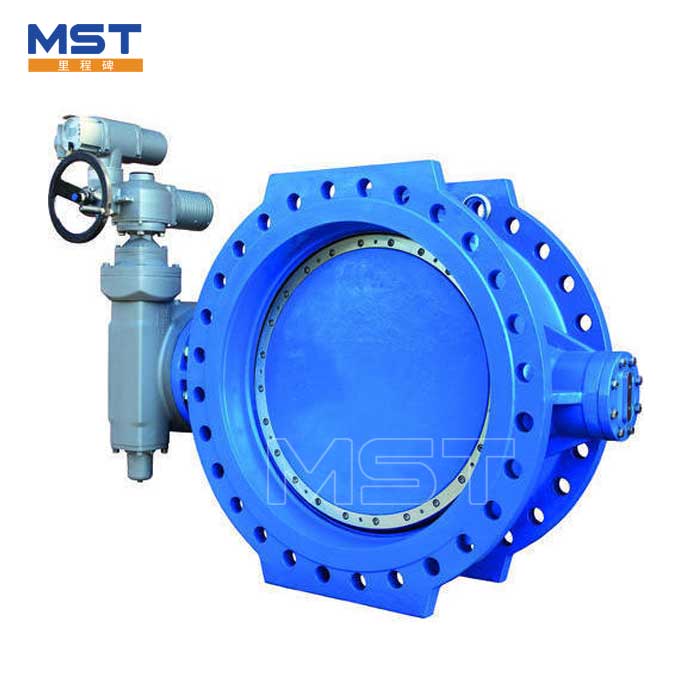

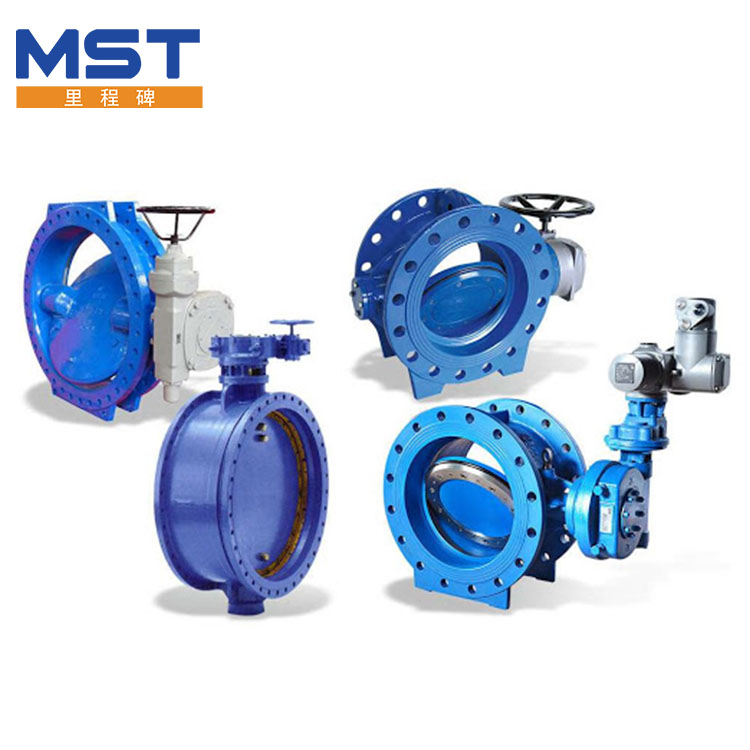

High Performance Double Offset Butterfly Valve

Buy High Performance Double Offset Butterfly Valve From Our Factory with High Quality in China
1.Introduction of High Performance Double Offset Butterfly Valve

Milestone Valve Co. Ltd. is a manufacturer specializing in the production of valves. It independently designs, develops, and produces various industrial valves such as butterfly valves, gate valves, ball valves, and check valves; among them, the independently developed High performance double offset butterfly valve is more resistant to high temperature and sealed It has better performance, better stability and longer service life. It is widely used in petroleum, chemical, smelting and other industries.

2. Technical Parameters of High Performance Double Offset Butterfly Valve

3.Application of High Performance Double Offset Butterfly Valve

High performance double offset butterfly valve is mainly used in the preheating system and dry dust removal system of the ironmaking blast furnace with large nominal diameter, low working pressure and opening and closing pressure difference, and high temperature (200～350 ℃). Air shut-off valve, combustion-supporting gas shut-off valve, gas inlet shut-off valve of heat exchanger system, flue gas inlet shut-off valve of heat exchanger system and gas shut-off valve of dry dust removal system, etc.

4.Features of High Performance Double Offset Butterfly Valve

1) The outer circumference of the disc and the sealing valve seat of the High performance double offset butterfly valve are processed into a hemispherical surface, and the inner spherical surface of the sealing valve seat is squeezed by the outer spherical surface of the disc to produce elastic deformation to achieve the purpose of closing tightly.
2) High performance double offset butterfly valve usually uses tetrafluoroethylene material as its sealing valve seat, but also can use Jinli sealing valve seat to improve its application in high temperature field.
3) High performance double offset butterfly valve The sealing surface of the butterfly plate and the valve seat is in line contact. If you are in a high-pressure environment, do not choose a metal sealing valve seat.

5. Packaging and Delivery

6. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
