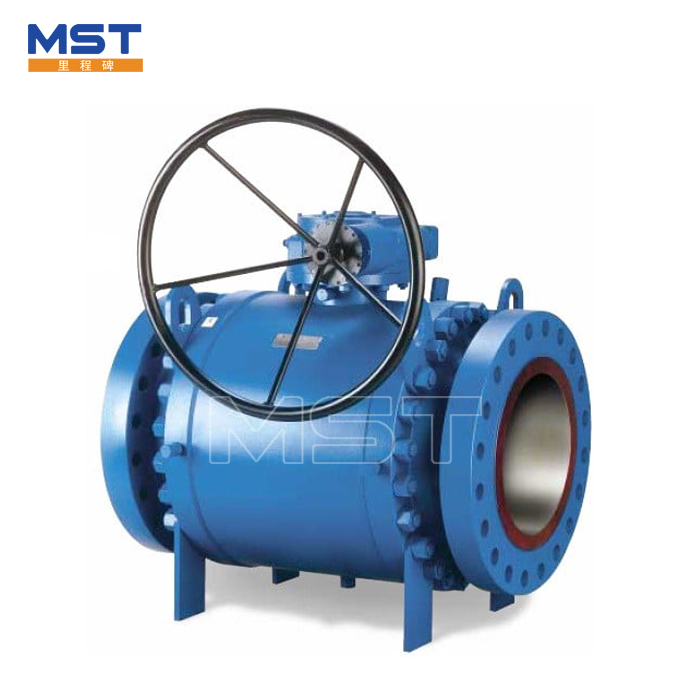

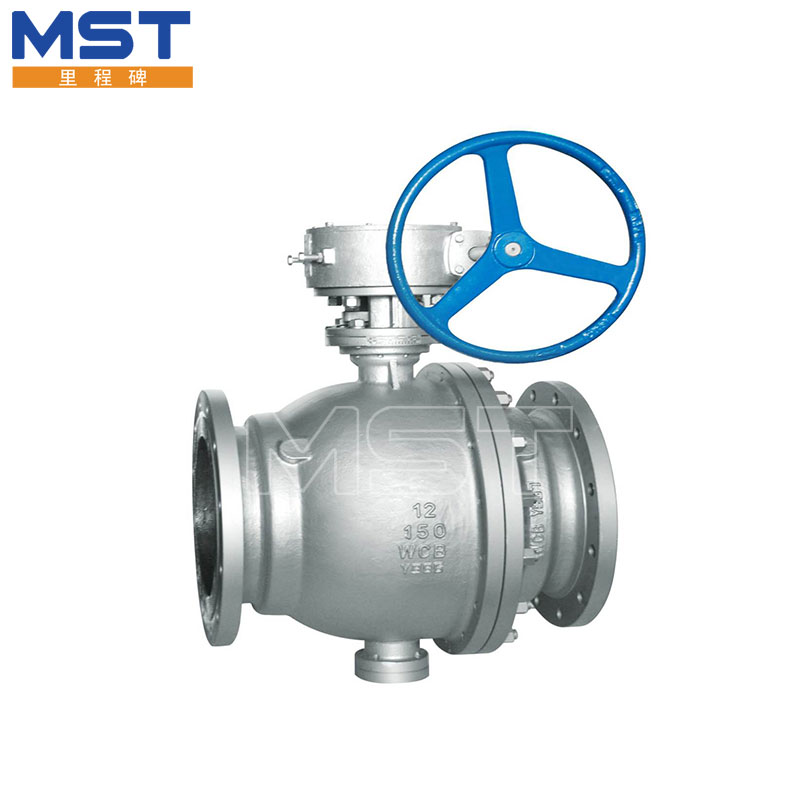

High Performance Forged Steel Fixed Ball Valve
  • High Performance Forged Steel Fixed Ball Valve High Performance Forged Steel Fixed Ball Valve
  • High Performance Forged Steel Fixed Ball Valve High Performance Forged Steel Fixed Ball Valve

High Performance Forged Steel Fixed Ball Valve

When the high performance forged steel fixed ball valve works, all the force produced by the fluid pressure in front of the valve on the ball is transferred to the bearing, which will not make the ball move to the valve seat. Therefore, the valve seat has small deformation, stable sealing performance and long service life, which is suitable for high pressure and large diameter applications.

Send Inquiry

Product Description

China High Performance Forged Steel Fixed Ball Valve Manufacturers and Suppliers with Free Sample
1.Introduction of High Performance Forged Steel Fixed Ball Valve

When the high performance forced steel fixed ball valve works, all the force produced by the fluid pressure in front of the valve on the ball is transferred to the bearing, which will not make the ball move to the valve seat. Therefore, the valve seat has small deformation, stable sealing performance and long service life, which is suitable for high pressure and large diameter applications. And advanced spring seat components, with self tightening characteristics, to achieve upstream sealing. Each valve has two seats, each direction can be sealed, so there is no flow restriction in the installation, it is a two-way seal. Widely used in natural gas, oil, chemical industry, metallurgy, urban construction, food and other industries.



2. Specific parameters of High Performance Forged Steel Fixed Ball Valve

Product Name
High Performance Forged Steel Fixed Ball Valve
DN
DN50~DN1200
Connection type
Flanged
PN(MPa)
1.6Mpa~32.0Mpa
Actuator type
Manual drive, Pneumatic, Hydraulic or electric Actuator
Temperature Range
-20℃-180℃
Standard
GB、DIN、API、ANSI
Body
Forged steel,WCB Cast steel, Stainless Steel
Applicable Medium
Water, oil, gas, and various corrosion medium



3.Product features of High Performance Forged Steel Fixed Ball Valve

1) High performance forced steel fixed ball valve can automatically relieve pressure: when the stagnant medium in the valve cavity rises abnormally due to the rising temperature, the safety valve installed on the valve seat or valve body can automatically relieve pressure.
2) High performance forced steel fixed ball valve Fireproof structure: double sealing is adopted. In case of fire, after the non-metal valve seat is burned, the medium will press the ball on the metal sealing surface of the valve body to prevent a large amount of medium leakage, which meets the requirements of api607.
3) High performance forced steel fixed ball valve Emergency sealing: in case of leakage caused by damage of valve seat and valve stem seal, injecting sealing grease through grease injection valve can play an instant emergency sealing role.
4) Stem lengthening of high performance forced steel fixed ball valve: the stem lengthening is suitable for underground installation and low temperature medium. The lengthening size is determined according to needs. The operation modes are manual, pneumatic, electric, pneumatic hydraulic, etc.
