High Performance Wafer Type Butterfly Valve

High Performance Wafer Type Butterfly Valve are classified as "quarter-turn" valves. When the metal disk that's part of the valve’s design is rotated a quarter of a turn, it opens or closes.

Send Inquiry

Product Description

Buy High Performance Wafer Type Butterfly Valve which Can be Customized From Our Factory in China
1.Introduction of High Performance Wafer Type Butterfly Valve

High Performance Wafer Type Butterfly Valve are classified as "quarter-turn" valves. When the metal disk that's part of the valve’s design is rotated a quarter of a turn, it opens or closes. The disk, referred to as the "butterfly" is attached to a rod. When the butterfly valve is opened all the way, the disc rotates (a 1/4 turn), allowing for a nearly unrestricted passing of the fluid. You can also open the valve gradually to reduce flow. Turning the butterfly (disk), to close the valve, blocks the passage of the fluid. This is due to the disc always being perpendicular or parallel to the flow, resulting in a pressure decrease regardless of the position it is in.

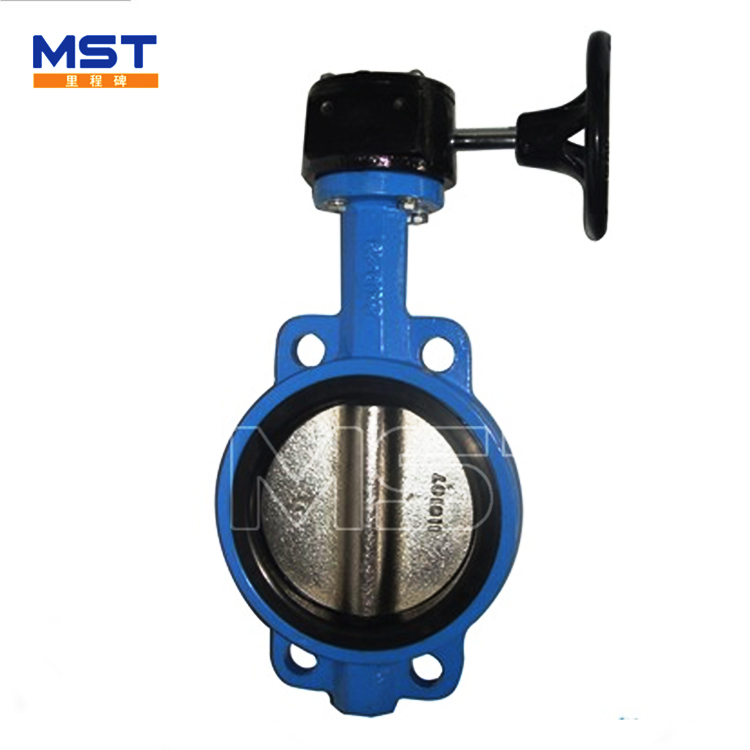

High Performance Wafer Type Butterfly Valve

2.Parameters of the High Performance Wafer Type Butterfly Valve


Type of Valve
High performance wafer type butterfly valve
DN
DN50~DN1200
PN(MPa)
1.0~1.6
Design Temperature Range
-15℃~150℃
Applicable Medium
Fresh water, Sewage, seawater, gas etc
Connection type
Wafer
Actuator type
Manual drive, Pneumatic, Hydraulic or electric Actuator
Sealing
Metal Hard Seal, Soft seal

Spare Parts
Material
Body
Gray Iron, Ductile Iron, Al-bronze,
Stainless Steel, Carbon steel
Disc
Ductile iron, Stainless Steel, Al-bronze
Shaft
Cast Iron, Stainless Steel
Seat
Rubber
Sealing
O-ring, NBR, EPDM, FKM


3.Feature of High Performance Wafer Type Butterfly Valve

High Performance Wafer Type Butterfly Valve function is to retain a seal to protect against dual-directional pressure differential in the flow of fluid. In other words, the wafer version of butterfly valves was designed to hold a tight seal, safeguarding against bi-directional pressure differential in order to avoid any backflow in systems that have been manufactured for uni-directional flow. This is accomplished by using a tightly fitted seal, such as an O-ring, gasket, precision machined, along with a flat valve face on the downstream and upstream sections of the valve.

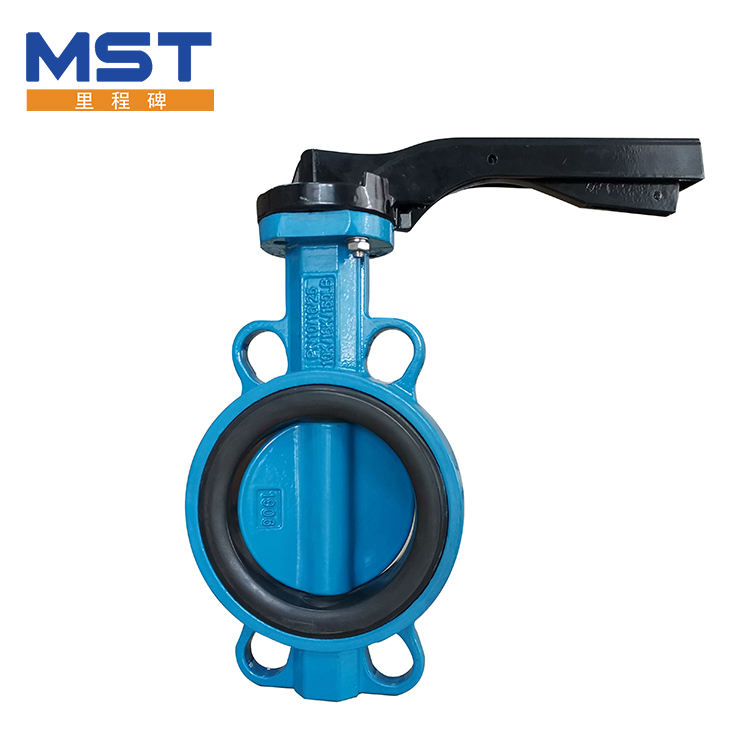

High Performance Wafer Type Butterfly Valve

4.Application of High Performance Wafer Type Butterfly Valve

High Performance Wafer Type Butterfly Valve is used in a number of applications for industrial sectors that include food processing, pharmaceutical, chemical, oil, water as well as waste water management. High Performance Wafer Type Butterfly Valve for the most part have replaced ball valves in a lot of industries. This is especially the case for those dealing with petroleum because of they are less expensive and easy to install. It's important to note that pipelines that contain butterfly valves can't be 'pigged' for cleaning. "Pigging" is the process of making use of devices referred to as "pigs" to carry out a variety of maintenance operations.



5.FAQ




6.About Tianjin Milestone Pump & Valve Co.,Ltd.




7.Contact Information

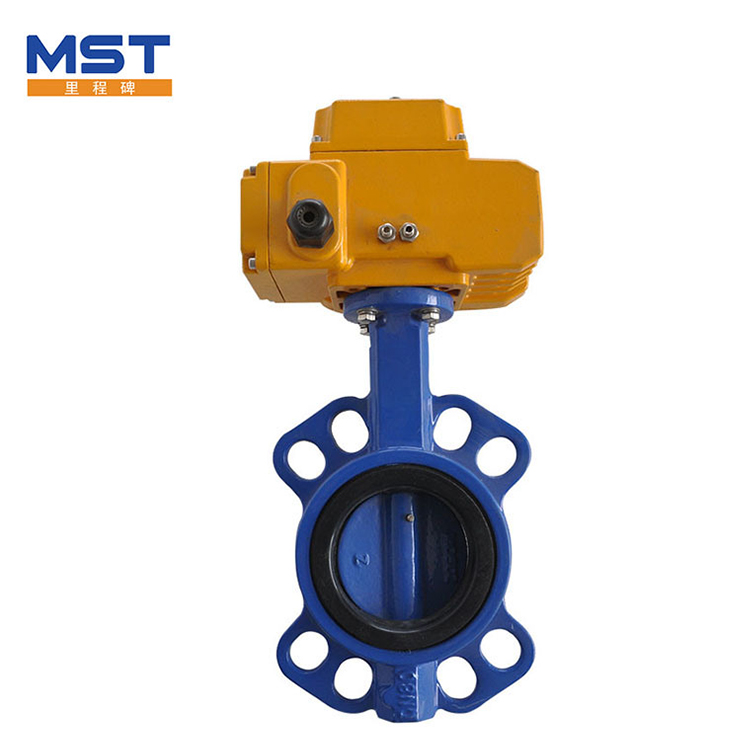

The Motorized Butterfly Valve
