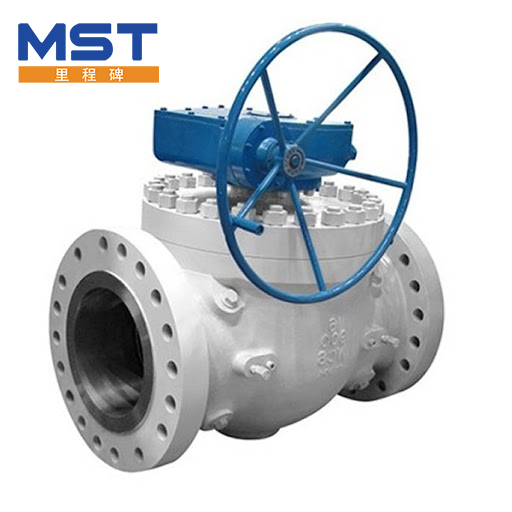

High Pressure Ball Valve for Natural Gas
  • High Pressure Ball Valve for Natural Gas High Pressure Ball Valve for Natural Gas

High Pressure Ball Valve for Natural Gas

Milestone Valve Company, a professional valve manufacturer, is an enterprise integrating industry and trade. It can produce high-performance butterfly valves, gate valves, ball valves, etc., which are widely used in industry. Among them, the high pressure ball valve for natural gas structure has its own advantages, such as no friction on the switch, no easy wear on the seal, small opening and closing torque, etc., which can reduce the size of the actuator. With multi rotary electric actuator, the medium can be adjusted and cut off tightly.

Send Inquiry

Product Description

Customized High Pressure Ball Valve for Natural Gas Manufacturers and Suppliers with Free Sample
1.Introduction of High Pressure Ball Valve for Natural Gas

Milestone Valve Company, a professional valve manufacturer, is an enterprise integrating industry and trade. It can produce high-performance butterfly valves, gate valves, ball valves, etc., which are widely used in industry. Among them, the high pressure ball valve for natural gas structure has its own advantages, such as no friction on the switch, no easy wear on the seal, small opening and closing torque, etc., which can reduce the size of the actuator. With multi rotary electric actuator, the medium can be adjusted and cut off tightly.


2. Technical Parameters of High Pressure Ball Valve for Natural Gas


Type of Valve
Ball Valve for Natural Gas
DN
DN15~DN250
PN(MPa)
1.6~4.0Mpa
Design Temperature Range
-15℃~425℃
Connection type:
Flanged, Butt weld
Actuator type
Manual drive, Pneumatic, Hydraulic or electric Actuator
Sealing
Metal Hard Seal
Applicable Medium oil, gas, and various corrosion medium

Spare Parts
Material
Body

Forged steel, Cast steel, Stainless Steel,

Ball
Forged steel, Cast steel, Stainless Steel,
Stem
Forged steel,Stainless Steel,
Seat ring
Forged steel,Stainless Steel,
Seat
PTFE, RPTFE, NYLON, PEEK, PPL, POM, DEVLON
Gasket
Stainless Steel, flexible graphite spiral wound
PackingPTFE, flexible graphite



3.Application of High Pressure Ball Valve for Natural Gas:

1) High pressure ball valve for natural gas is often used to cut off or connect the medium in the exploitation, refining and processing of oil, natural gas, coal and ore and pipeline transportation system.
2) High pressure ball valve for natural gas can be used as special ball valve and ash discharge valve for pulverized coal injection; It is especially suitable for blast furnace pulverized coal injection, dust and solid powder pipeline system, air pipeline and spray gun pipeline.
3) High pressure ball valve for natural gas is not only suitable for general working media such as water, solvent, acid and natural gas, but also suitable for media with poor working conditions, such as oxygen, hydrogen peroxide, methane and ethylene.
4) High pressure ball valve for natural gas can also be widely used in oil, chemical, urban water supply and drainage and other conditions requiring strict cut-off.


4.Advantages of High Pressure Ball Valve for Natural Gas:

1) High pressure ball valve for natural gas has small resistance, and its resistance coefficient is equal to that of the same length of pipe.
2) High pressure ball valve for natural gas is easy to operate and can be opened and closed quickly. From full open to full close, it only needs to rotate 90 degrees °, It is convenient for remote control.
3) When high pressure ball valve for natural gas is fully open or closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not cause erosion of the valve sealing surface.

5. Packaging and Delivery


6. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
