Milestone as a professional high quality Metal seated gate valve manufacturer, you can rest assured to buy Metal seated gate valve from our factory and we will offer you the best after-sale service and timely delivery.

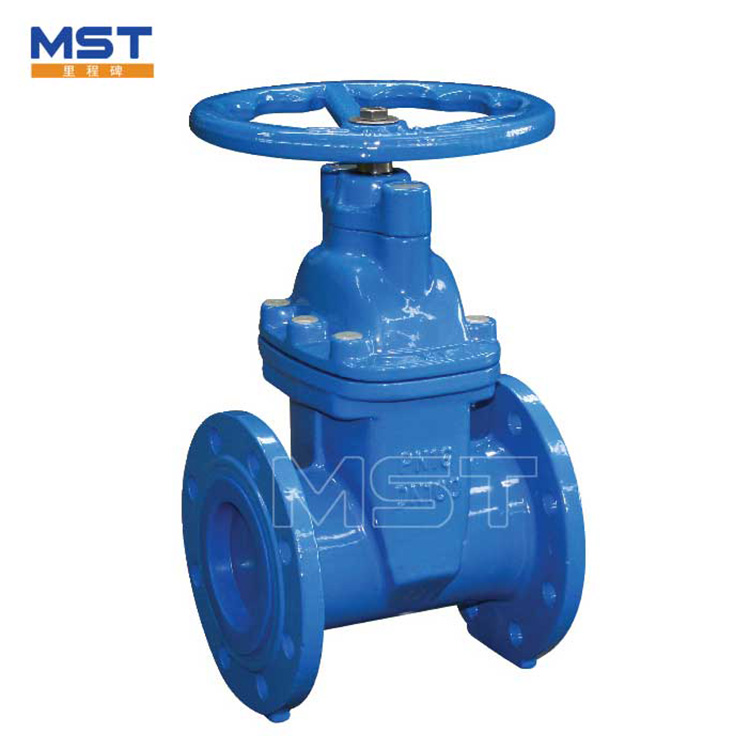

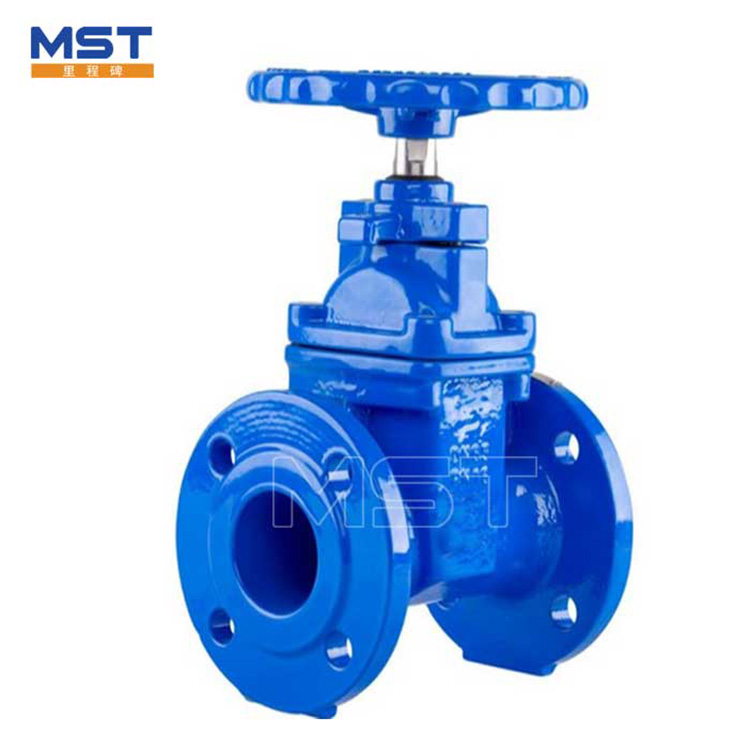

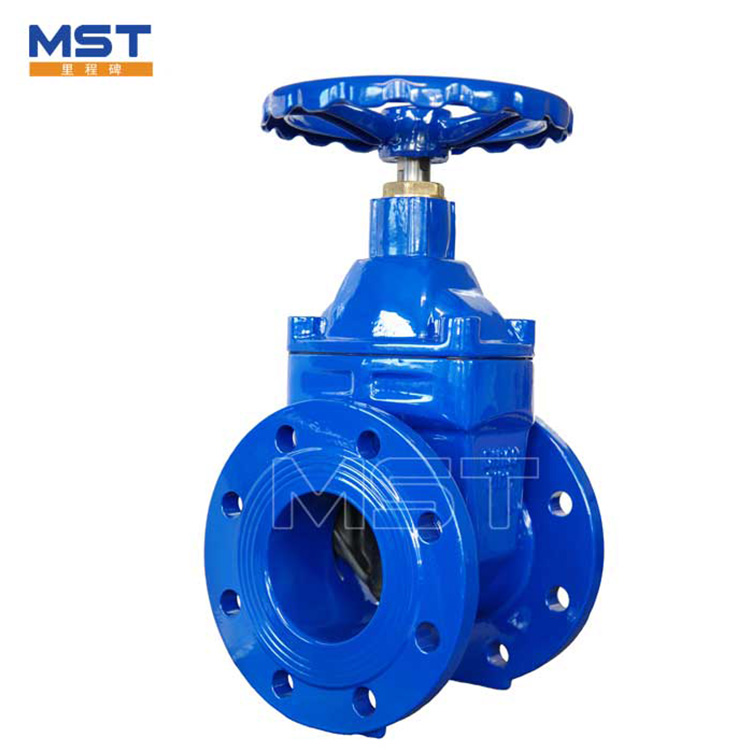

Metal seated gate valve is primarily designed for the flow isolation of a length of pipeline or piece of equipment. It uses a ductile iron gate that houses bronze rings to ensure a watertight seal. Metal seated gate valvefor water and neutral liquids,to max. 70°C.
Connection |
Flanged |
Material |
Ductile Iron |
DN |
DN80 - DN300 |
PN |
PN16 |
Closing direction |
Clockwise Close |
2. Features of Metal seated gate valve
1)Bronze wedge nut of Metal seated gate valve with lubricating abilities providing optimum compatibility with stem;
2)The face ring that is firmly secured to the wedge is machined to a fine surface finish to ensure optimum contact seal with body seat ring.
3) Wedge with guides of Metal seated gate valve, which ensures a uniform closure
4) large through bore housing for the stem in the wedge prevents stagnant water or impurities
5)Metal seated gate valve have stainless steel stem and bolts for increased corrosion resistance.
6)Seal housing incorporates innerouter o-ring seals and wiper ring for long life operation
7)Stem sealing replaceable under pressure
8)Round bonnet gasket fixed in a recess to prevent blowout with integral bolt sealing;
9)Full bore of metal seated gate valve
10)Blue fusion bonded epoxy coating according to ASNZS 4158
