Motorized Butterfly Valve With Actuator Operator

Motorized Butterfly Valve With Actuator Operator is a valve used for flow regulation in large pipe diameters in which the disc takes the form of disk. Operation is similar to that of a ball valve. A plate or disc is positioned in the center of the pipe. The disc has a rod passing through it that is connected to an actuator on the outside of the valve.

Send Inquiry

Product Description

Buy Motorized Butterfly Valve With Actuator Operator which Can be Customized From Our Factory in China
1.Introduction of Motorized Butterfly Valve With Actuator Operator

Motorized Butterfly Valve With Actuator Operator is a valve used for flow regulation in large pipe diameters in which the disc takes the form of disk. Operation is similar to that of a ball valve. A plate or disc is positioned in the center of the pipe. The disc has a rod passing through it that is connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

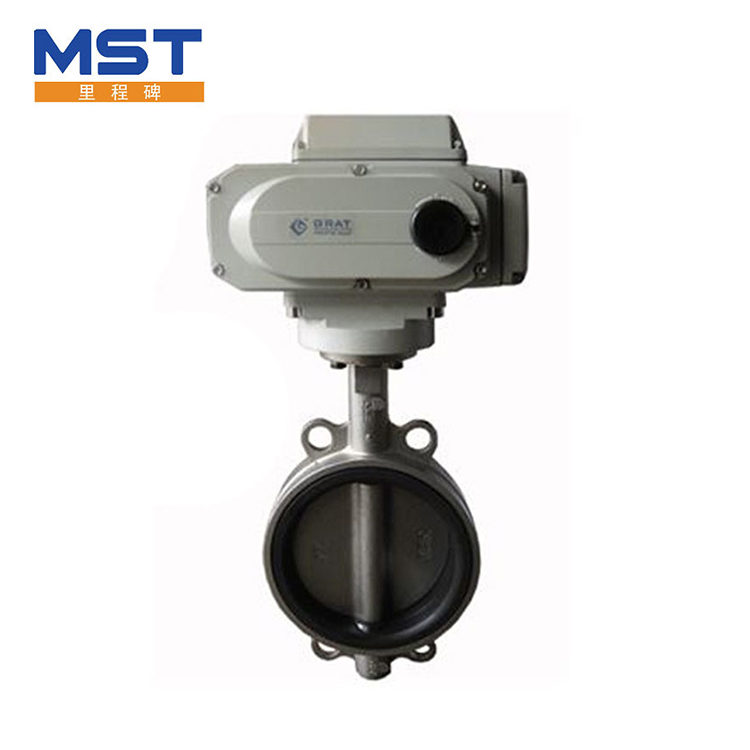

Motorized Butterfly Valve With Actuator Operator

2.Overview of Motorized Butterfly Valve With Actuator Operator

Motorized Butterfly Valve With Actuator Operator, control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe or by two semicircular plates hinged on a common spindle, which permits flow in only one direction. These valves offer a rotary stem movement of 90 degrees or less, in a compact design. Unlike ball valves, they do not have any pockets in which fluids may become trapped when the valve is closed. Motorized butterfly valve with actuator operator is quick opening valves that consist of a metal circular disc or vane with its pivot axes at right angles to the direction of flow in the pipe, which when rotated on a shaft, seals against seats in the valve body. They are normally used as throttling valves to control flow.

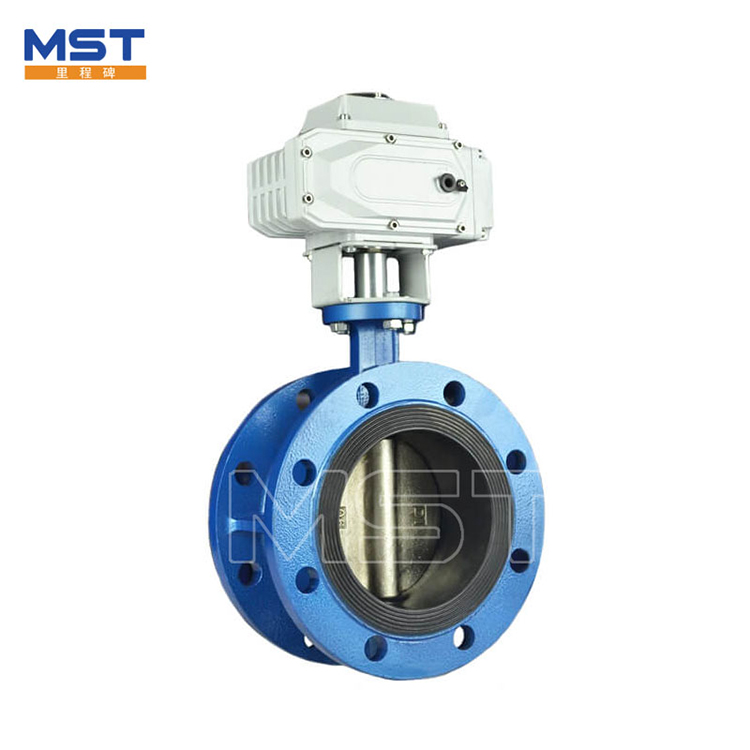

Motorized Butterfly Valve With Actuator Operator

From a family of valves called quarter-turn valves, the "Motorized Butterfly Valve With Actuator Operator" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid.


3.Application Of Motorized Butterfly Valve With Actuator Operator



4.FAQ




5.About Tianjin Milestone Pump & Valve Co.,Ltd.




6.Contact Information


The Motorized Butterfly Valve
