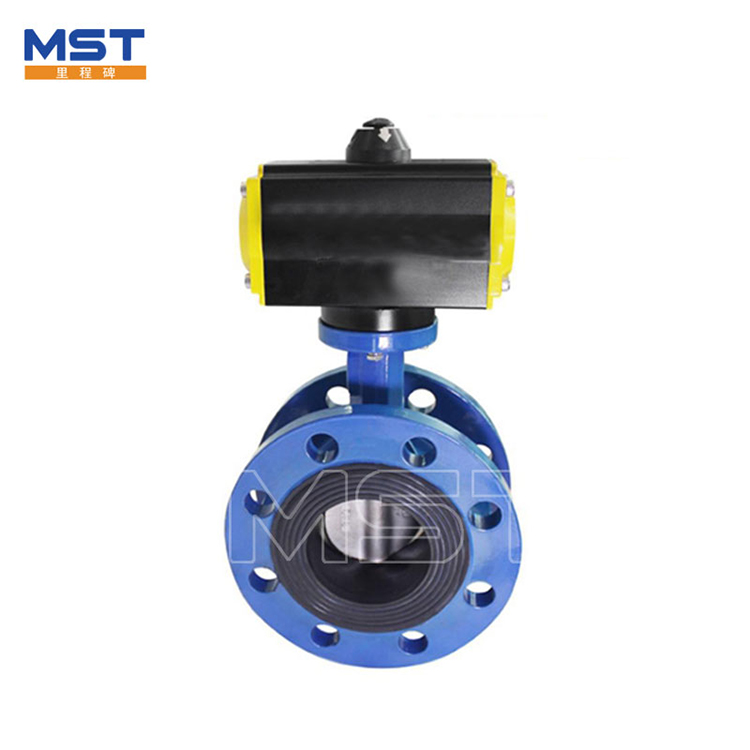

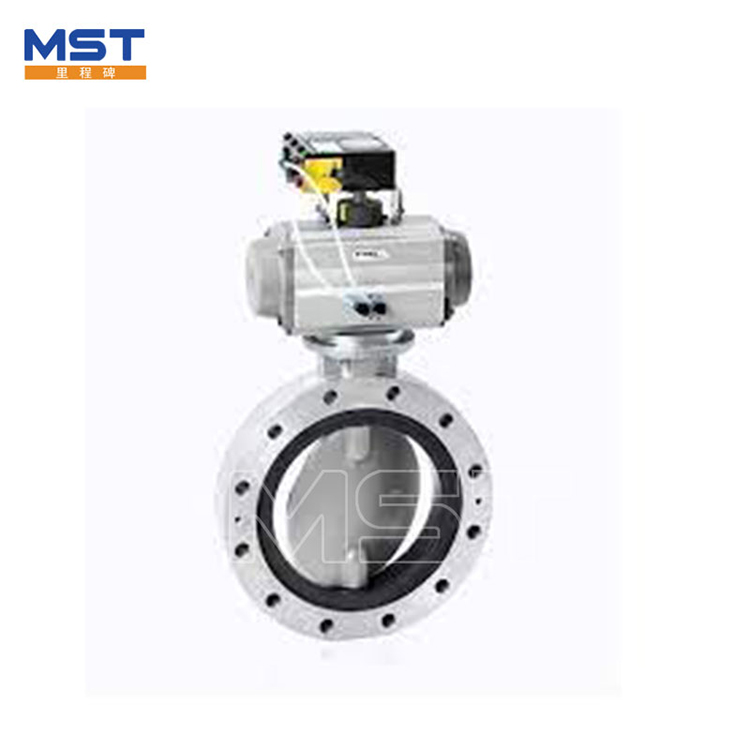

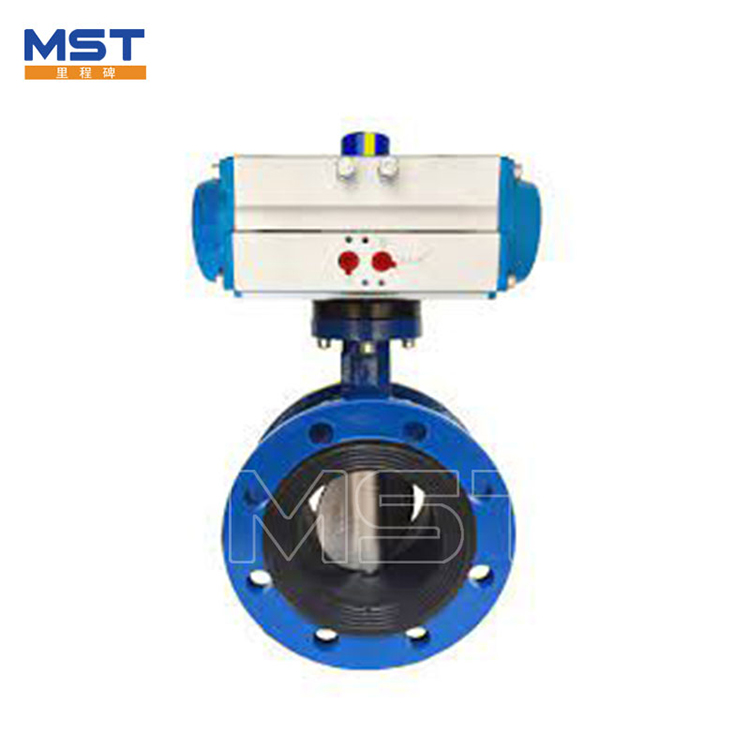

Pneumatic Flange Soft Seal Butterfly Valve

Customized Pneumatic Flange Soft Seal Butterfly Valve From Our Factory with High Quality in China
1.Introduction of Pneumatic Flange Soft Seal Butterfly Valve

Pneumatic flange soft seal butterfly valve has compact structure, easy 90 ° rotary switch, reliable sealing and long service life. It is widely used for water supply and drainage in waterworks, power plants, steel mills, papermaking, chemical industry, catering and other systems as regulating and cut-off valves.

2. The Main Features of Pneumatic Flange Soft Seal Butterfly Valve Are As Follows:

1) The pneumatic flange soft seal butterfly valve adopts the double eccentric structure, which has the sealing function that the closer it is, the tighter it is, and the sealing performance is reliable.
2) Pneumatic flange soft seal butterfly valve is made of stainless steel and NBR, which has long service life.
3) Pneumatic flange soft seal butterfly valve rubber sealing ring can be located on the valve body or butterfly plate. It can be applied to different media for users to choose.
4) The pneumatic flange soft seal butterfly valve adopts frame structure, with high strength, large flow area and small flow resistance.
5) Pneumatic flange soft seal butterfly valve can effectively prevent corrosion, and can be used in different media as long as the sealing material of sealing valve seat is replaced.
6) Pneumatic flange soft seal butterfly valve has the function of two-way sealing. It can be installed in any direction without the control of medium flow direction or the influence of space position.
7) Pneumatic flange soft seal butterfly valve has unique structure, flexible operation, labor saving and convenience.

3.Application of Pneumatic Flange Soft Seal Butterfly Valve
