Pneumatic Thread Ball Valve

Pneumatic Threaded Ball Valve means a regular threaded ball valve with a pneumatic actuator. Pneumatic Thread Ball Valves are designed for quick opening and closing. The valve comprises of a split 2-piece body with PTFE seats. The pneumatic actuator offers single acting or double acting options.

Send Inquiry

Product Description

Customized Pneumatic Thread Ball Valve From Our Factory with High Quality in China
1.What is the Pneumatic Thread Ball Valve

Pneumatic Threaded Ball Valve means a regular threaded ball valve with a pneumatic actuator. Pneumatic Thread Ball Valves are designed for quick opening and closing. The valve comprises of a split 2-piece body with PTFE seats. The pneumatic actuator offers single acting or double acting options. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. Single acting (Spring return) actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal. They rotate 90 degrees (quarter-turn) from fully open to fully closed.  This unit give an exceptional combination, that offers trouble free operation coupled with high performance. Pneumatic Thread Ball Valve in Stainless Steel with various seat permutations and many accessories which can be fitted onto the actuator such as switch boxes, solenoids, positioners and filter pressure reducing valves.

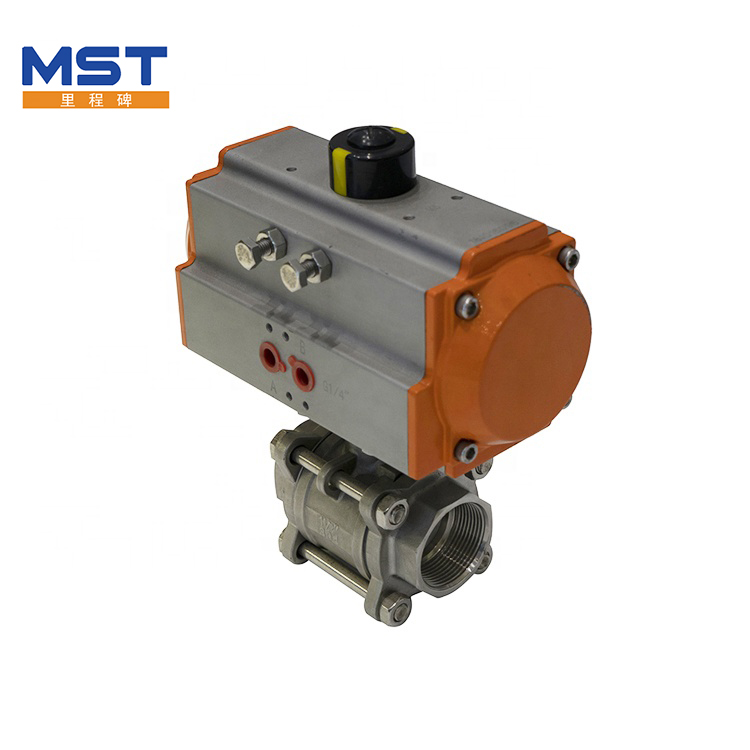

Pneumatic Thread Ball Valve

2.The specification of Pneumatic Thread Ball Valve

Nominal Diameter: DN10-DN50
Nomianl Pressure: PN1.6/2.5/4.0Mpa

3. How to install a Pneumatic Thread Ball Valve

Pneumatic Thread Ball Valves may be installed in vertical or horizontal pipe runs, they are bi-directional therefore flow direction is not critical, however the best practice is to set up the valve handle to point in the direction of flow whenever possible. The Pneumatic Thread Ball Valve stem orientation is not critical, however any deviation from vertical is a compromise. Installation upside down is not recommended because it can cause dirt to accumulate by the stem packing. The best practice is to install with the valve stem facing upwards whenever possible.


4.Features of Pneumatic Thread Ball Valve

Low flow resistance
Simple structure
Small size and light weight
The sealing surface material of the ball valve is made of plastic, which has good sealing performance
Convenient operation, rapid opening and closing, convenient for remote control
When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the passage of the medium will not cause the erosion of the valve sealing surface
