Rubber Flap Check Valve

The rubber flap check valve is mainly composed of valve body, the valve cover and the rubber flap. The valve is mainly suitable for horizontal installation of water supply and drainage systems. It can be installed at the outlet of the water pump to prevent backflow and water hammer from damaging the pump. This valve can also be installed on the bypass pipe of the reservoir to prevent the pool water from flowing back into the water supply system.

Send Inquiry

Product Description

Customized Rubber Flap Check Valve Manufacturers, Suppliers and Factory with High Quality
1.Introduction of Rubber Flap Check Valve

The rubber flap check valve is mainly composed of valve body, the valve cover and the rubber flap. The valve is mainly suitable for horizontal installation of water supply and drainage systems. It can be installed at the outlet of the water pump to prevent backflow and water hammer from damaging the pump. This valve can also be installed on the bypass pipe of the reservoir to prevent the pool water from flowing back into the water supply system.

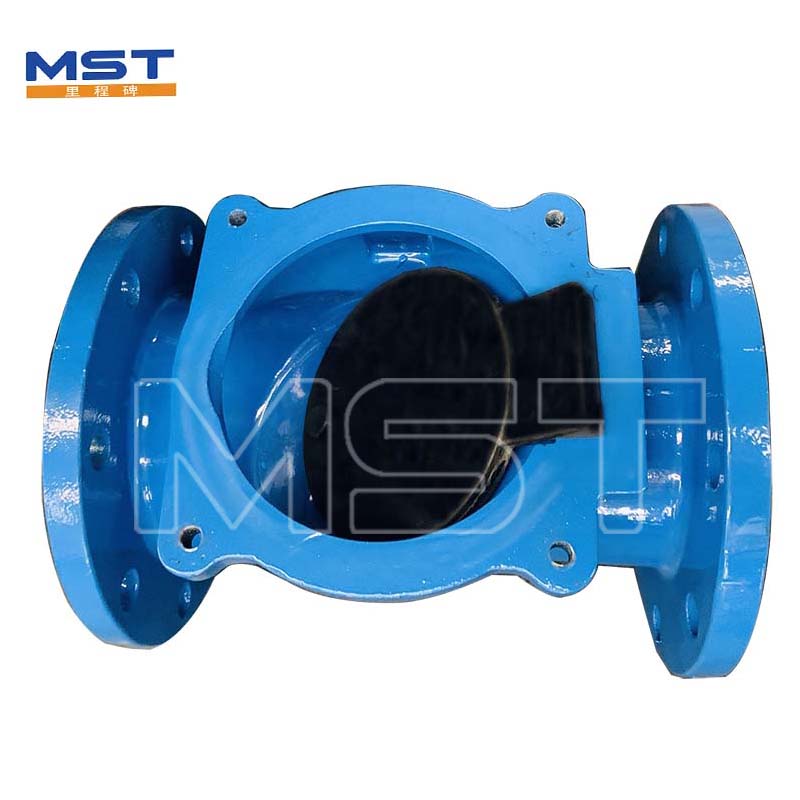

The rubber flap is made of steel plate, steel rod and reinforced nylon cloth as the backing, and the outer layer is made of rubber.

2. Technical Specification of Rubber Flap Check Valve

Nominal Pressure
1.0-1.6 Mpa
Nominal Diameter
50-600mm
Medium
Water and slightly corrosive liquids
Temperature
0-80 degree
Flange Standard
GB/T 17241.6 GB/T9113
Test Standard
GB/T 13927 API598


3.Main Parts Material of Rubber Flap Check Valve

Valve Body
Cast Iron
Bonnet
Cast Iron
Valve Clack
Steel and reinforced nylon
