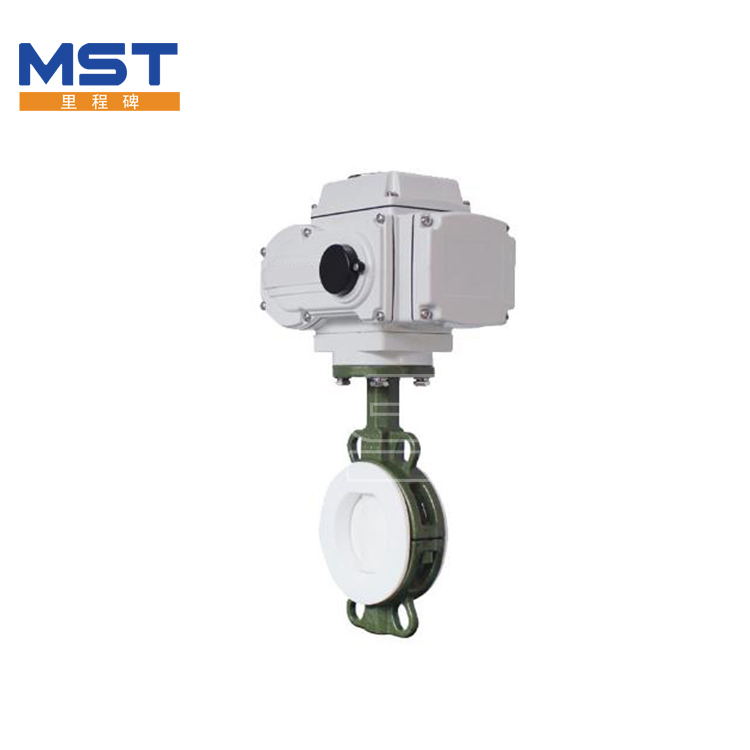

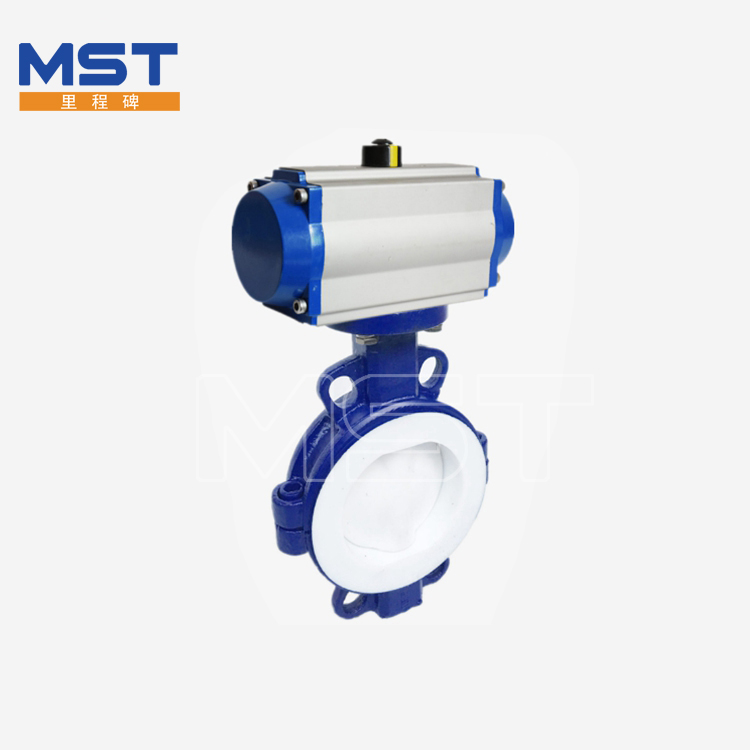

Rubber Lined Butterfly Valve

The butterfly plate of the rubber lined butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis of the valve stem, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is in a fully open state. Rubber lined butterfly valve should generally be installed horizontally in the pipeline.

Send Inquiry

Product Description

Buy Rubber Lined Butterfly Valve From Our Factory with High Quality in China

1.Introduction of Rubber Lined Butterfly Valve

The butterfly plate of the rubber lined butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis of the valve stem, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is in a fully open state. Rubber lined butterfly valve should generally be installed horizontally in the pipeline.

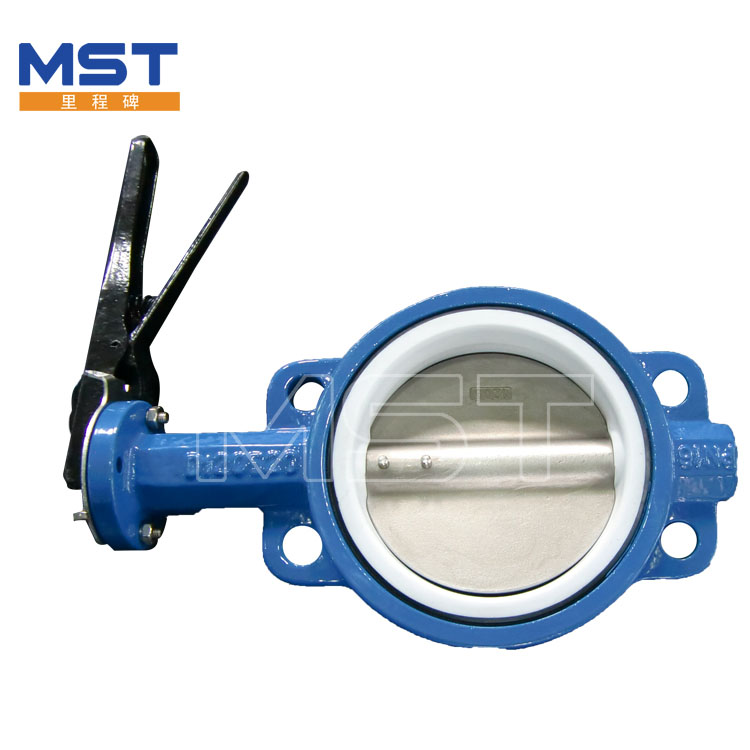

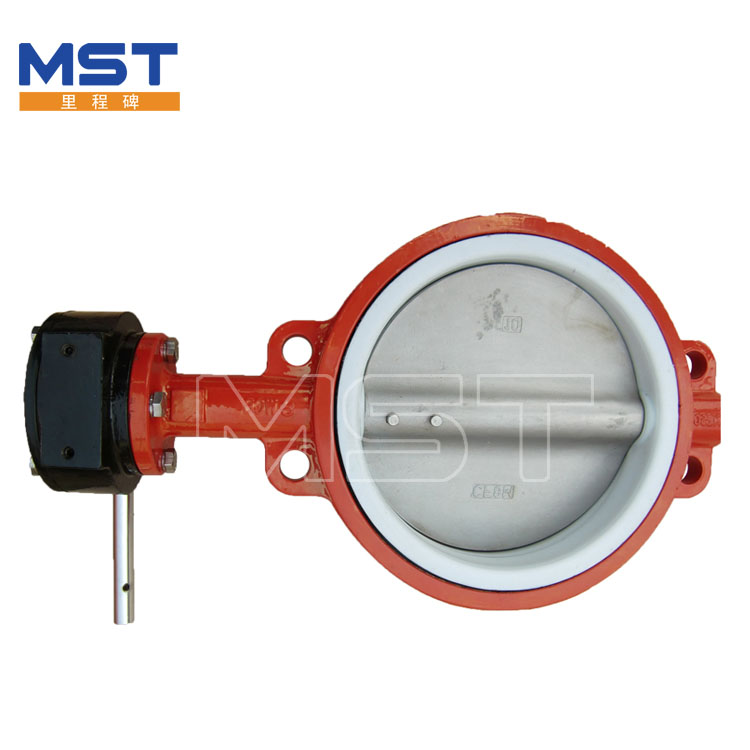

Rubber Lined Butterfly Valve

Rubber Lined Butterfly Valve


2.Material of Rubber Lined Butterfly Valve

NO. NAME MATERIAL SPECIFICATION
JIS ASTM
1 BODY CARBON STEEL SC480 A216Gr.WCB
STAINLESS STEEL SCS 13A A351 Gr CF8
SCS 14A A351 Gr CF8M
SCS 16A A351 Gr CF3M
2 DISC STAINLESS STEEL SCS 13A A351 Gr CF8
SCS 14A A351 Gr CF8M
SCS 16A A351 Gr CF3M
3 RETAINER STAINLESS STEEL SCS 13A A351 Gr CF8
SCS 14A A351 Gr CF8M
SCS 16A A351 Gr CF3M
4 TEFLON SEAT PTFE PTFE PTFE
PTFE+CLASS FIRER /RPTFE /RPTFE
PTFE+GRARHITE
5 BUSHING PTFE+316SS PTFE+316SS PTFE+316SS
6 BUSHING PTFE+316SS PTFE+316SS PTFE+316SS
7 STEM STAINLESS STEEL SUS 304 A182 Gr.F304
SUS 316 A182 Gr.F316
630SS A564 Gr.630
XM-19 A479 Gr.XM-19
8 PIN STAINLESS STEEL SUS 316 A240 Gr.316
9 THRUST RING STAINLESS STEEL SUS316 A240 Gr.316
10 SEAL PTFE PTFE PTFE
11 BOTTOM COVER STAINLESS STEEL SCS 13A A351 Gr.CF8
SCS 14A A351 Gr.CF8M
SCS 16A A351 Gr.CF3M
  A216 Gr.WCB
CARBON STEEL SC480 A216 Gr.WCB
12 GLAND PACKING PTFE PTFE PTFE
PTFE+GRAPHITE RPTFE RPTFE
13 GLAND STAINLESS STEEL SCS 13A A351 Gr.CF8
SCS 14A A351 Gr.CF8M
14 YOKE DUCTILE IRON FCD 450 A536 Gr.65-45-12
CARBON STEEL SC480 A216 Gr.WCG
15 STUD STAINLESS STEEL SUS304 A193 Gr.B8
16 NUT STAINLESS STEEL SUS304 A194 Gr.8
17 BOLT STAINLESS STEEL SUS304 A193 Gr

The valve body adopts a split type, and the seal at both ends of the valve shaft is controlled by adding fluorine rubber to the rotating base surface between the butterfly plate and the valve seat; to ensure that the valve shaft does not contact the fluid medium in the cavity. At present, rubber lined butterfly valves, as a component used to realize on-off and flow control of pipeline systems, have been used in many fields such as petroleum, chemical industry, metallurgy, and hydropower.


3. About MST Valve Co., Ltd.

4. Packaging and Delivery


5. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
