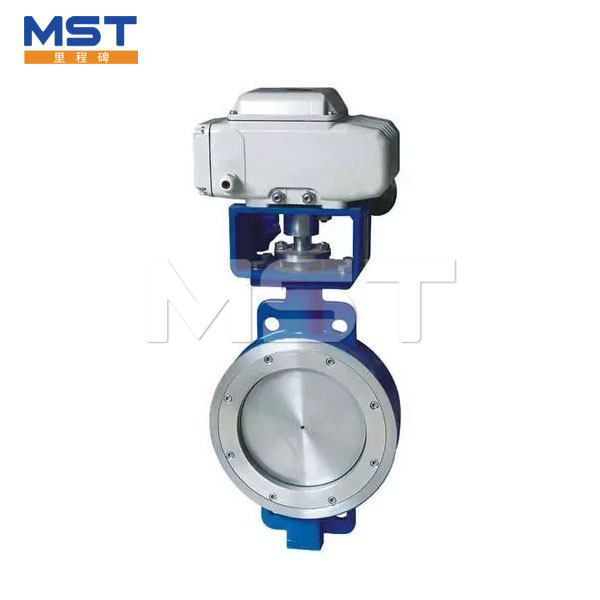

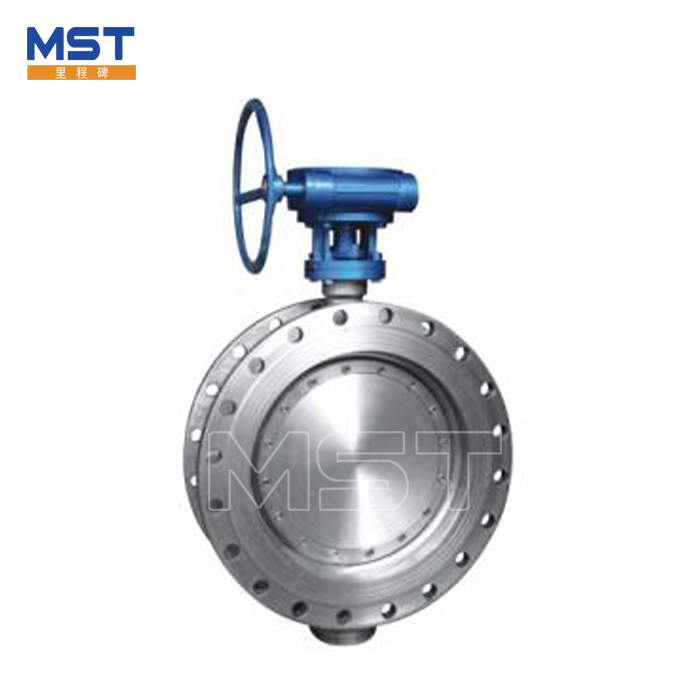

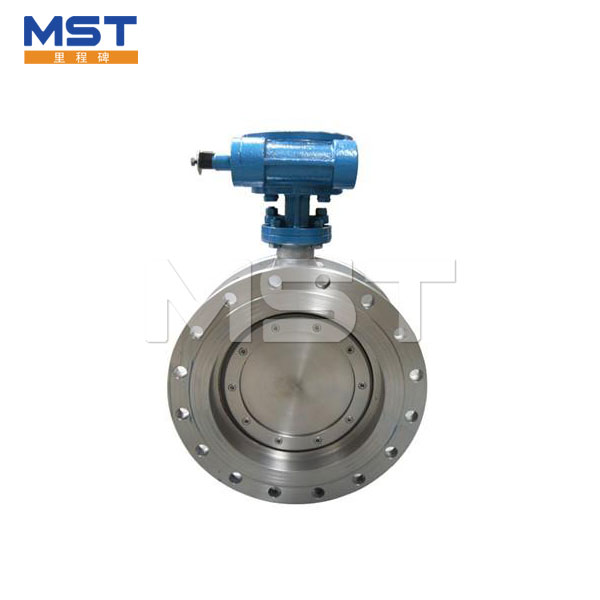

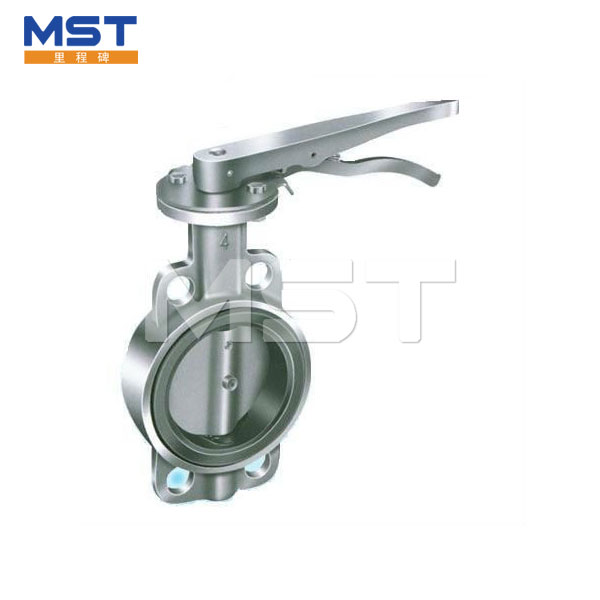

  • Stainless Steel Butterfly Valve - 0 Stainless Steel Butterfly Valve - 0
  • Stainless Steel Butterfly Valve - 1 Stainless Steel Butterfly Valve - 1
  • Stainless Steel Butterfly Valve - 2 Stainless Steel Butterfly Valve - 2
  • Stainless Steel Butterfly Valve - 3 Stainless Steel Butterfly Valve - 3

Stainless Steel Butterfly Valve

Stainless steel butterfly valve, also known as stainless steel flap valve, adopts three eccentric multi-layer metal hard seal structure; Stainless steel butterfly valve is widely used in metallurgy, electric power, petrochemical, water supply and drainage and municipal construction industries where the medium temperature is ≤425℃ On the pipeline, it is used for adjusting the flow rate and carrying and breaking the fluid. The stainless steel butterfly valve adopts a triple eccentric structure. The valve seat and the sealing surface of the disc plate are made of different hardness and stainless steel, which has good corrosion resistance and long service life.

Send Inquiry

Product Description
Customized Stainless Steel Butterfly Valve From Our Factory with High Quality in China


1.Introduction of Stainless steel butterfly valve

Stainless steel butterfly valve, also known as stainless steel flap valve, adopts three eccentric multi-layer metal hard seal structure; Stainless steel butterfly valve is widely used in metallurgy, electric power, petrochemical, water supply and drainage and municipal construction industries where the medium temperature is ≤425℃ On the pipeline, it is used for adjusting the flow rate and carrying and breaking the fluid. The stainless steel butterfly valve adopts a triple eccentric structure. The valve seat and the sealing surface of the disc plate are made of different hardness and stainless steel, which has good corrosion resistance and long service life.

Stainless Steel Butterfly Valve


2.Performance parameters of Stainless steel butterfly valve:

Type of Valve Stainless steel butterfly valve
DN DN200~DN3000
PN(MPa) 0.6~1.6
Design Temperature Range -15℃~200℃
Connection type: Flanged, Wafer ,Butt weld, Lug
Actuator type Manual drive, Pneumatic, Hydraulic or electric Actuator
Sealing Soft seal, Metal Hard Seal
Applicable Medium Water, oil, gas, and various corrosion medium

Material of main parts

Spare Parts Material
Body Stainless Steel
Disc Stainless Steel
Shaft Stainless Steel
Seat Rubber
Stem Stainless steel, duplex steel
Sealing O-ring, NBR, EPDM, FKM

3.Application of Stainless steel butterfly valve:

Stainless steel butterfly valve, as a component used to realize the on-off and flow control of the pipeline system, has been widely used in many fields such as petroleum, chemical industry, metallurgy, and hydropower. But because of the Stainless steel butterfly valve
Due to the limitation of structural characteristics, it is not suitable for industries such as high temperature resistance, high pressure resistance, corrosion resistance, and wear resistance.


4.Advantages of stainless steel butterfly valve

1) The Stainless steel butterfly valve is convenient to open and close quickly, saves effort, has low fluid resistance, and can be operated frequently.
2) Stainless steel butterfly valve has simple structure, small size and light weight.
3) The Stainless steel butterfly valve can transport mud, with the least accumulation of liquid at the pipe mouth.
4) The stainless steel butterfly valve can achieve a good seal under low pressure.
5) Stainless steel butterfly valve has good regulation performance.


5.Classification of Stainless steel butterfly valve:

1) Stainless steel butterfly valve can be divided into offset plate type, vertical plate type, inclined plate type and lever type according to the structure.
2) Stainless steel butterfly valve can be divided into two types according to the sealing type: relatively sealed type and hard sealed type. The soft seal type generally uses a rubber ring seal, and the hard seal type usually uses a metal ring seal.
3) Stainless steel butterfly valve can be divided into flange connection and wafer connection according to the connection type;
4) According to the transmission mode, Stainless steel butterfly valve can be divided into manual, gear transmission, pneumatic, hydraulic and electric.


6.Packaging and Delivery


7. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
