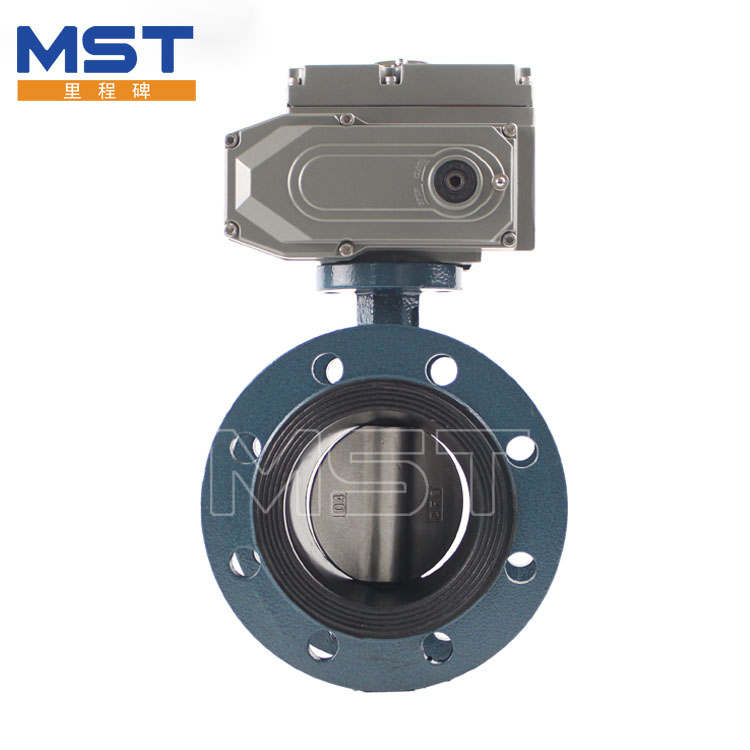

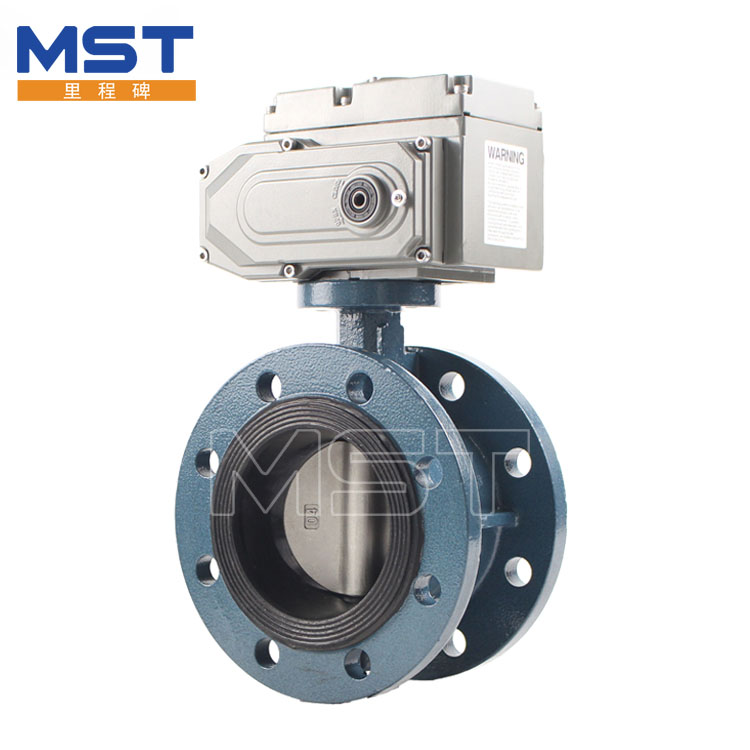

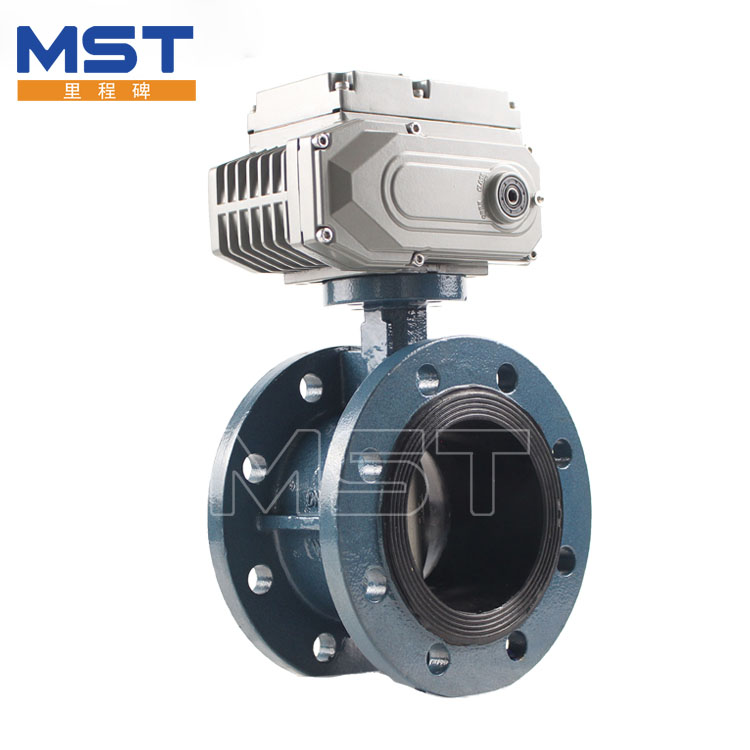

The motorized butterfly valve is composed of electric actuator and butterfly valve. According to different working modes and working conditions, it can be divided into switch control type and intelligent adjustment type. The sealing form is divided into soft seal and hard seal. Through the electric actuator, the rotating valve rod drives the disc plate to open and close in the range of 0°-90°.
The structure of motorized butterfly valve can be divided into two types: wafer type and flange type. When the pressure is high and the diameter exceeds DN600mm, it is recommended to use flange type electric butterfly valve.
2. Technical Parameter of motorized butterfly valve
PN(MPa)
0.6~1.6
Design Temperature Range
-29℃~425℃
Applicable Medium
Hot water, Steam, Petroleum, gas, chemical industry, water treatment, etc
Construction type
Center line type, single eccentricity, double eccentricity and triple eccentricity
Connection type:
Flange, Lug
Actuator type
Handle
Sealing
Metal Hard Seal, Soft seal
3. Material of motorized butterfly valve
Spare Parts
Material
Body
Carbon steel, stainless steel, Cr Mo Ba steel, etc
Disc
Carbon steel, stainless steel, Cr Mo Ba steel, etc
Stem
Stainless Steel
Packing
Flexible graphite, fluoroplastics
Sealing
Rubber, PTFE, stainless steel, cemented carbide
4. Features of motorized butterfly valve
1. The motorized butterfly valve is a kind of valve which can be controlled remotely and can be used as large diameter butterfly valve
2. The power supply is the driving energy of the electric butterfly valve, with wide power source, wide application range and higher work efficiency
3. The motorized butterfly valve is easy to operate.
4.Motorized butterfly valve can realize mechanical self-locking, and the sealing ring can be made of different materials to meet the requirements of working conditions
5. About MST Valve Co., Ltd.
6. Packaging and Delivery
Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
Could you offer OEM service ?
A: Yes, OEM is availble.
How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L/C is OK
What’s the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it’s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
What’s the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
What is your products standardization?
A: GB/T12238-2008, JB/T 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
