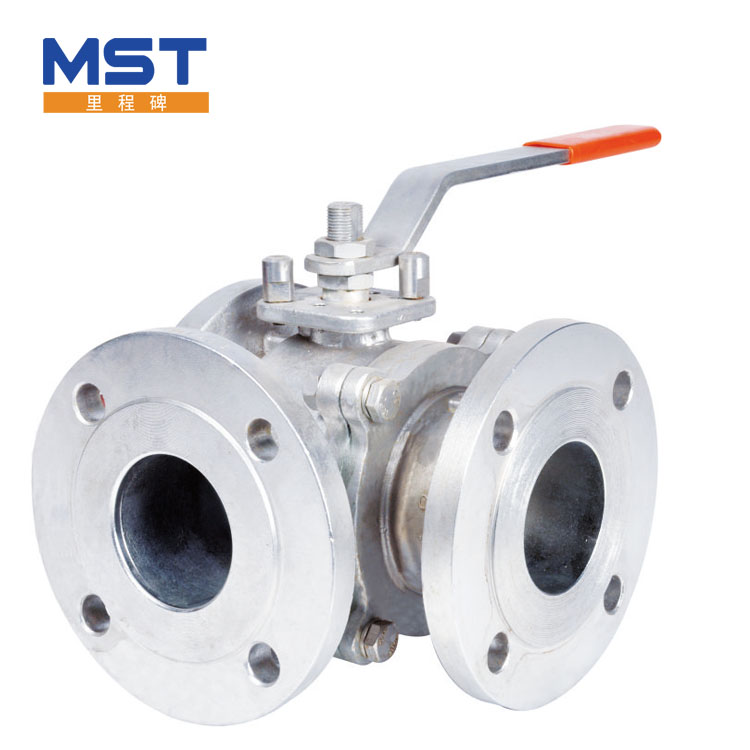

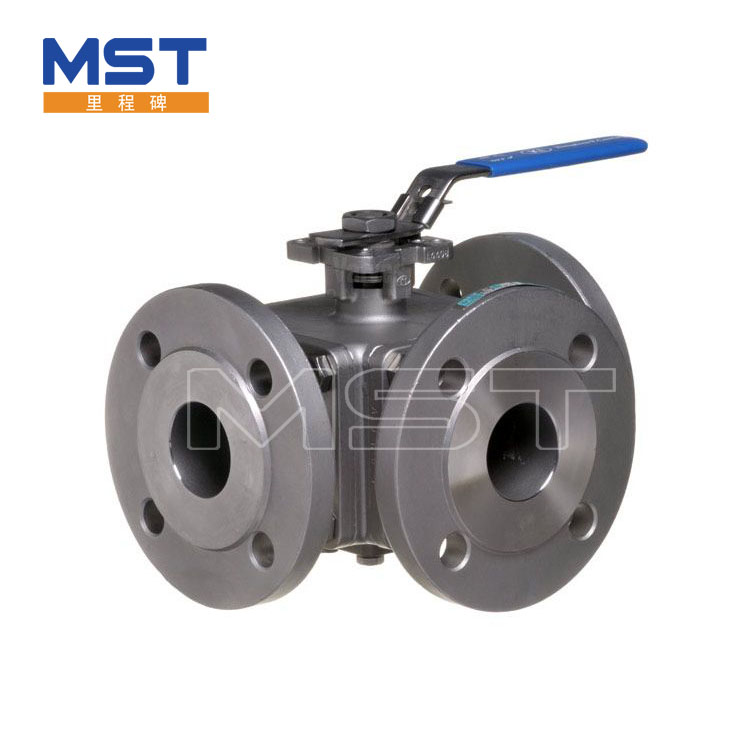

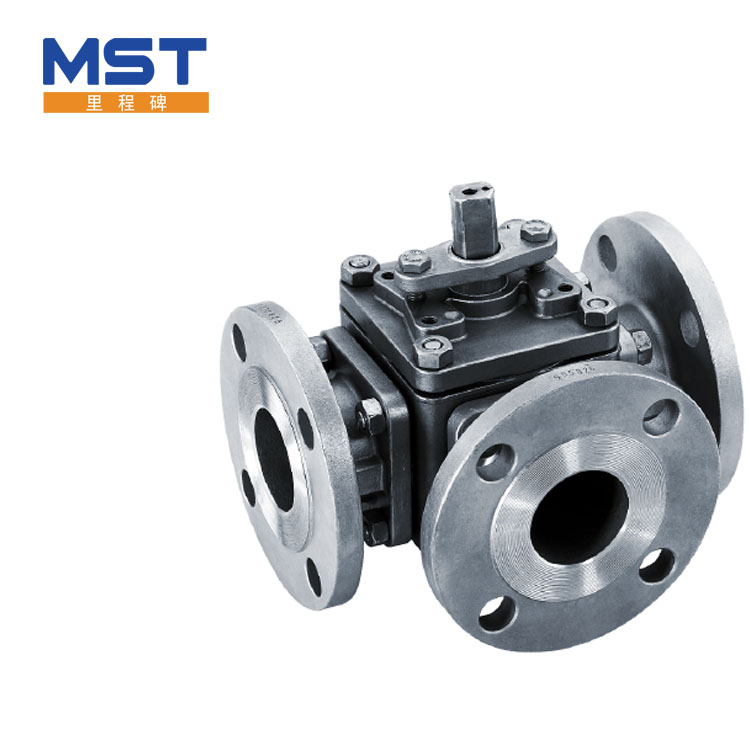

1.Introduction of Three Way Flange Ball Valve
The ball of the three way flange ball valve is divided into L-type and T-type. The actuator drives the ball to rotate through 90 degrees to achieve the control purpose of reversing, or through 180 degrees to achieve the control purpose of reversing and combining. The direct connection between the actuator and the valve body reduces the probability of failure.

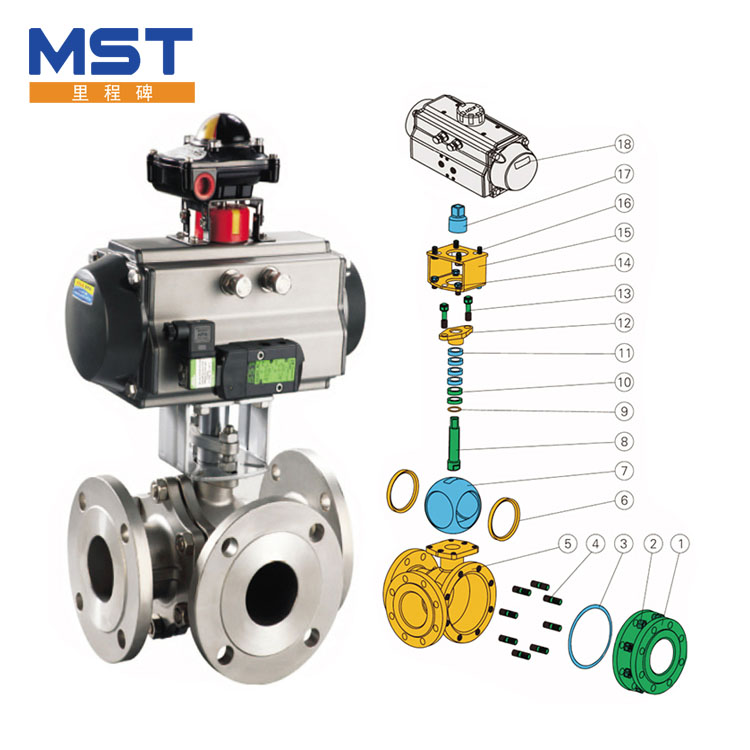

1. The three way flange ball valve adopts the integrated structure and the sealing type of 4-face seat, which has less flange connection, high reliability and lightweight design.
2. Ball core is divided into T-type and L-type, with long service life, large flow capacity and small resistance.

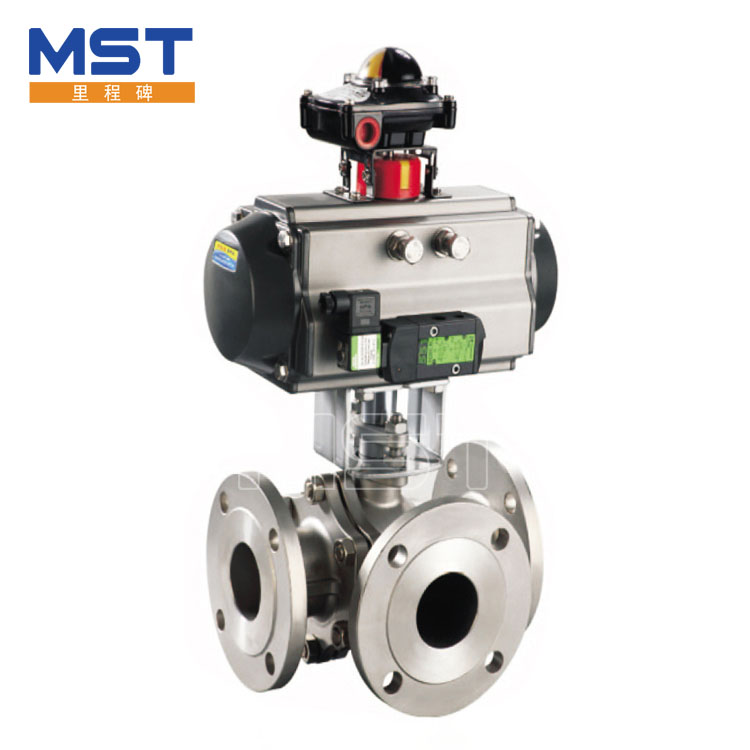

3.The ball valve is divided into single acting and double acting according to the acting type. The
4.characteristic of single acting type is that once the power source fails, the ball valve will be in the state required by the control system.
Type of Valve: Three Way Ball Vallve
DN (mm): DN15~DN300
PN (MPa):1.6~14.0
Design Temperature Range: ≤150℃
Connection type: Flang
Actuator type: Manual dthree way flange ball valverive, Pneumatic,Hydraulic or electric Actuator
Sealing: Metal Hard Seal, Soft seal
Application of
Applicable Medium Drinking water, water supply and drainage, sewage treatment, natural gas and gas
1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
