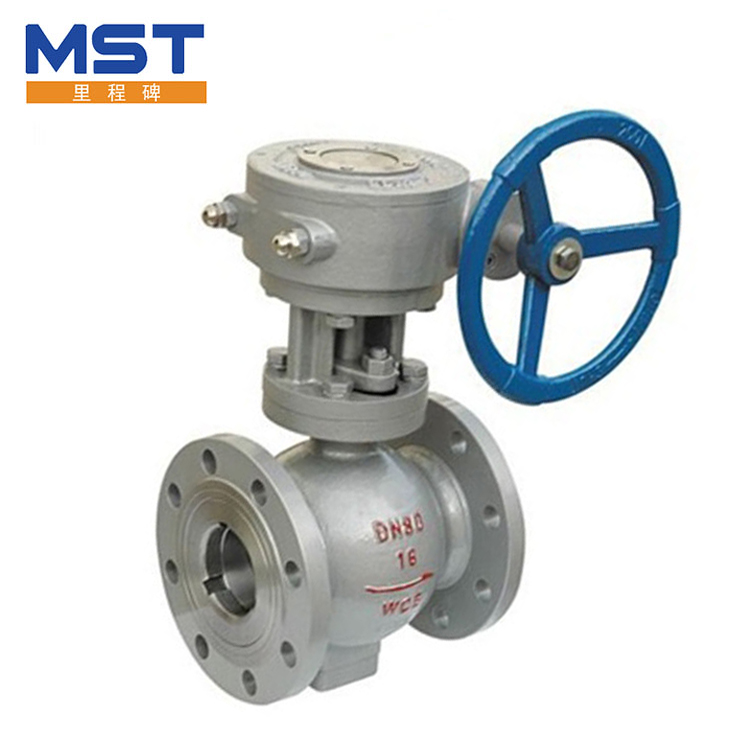

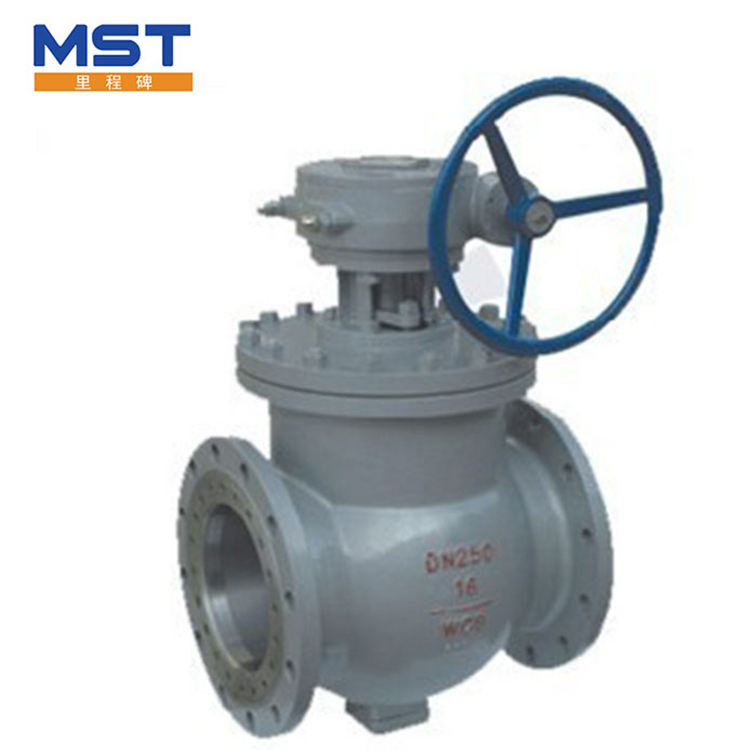

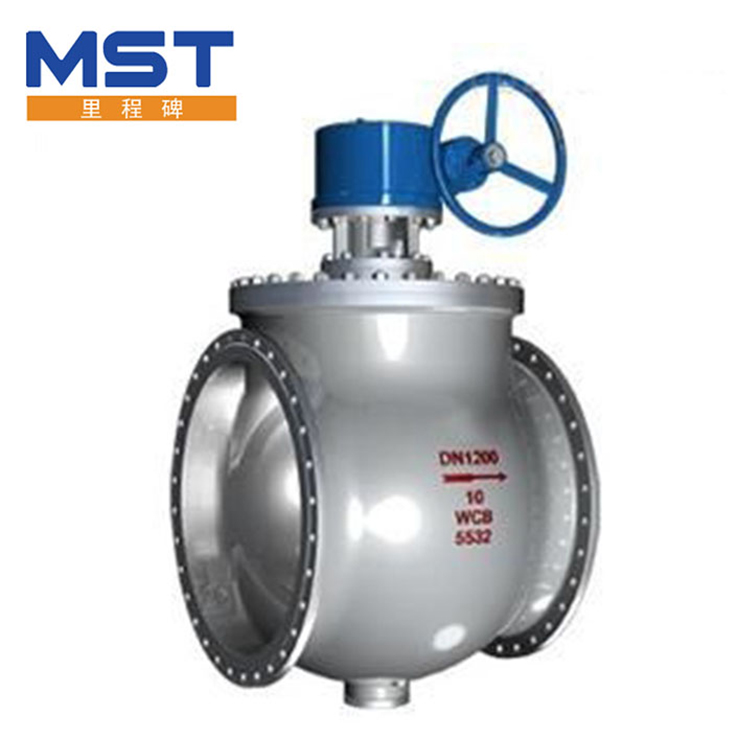

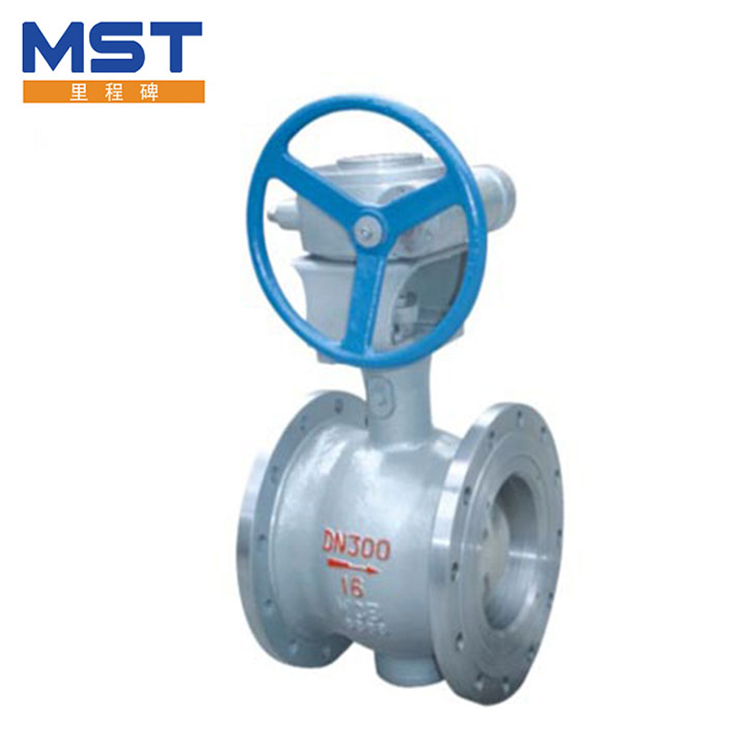

Top Entry Eccentric Ball Valve

The Top Entry Eccentric Ball Valve is designed by metal to metal hard seated and double flanged type. The Top Entry Eccentric Ball Valve is consist of the valve body, eccentric shaft, valve cover, semi-ball, bushings, valve seat, and other parts, it rotates the eccentric shaft by 90 °to open or close the valve to cut off the medium, It is allplied in the sewage and waste water industry, municipal engineering, drinking water engineering, and etc.

Send Inquiry

Product Description

Customized Top Entry Eccentric Ball Valve Manufacturers, Suppliers and Factory with High Quality
1.What is the Top Entry Eccentric Ball Valve

The Top Entry Eccentric Ball Valve is designed by metal to metal hard seated and double flanged type. The Top Entry Eccentric Ball Valve is consist of the valve body, eccentric shaft, valve cover, semi-ball, bushings, valve seat, and other parts, it rotates the eccentric shaft by 90 °to open or close the valve to cut off the medium, It is allplied in the sewage and waste water industry, municipal engineering, drinking water engineering, and etc.


Top Entry Eccentric Ball Valve


2.Features of the Top Entry Eccentric Ball Valve

The Top Entry Eccentric Ball Valve provides many advantages like, simple structure, lightweight, small resistance and torque, tight sealing, easy online maintenance, just open the valve cover and take out the eccentric shaft. The semicircular port has good flow performance and linear regulation performance, and impurities will not be deposited in the valve body cavity. In addition, it has the function of cutting, that is, in the closing of the media can be cut off debris, to ensure the normal opening and closing of the valve.

3.Specification of the Top Entry Eccentric Ball Valve

· Nominal Pressure: CLASS 150~CLASS1500(PN10~PN260)
· Nominal Diameter: 2〞~48〞(DN50~DN1200)
· Working Temperature: -196℃~600℃
· Body Material: Carbon Steel, Stainless Steel, Duplex, Hastelloy, Inconel, Monel, Incoloy, other material optional
· Ball Material: F304, F316, Duplex, Hastelloy, Inconel, Monel, Incoloy, other material optional
· Seat Material: F304, F316, Duplex, Hastelloy, Inconel, Monel, Incoloy, other material optional
· Operating Mode: Manual, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator
