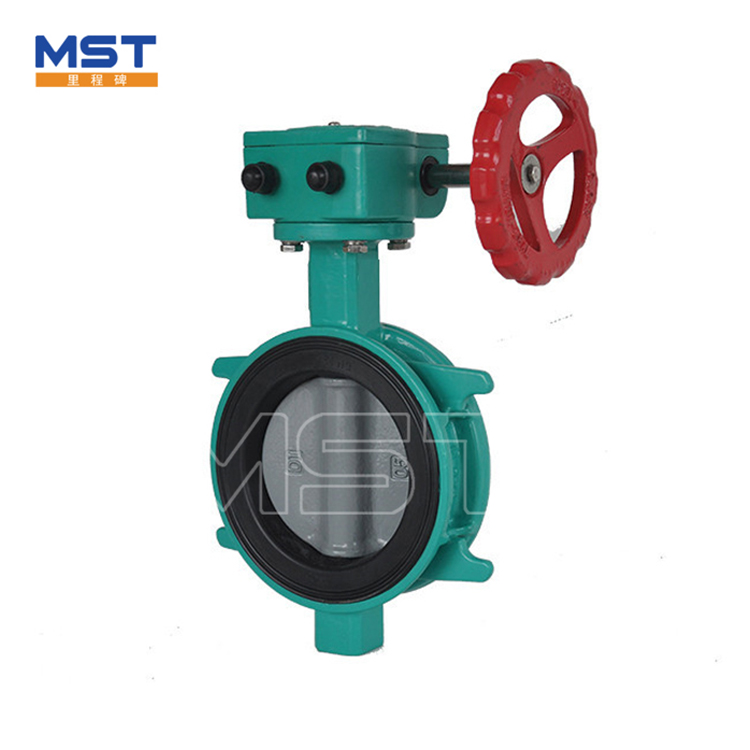

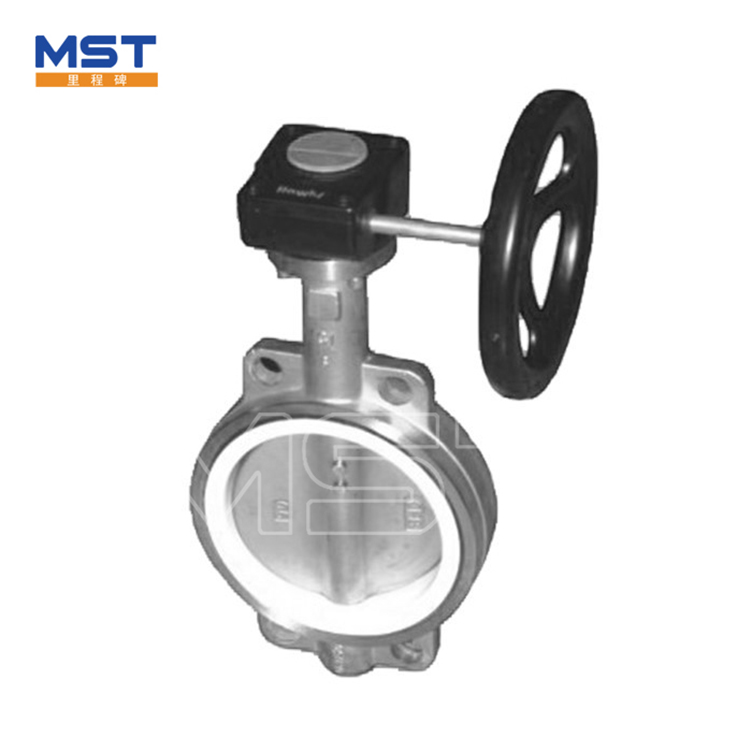

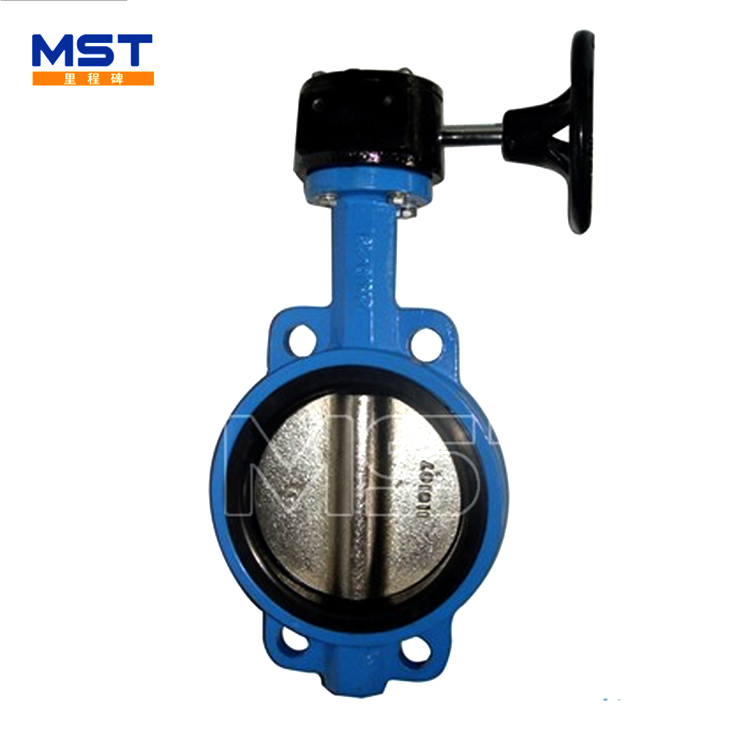

Wafer Style Butterfly Valve with Gear Operator
  • Wafer Style Butterfly Valve with Gear Operator Wafer Style Butterfly Valve with Gear Operator
  • Wafer Style Butterfly Valve with Gear Operator Wafer Style Butterfly Valve with Gear Operator
  • Wafer Style Butterfly Valve with Gear Operator Wafer Style Butterfly Valve with Gear Operator

Wafer Style Butterfly Valve with Gear Operator

This Wafer Style Butterfly Valve with Gear Operator is manufactured with an epoxy coated cast iron body for high strength and corrosion resistance.

Send Inquiry

Product Description

Customized Wafer Style Butterfly Valve with Gear Operator From Our Factory with High Quality in China
1.Introduction of Wafer Style Butterfly Valve with Gear Operator


This Wafer Style Butterfly Valve with Gear Operator is manufactured with an epoxy coated cast iron body for high strength and corrosion resistance. A ductile iron disk is standard, with aluminum bronze or stainless steel available upon request. Tianjin Milestone Pump & Valve Co. Ltd can be customized according to your requirements to provide you with more choices.



2.Product specifications of Wafer Style Butterfly Valve with Gear Operator


Type of Valve
Wafer Style Butterfly Valve with Gear Operator
DN
DN50~DN800
PN(MPa)
0.6~6.4Mpa
Design Temperature Range

-29℃~600℃

Carbon steel:-29℃~425℃
Stainless steel:-196℃~600℃
Connection type
Wafer
Actuator type
Manual drive
Sealing
Metal Hard Seal
Applicable Medium
Water, oil, gas, and various corrosion medium


3.Material of main parts


Spare Parts
Material
Body
Carbon stee,Stainless Steel,chrome molybdenum steel, alloy steel, aluminum bronze
Disc
Carbon stee,Stainless Steel,chrome molybdenum steel, alloy steel, aluminum bronze
Shaft
Cast Iron, Stainless Steel
Seat
Satellite, tungsten, nickel alloy, stainless steel, monel
Stem
Stainless steel, chrome molybdenum steel
Sealing
Stainless steel,resist grind material



4.Features of Wafer Style Butterfly Valve with Gear Operator

1)Operator flange of Wafer Style Butterfly Valve with Gear Operator  conforms to ISO 5211. Designed to work with manual, pneumatic or electric actuators.
2)The rubber seat of Wafer Style Butterfly Valve with Gear Operator  is non-collapsible, stretch resistant, and blowout proof.
3)The precision machined disc ensures low operating torque and effective sealing up to 200 psi. The hydro-dynamically designed disc allows for high capacity flow.
4)One piece shaft design of Wafer Style Butterfly Valve with Gear Operator ensures dependability and positive disc positioning.
5)Wafer Style Butterfly Valve with Gear Operator  are epoxy coated and incorporate “zerk” style grease fittings for easy lubrication on neck & gearbox (if applicable).






5.  FAQ



6.About Tianjin Milestone Pump & Valve Co.,Ltd.




7. Contact Information



The Motorized Butterfly Valve


Hot Tags: Wafer Style Butterfly Valve with Gear Operator, Manufacturers, Suppliers, Factory, Customized, In Stock, Bulk, Free Sample, China, Made In China, Cheap, Low Price, Price, Price List, Quotation, CE, Quality, Durable, One Year Warranty
