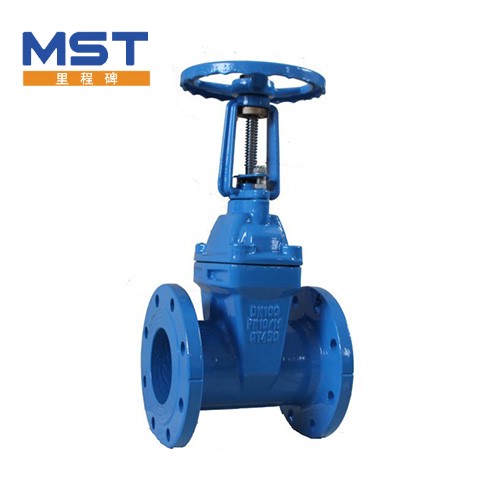

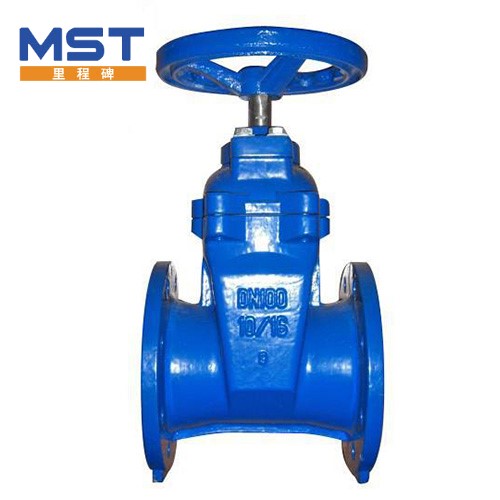

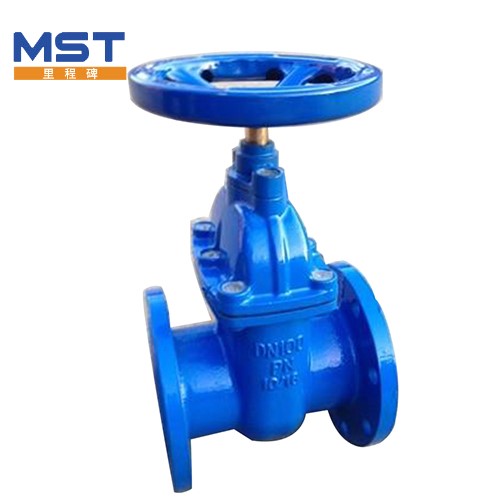

Wedge Gate Valve

The two sealing surfaces of the wedge gate valve are wedge-shaped.The disc of the wedge gate valve is the gate plate. The movement direction of the gate plate is perpendicular to the direction of the fluid. Wedge gate valves are widely used in petrochemical, thermal power plants and other oil products, steam pipeline as connecting or cutting off the intermediate device of the pipeline opening and closing.

Send Inquiry

Product Description

Customized Wedge Gate Valve Manufacturers and Suppliers with Price List
1.Introduction of Wedge Gate Valve

The two sealing surfaces of the wedge gate valve are wedge-shaped.The disc of the wedge gate valve is the gate plate. The movement direction of the gate plate is perpendicular to the direction of the fluid.
Wedge gate valves are widely used in petrochemical, thermal power plants and other oil products, steam pipeline as connecting or cutting off the intermediate device of the pipeline opening and closing.


2. Features of Wedge Gate Valve

Sealing surface is made of stainless steel and hard alloy so the valve has long service life.
The valve uses the flexible graphite packing and reliable sealing reliable.
It adopts the drive model of manual, pneumatic, electric and gear.


3. Technical Data of Wedge Gate Valve

Nominal Pressure(Mpa)
Housing
Test Pressure(Mpa)
Back Seat
Liquid
Gas
1.6 2.4 1.8 0.6 1.8
2.5 3.8 2.8 0.6 2.8
4.0 6.0 4.4 0.6 4.4
6.4 9.6 7.0 0.6 7.0
10.0 15.0 11.0 0.6 11.0
16.0 24.0 18.0 0.6 18.0


4.Factory

Wedge Gate Valve


5. Packaging and Delivery


6. FAQ

1. Can i have a sample order for valve ?
A: Yes, we welcome sample order to test and check the quality, Mixed sample are accepted.
2. Do you have any MOQ limit for valve order ?
A: Low MOQ, 1 PC for sample checking is avaible.
3. Could you offer OEM service ?
A: Yes, OEM is availble.
4. How about the payment ?
A: We normally accept 30% deposit, and balance will be paid before shipping. L7C is OK
5. Whafs the delivery time of your butterfly valves?
A: For most of the sizes,DN50-DN600,we have stock of valve parts,it*s possible to deliver in 1-3 weeks,to nearest seaport Tianjin.
6. Whafs the warranty of your products?
A:We normally offer 12 months of warranty in service or 18 months since shipping date.
7. What is your products standardization?
A: GB/T12238-2008, JBfT 8527-1997, API 609,EN 593-1998, DIN 85003-3-1997
