Y-Type Strainer

China Y-Type Strainer Manufacturers and Suppliers with the Best Price In Stock

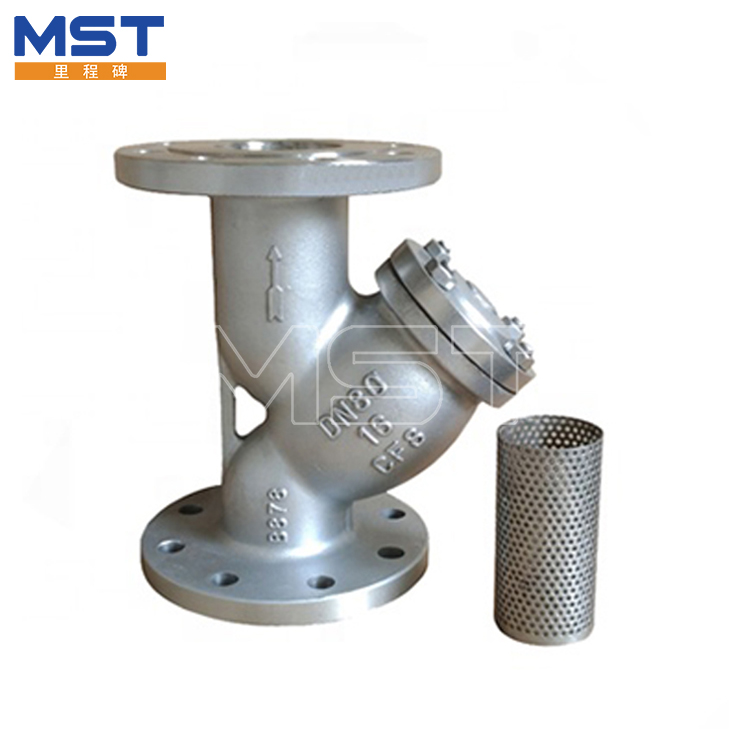

1.Introduction of Y-Type Strainer

Y-type strainer is an indispensable filter device for pipeline system of medium transportation. Y-type trainer is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment, which is used to remove impurities in the medium to avoid damage valves and equipment and protect them for normal operation.

2.How Does Y-Type Strainer Work?

Y-type strainerr is a small equipment to remove a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable filter cartridge and reload it after treatment.

3.Technical Date of Y-Type Strainer

Item No.	Temperature range	-80~450 different material with different working temperature
1	PN（MPa）	1.6~10
2	Filtration accuracy（mesh/in）	10~300
3	Working medium	Water,Oil,Gas, steam
4	Strength testing pressure:	PT1.5PN

4.Material of Y-Type Strainer

Item No.	Parts	Material
1	Body	Cast steel, Stainless steel, Brass
2	Screen cover	Cast steel, Stainless steel, Brass
3	Filter net	Stainless steel
4	Sealing	Flexible graphite, PTFE

5.Size of Y-Type Strainer

Size	d	D	D1	D2	t
DN15	15	95	65	45	2
DN20	20	105	75	55	2
DN25	25	115	85	65	2
DN32	32	140	100	78	2
DN40	38	150	110	85	3
DN50	50	165	125	100	3
DN65	64	185	145	120	3
DN80	76	200	160	135	3
DN100	100	220	180	155	3
DN125	125	250	210	185	3
DN150	150	285	240	210	3
DN200	200	340	295	265	3
DN250	250	405	355	320	3
DN300	300	460	410	375	4
DN350	350	520	470	435	4
DN400	400	580	525	485	4

6.How to Install the Y-Type Strainer

• Steam or gas pipeline: the filter screen is in the horizontal direction;
• Liquid pipeline: the filter screen is installed downward;
• Vertical installation: according to the filter installation direction

7.How to Choose the Right Y-Type Strainer

Please check the following product parameters with our sales personnel.

• Product name and model
• Valve diameter
• Pipe pressure used by valve
• Main material of valve
• service temperature

8.About MST

9.Welcome to Contact Us

Welcome to vist our website about more valve, and please feel free to contact us if you have any questions.
