Customized Bellows Globe Valves Manufacturers, Suppliers and Factory with Low Price

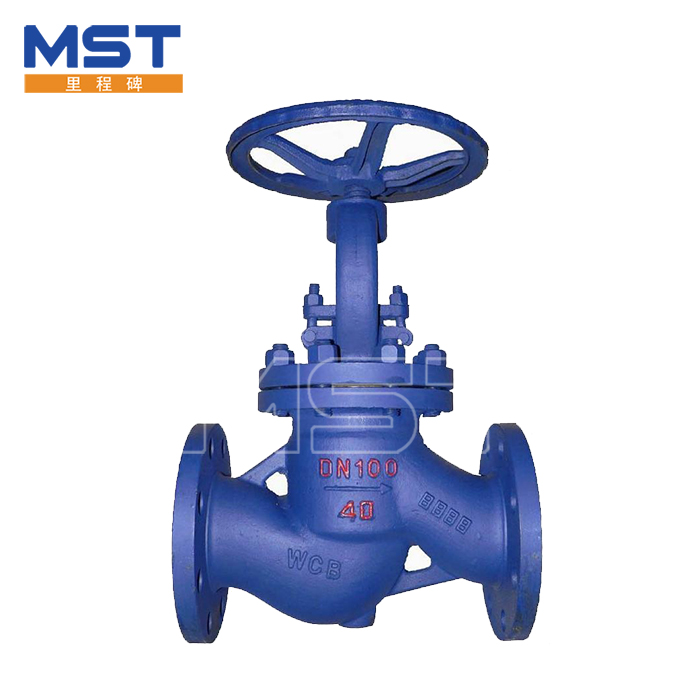

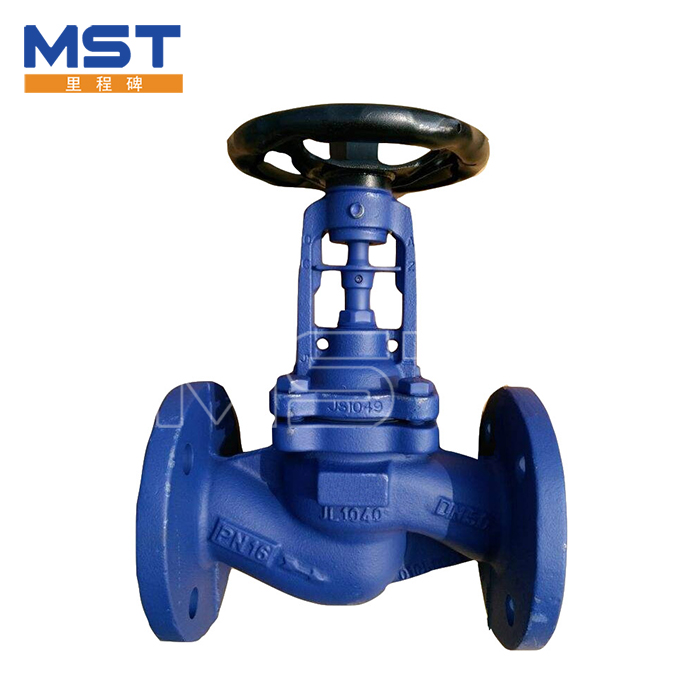

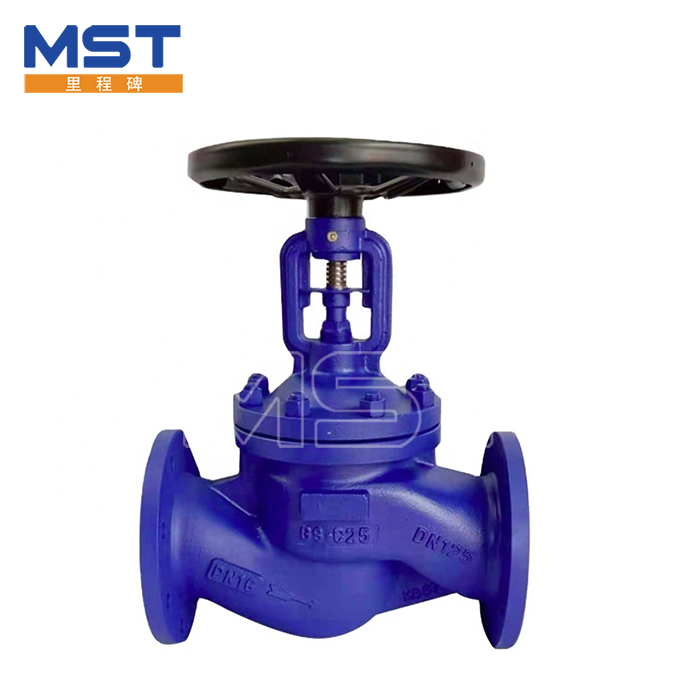

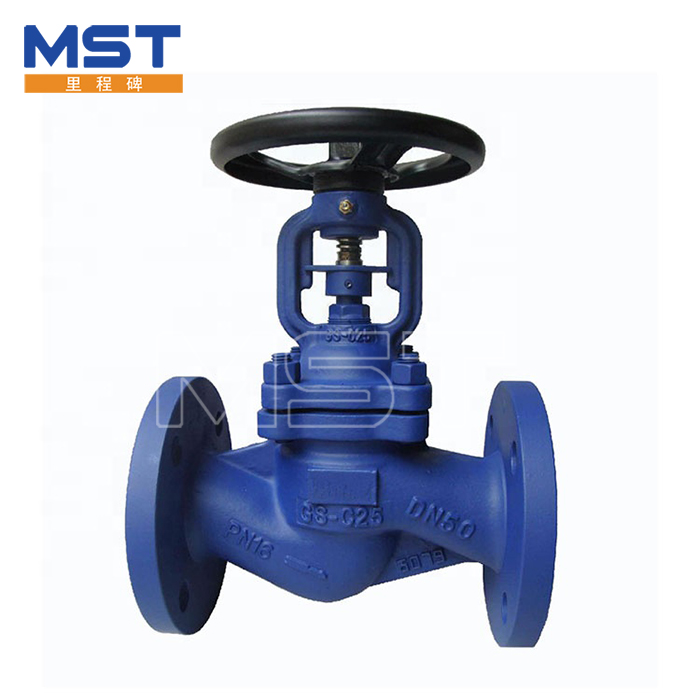

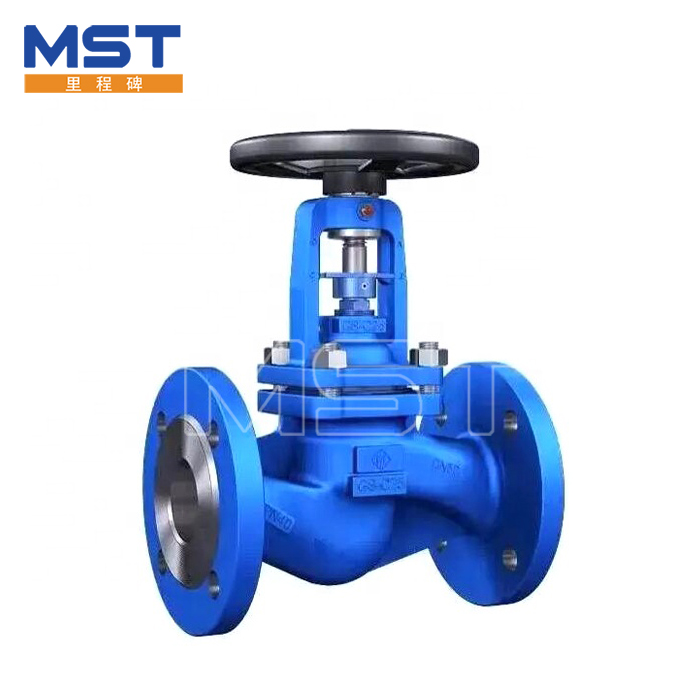

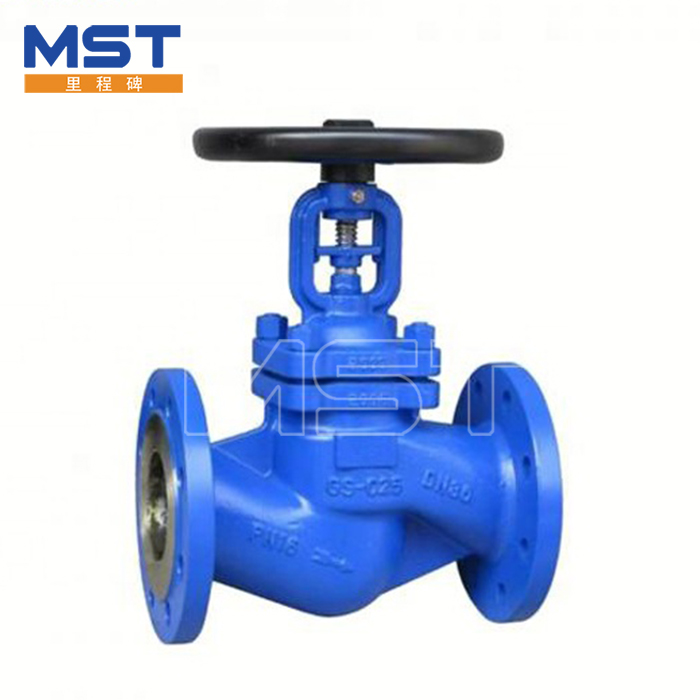

1.Introduction of Bellows Globe Valves
Bellow globe valve is one of globe valve, it has a range of application, it has the functions of cutting off, regulating and throttling.
2.Structure of Bellows Globe Valves
The inside of the bellows globe valve is a bellows structure. One end of the stainless steel bellows is welded on the valve stem to prevent the medium from etching the valve stem. The other end of the bellows is placed between the valve body and the valve cover to form a static seal.
The bellows globe valve adopts double sealing design, which can avoid leakage of valve stem packing in case of bellows failure. Bellows welded to the rod can protect the stable operation performance of the valve.
3.Technical Datasheet of Bellows Globe Valves
Product |
Bellow globe valve |
DN |
DN50~DN400 |
PN |
1.6MPa~16MPa |
Connection |
Flange,welded, thread |
Operation |
Manaul |
Temperature |
≤540℃ |
Standards
Manufacture standard
DIN3356
Flange standar
DIN 2543-2545
Face to face length
DIN 3202
Welded
DIN 3239
Testing standard
DIN 3230
5.Feature of Bellows Globe Valves
(1) Reasonable product structure, reliable sealing performance and beautiful appearance;
(2) Bellows stop valve has corrosion resistance, friction resistance and long service life;
(3) The valve rod is subject to quenching and tempering and surface nitriding treatment, with good corrosion and friction resistance;
(4) Double seal.
(5) Convenient maintenance
(6) Valve rod lifting position indication, more intuitive
6.About Milestone Valve Co., Ltd.
Tianjin Milestone Valve Co., Ltd is a professional factory to produce butterfly valve, water gate valve and check valve.
MST is located in Tianjin City, China, near the Tianjin Port, that’s very convenient to delivery the products to the port.
All the staff in MST is well educated and trained, we can supply professional service to our customer.
