Electric Globe Valve

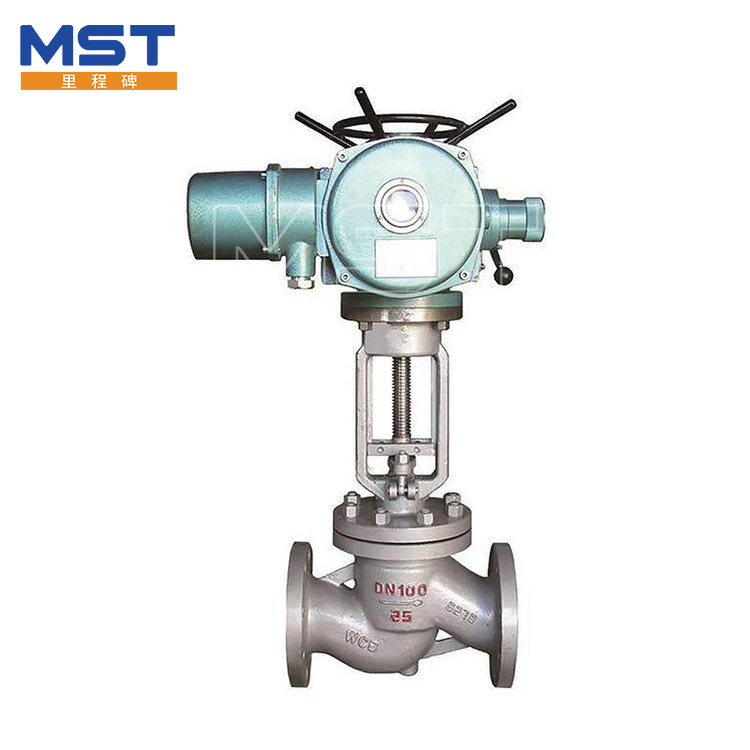

The electric globe valve is composed of an electric actuator and a gate valve. The torque is applied to the valve rod through the electric actuator, and then the valve rod drives the valve disc to move up and down, so that the sealing surface of the valve disc and the sealing surface of the valve seat fit closely to stop the medium flow.

Send Inquiry

Product Description

Buy High Quality Electric Globe Valve which Can be Customized From Our Factory in China
1.Introduction of Electric Globe Valve

Electric globe valve is a kind of globe valve, which plays the role of connecting and cutting off medium in the pipeline. It is an important cut-off valve.

The electric globe valve is composed of an electric actuator and a gate valve. The torque is applied to the valve rod through the electric actuator, and then the valve rod drives the valve disc to move up and down, so that the sealing surface of the valve disc and the sealing surface of the valve seat fit closely to stop the medium flow.

2.Technical Datasheet of Electric Globe Valve

Pressure（class）		150LB～2500LB
Working temperaure（℃）		≤425		≤150
Working medium		Water, steam, oil		Weakly corrosive medium
Material	Bodya&Cover	Carbon steel		Chromium nickel titanium stainless steel
	Stem	Chrome stainless steel		Chromium nickel titanium stainless steel
	Sealing	Surfacing iron base alloy	Surfacing hard base alloy	Carbon steel
	Packing	Flexible graphite+ PTFE

3.Size of Electric Globe Valve

DN	L	D	D1	D2	b	Z-Φd	H	D0
150Lb
15	108	90	60.5	35	10	4-15	241	125
20	117	100	70	43	11	4-15	241	125
25	127	110	79.5	51	12	4-15	242	125
32	140	120	89	63	13	4-15	280	160
40	165	130	98.5	73	15	4-15	286	160
50	203	150	120.5	92	16	4-19	368	200
65	216	180	139.5	105	18	4-19	387	200
80	241	190	152.5	127	19	4-19	411	250
100	292	230	190.5	157	24	8-19	454	250
125	356	255	216	186	24	8-22	455	355
150	406	280	241.5	216	26	8-22	541	355
200	495	345	298.5	270	29	8-22	651	450
250	622	405	362	324	31	12-25	800	450
300	698	485	432	381	32	12-25	1231	500
350	787	535	476.5	413	35	12-29	1450	600
400	914	595	534.5	470	37	16-29	1645	600
450	--	635	577.5	533	40	16-32	--	610

4.Standards of Electric Globe Valve

Design standard BS 1873 JIS B2071-2081

Structural length ANSI B16.10, JISB2002

Piping flange ANSI B16.5, JIS B2212-2214

Butt weld end size ANSI B16.25

Inspection and test API598, JIS b2003

5.Feature of Electric Globe Valve

The utility model has the advantages of simple structure and convenient manufacture and maintenance

Small working stroke and short opening and closing time

Good sealing performance, small friction between sealing surfaces and long service life

There are various connection modes, including flange connection, welding connection and thread connection,

The surface is sprayed with epoxy resin coating to prevent corrosion.

6.Application of Electric Globe Valve
