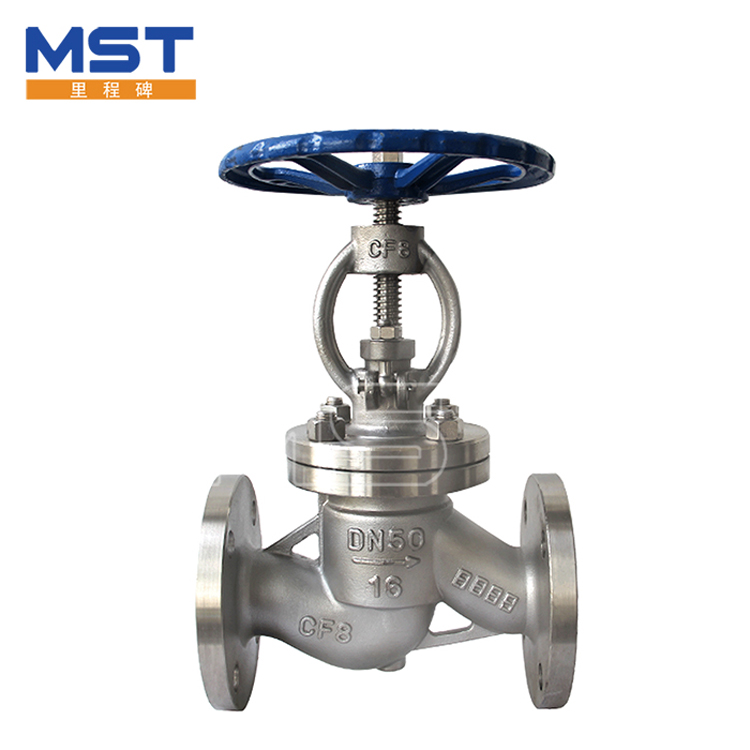

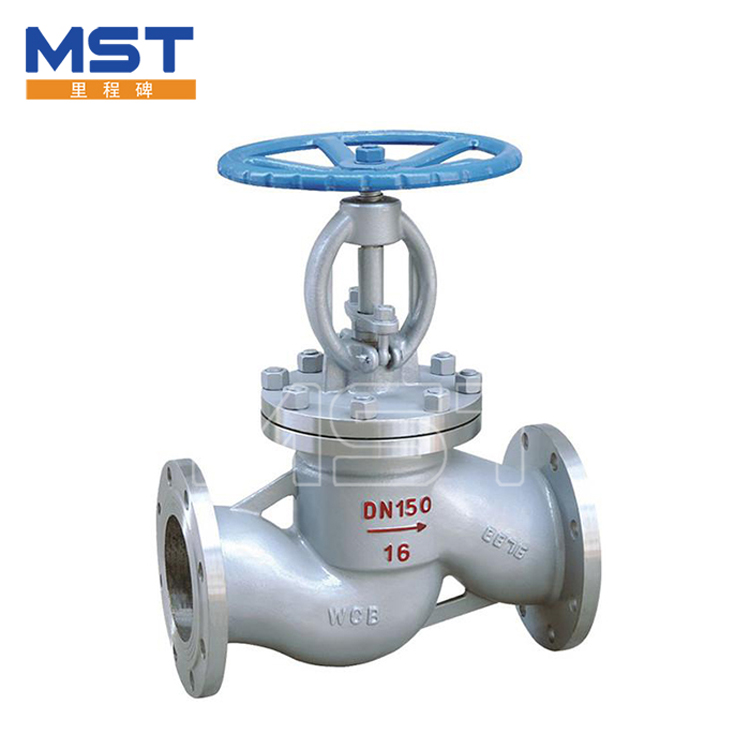

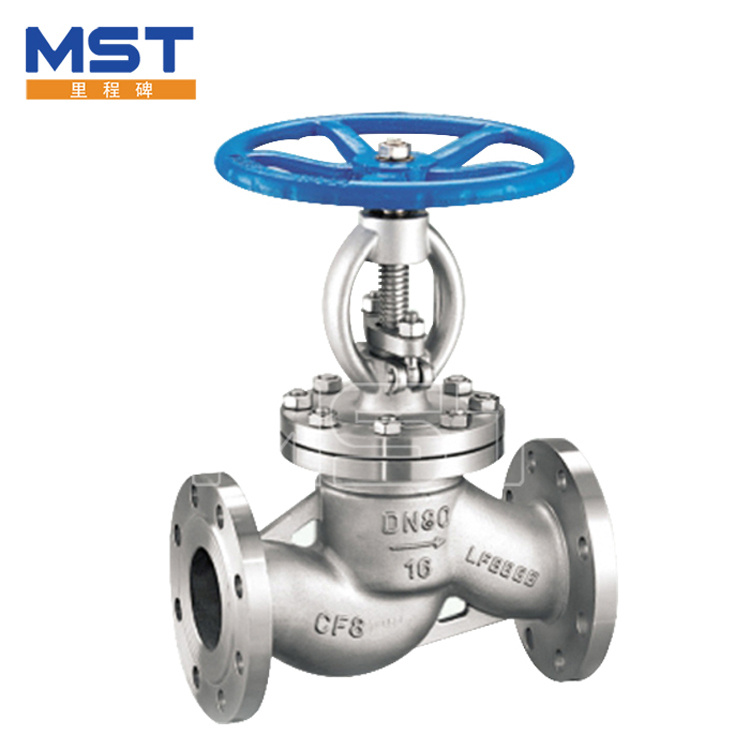

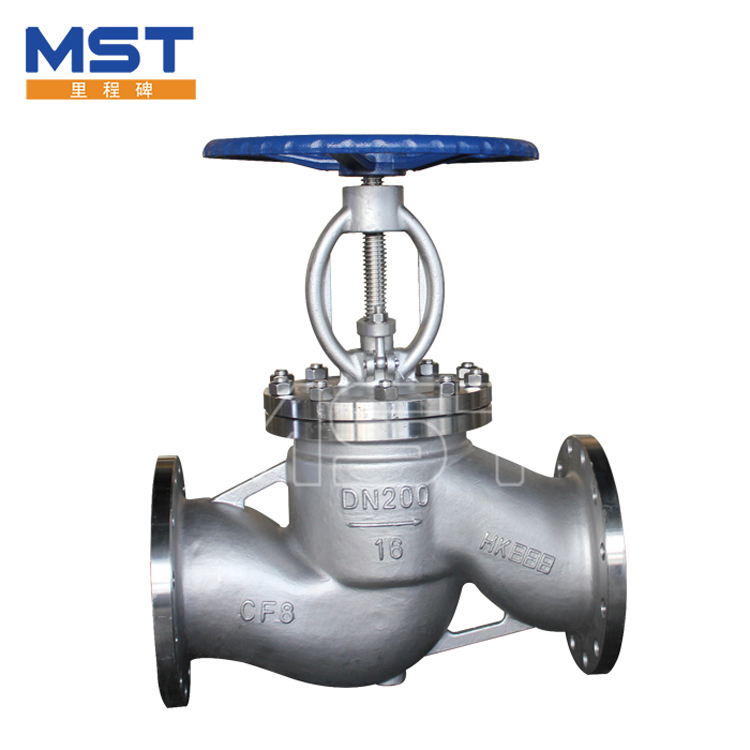

Stainless Steel Flange Globe Valve

Stainless steel flange globe valve is a kind of globe valve, and the valve body is made of stainless steel. The stem of the stainless steel stop valve is perpendicular to the sealing surface of the valve seat. The stem drives the valve disc to rise and fall to the opening and closing valve.

Send Inquiry

Product Description

Buy Stainless Steel Flange Globe Valve which Can be Customized From Our Factory with Price
1.Introduction of Stainless Steel Flange Globe Valve

Stainless steel globe valve is a kind of globe valve, and the valve body is made of stainless steel. The stem of the stainless steel stop valve is perpendicular to the sealing surface of the valve seat. The stem drives the valve disc to rise and fall to the opening and closing valve.

Stainless Steel Flange Globe Valve

Stainless Steel Flange Globe Valve

2.Charactersitic of Stainless Steel Flange Globe Valve


  • Nominal diameter: DN15 ~ 400mm
  • Nominal pressure: PN1.6 ~ 16.0mpa
  • Applicable temperature: ≤ 200 ℃ ~ ≤ 350 ℃
  • Driving mode: manual, gear, electric
  • Design and manufacturing: GB12235
  • Structure length: GB12221
  • Flange size: GB9113
  • Pressure temperature: GB9131
  • Test inspection: GB / T13927 GB/ T9092
Stainless Steel Flange Globe Valve



3.Testing of Stainless Steel Flange Globe Valve

PN
Testing pressure
Working temperature
Strenght
Seaing
1.5 2.4 1.8 ≤200
2.5 3.8 2.8 ≤200
4 6 4.4 ≤200
6.4 9.6 7 ≤200


4.Material of Stainless Steel Flange Globe Valve

Spare parts
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
WCB
Body/Cover
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
WCB
Disc
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
1Cr13
Stem
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
1Cr13
Packing
PTFT PTFE
PTFE
PTFE
Graphite
Gasket
304+PTFE 304L+PTFE
316+PTFE
316L+PTFE
Graphite+PTFE
Gland
ZG1Cr18Ni9Ti
ZG00Cr18Ni10
ZG1Cr18Ni12Mo2Ti
ZG00Cr17Ni14Mo2
WCB


5.Advantages of Stainless Steel Flange Globe Valve

Once the stainless steel globe valve is in the open state, there is no contact between its valve seat and the sealing surface of the valve disc, so its sealing surface has less mechanical wear.
Because most of the valve seats and valve discs of the globe valve are easy to repair or replace the sealing elements, there is no need to remove the whole valve from the pipeline, which is very suitable for the occasion where the valve and pipeline are welded into one.

Stainless Steel Flange Globe Valve



6.Application of Stainless Steel Flange Globe Valve

According to the customers’ requirements, we can choose the suitable material, and the stainless steel globe valve can be use for Nitric acid, acetic acid, water, oil, gas and corrosive liquid.

Stainless Steel Flange Globe Valve


7.About Milestone Valve Co., Ltd.

Tianjin Milestone Valve Co., Ltd is a professional factory to produce butterfly valve, water gate valve and check valve.
MST is located in Tianjin City, China, near the Tianjin Port, that’s very convenient to delivery the products to the port.
All the staff in MST is well educated and trained, we can supply professional service to our customer.

Stainless Steel Flange Globe Valve
